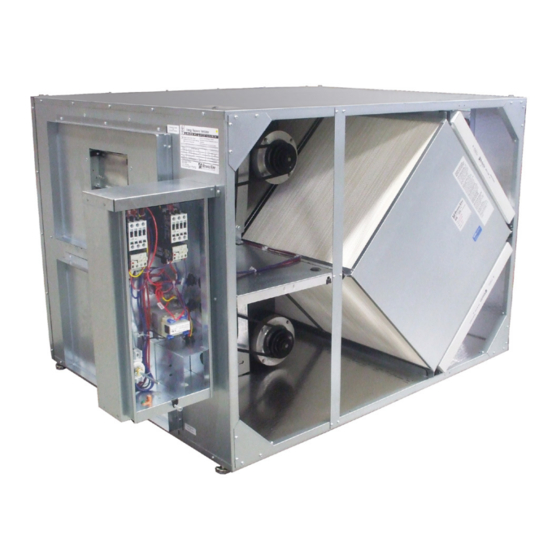

- Page 1 HE SERIES ERV Installation, Operation and Maintenance Manual HE2XINH HE2XINV HE-2XINH Shown HE-2XINV Shown...
- Page 2 HE-Series Indoor WARNING CAUTION ARC FLASH AND ELECTRIC SHOCK HAZARD RISK OF CONTACT WITH HIGH SPEED MOVING PARTS Arc flash and electric shock hazard. Disconnect all electric Disconnect all local and remote power supplies, verify with power supplies, verify with a voltmeter that electric power is a voltmeter that electric power is off and all fan blades have off and wear protective equipment per NFPA 70E before work- stopped rotating before working on the unit.
- Page 3 In the unlikely event that factory assistance is ever required, information located on the unit label will be needed. NOTE: This page Locate the RenewAire unit label found on the outside of the unit. is to be completed NOTE: This information is for purposes of identifying the unit-specific option data from the by the installing Option Code.
- Page 4 18.5 4.6-4.8 20.6 208-230 Three 4.6-4.8 10.8 4.6-4.8 11.9 Three Three Single 20.0 45.0 208-230 Single 10.8-10.0 24.3 6.6-5.8 28.3 208-230 Three 6.6-5.8 14.9 6.6-5.8 16.3 Three Three Specifi cations may be subject to change without notice. RENEWAIRE.COM 1.800.627.4499 1.800.627.4499...
- Page 5 FOR THE MOST COMPLETE AND CURRENT INFORMATION VISIT RENEWAIRE.COM 1.800.627.4499...
- Page 6 18.5 4.6-4.8 20.6 208-230 Three 4.6-4.8 10.8 4.6-4.8 11.9 Three Three Single 20.0 45.0 208-230 Single 10.8-10.0 24.3 6.6-5.8 28.3 208-230 Three 6.6-5.8 14.9 6.6-5.8 16.3 Three Three Specifi cations may be subject to change without notice. RENEWAIRE.COM 1.800.627.4499 1.800.627.4499...
- Page 7 FOR THE MOST COMPLETE AND CURRENT INFORMATION VISIT RENEWAIRE.COM 1.800.627.4499...
-
Page 8: Table Of Contents
TABLE OF CONTENTS HE-Series Indoor 1.0 OVERVIEW 5.6 EXTERNAL LOW VOLTAGE CONTROL WIRING CONNECTIONS ............22 1.1 DESCRIPTION ............11 5.6.1 Single 2 - Wire Control, Unpowered ........22 5.6.2 Single 2 - Wire Control, Separate Power ......22 1.2 AIRFLOW ..............11 5.6.3 Control Sending 24 VAC “ON” Signal .........22 1.2.1 Airflow in HE2XINH ............12 5.6.4 External Control Using ERV Power Supply ......23 1.2.2 Airflow in HE2XINV ............12... - Page 9 TABLE OF CONTENTS HE-Series Indoor 7.8 SERVICE PARTS ........... 33 7.8.1 HE2XINH Service Parts ............. 33 7.8.2 HE2XINV Service Parts ............ 34 8.0 TROUBLESHOOTING 9.0 FACTORY ASSISTANCE TABLE OF ILLUSTRATIONS Figure 1.2.0 HE2XIN Airflow Orientations ........12 Figure 2.4.0 E-Box With Motor Starters ........13 Figure 3.2.0 HE2XINH Weights and COG ........
- Page 10 CONFIGURATION CODE HE-Series Indoor CONFIGURATION CODE H E - 2 X MODEL NUMBER DIGIT NUMBER Digit 9: Digit 19: Orientation Unit Control (see Restriction 4) "V", "H" "A" = Standard Unit Control Wiring "V" = Onboard VFD Both Airstreams Digit 11: Wall Type "S"...
-
Page 11: Description
VFDs, a RenewAire Commercial Controller or by a BMS. There are a number of different control devices available to control the operation or speed of the unit fans. For further information on available control accessories, see the HE RenewAire catalog. -
Page 12: Airflow In He2Xinh
OVERVIEW HEIN except 6x 8x, LEIN HEIN except 6x 8x, LE_IN HE-Series Indoor MODEL DESCRIPTION OF DUCT CONNECTION CONFIGURATION HE2XINH Room Air [RA] and Outside Air [OA] enter on the same side of the unit. HE2XINV Room Air [RA] and Outside Air [OA] enter on opposite sides of the unit. FIGURE 1.2.0 AIRFLOW ORIENTATIONS 2.0 COMPONENT DESCRIPTIONS 2.1 CABINET... -
Page 13: E-Box
Any discovered shipping damage should be immediately reported to the RenewAire sales rep and the damage must be recorded on the Bill Of Lading, prior to signing for acceptance of the shipment. -
Page 14: Unit Weights And Dimensions
Center of gravity: From Left A = 23", From Front B = 20" (+/- 2") FIGURE 3.2.0 HE2XINH WEIGHTS AND COG HE2XH Corner Weights 4/22/09 MF Scale: 1" = 24" SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE. Do not scale drawing MAY18 MHK 1/2/19 MHZ 8/26/19 KMC RenewAire LLC HE2XH_CORNER_WEIGHTS_MAR20.dwg MAR20 KMC 1.800.627.4499... -
Page 15: He2Xinv Hoisting Weights And Cog
TO CHANGE WITHOUT NOTICE. Do not scale drawing observed, take digital pictures and report the damage to your RenewAire rep. Note the damage MAY18 MHK on the carrier’s Bill of Lading. Depending on expected transport and storage conditions, the unit... -
Page 16: Service Clearances
Section 4.2 of this manual. In addition, if the optional Bypass Economizer is ordered, additional clearance will be required for the extra bypass duct. See the RenewAire Supplemental Manual for Bypass or further information and clearance details specific to the HE2XIN units. -
Page 17: Radiated Noise
INSTALLATION HE-Series Indoor 4.3.3 Radiated Noise The HE2XIN is insulated with high-density fiberglass. This provides significant attenuation of radiated sound. The outlet ducts can be significant sources of radiated sound as well. The FA and EA ducts (outlet ducts) should be insulated for sound control. This insulation should start at the unit. At a minimum the first ten feet of duct should be insulated. -
Page 18: Electrical Requirements
INSTALLATION HE-Series Indoor 5.4 ELECTRICAL REQUIREMENTS WARNING ARC FLASH AND ELECTRIC SHOCK HAZARD Arc flash and electric shock hazard. Disconnect all electric power supplies, verify with a voltmeter that electric power is off and wear protective equipment per NFPA 70E before working within electric control enclosure. -
Page 19: Low Voltage Control System
INSTALLATION HE-Series Indoor 5.4.2 Low Voltage Control System NOTICE This ERV is provided with a Class II 24 VAC power supply system that operates the unit’s If primary-side voltage contactor(s) for HE2XIN. The ERV’s 24 VAC Power Supply can also be used to power the is 230 VAC, move black externally-installed controls system: up to 8VA of power is available. -
Page 20: Electric Wiring Schematic
HE-Series Indoor 5.5 WIRING SCHEMATICS FIGURE 5.5.0 GENERIC SINGLE-PHASE WIRING SCHEMATIC 1.800.627.4499... - Page 21 HE-Series Indoor FIGURE 5.5.1 GENERIC THREE-PHASE WIRING SCHEMATIC 1.800.627.4499...
-
Page 22: Connections
INSTALLATION HE-Series Indoor 5.6 EXTERNAL CONTROL CONNECTIONS 5.6.1 Single 2-Wire Control, Unpowered NOTE: The sim- See Figure 5.6.0 if the control requires no power from the ERV and acts as a simple ON/OFF plified schematics switch. The control must not supply any power to the ERV. below show only the relevant portions of Install jumper (provided) between terminals 2 and 3. -
Page 23: External Control Using Erv Power Supply
INSTALLATION HE-Series Indoor AN EXTERNAL CONTROL USING UNIT'S UNIT INTERNAL CONTROL WIRING 24VAC POWER SUPPLY (SIMPLIFIED) 24VAC Available at Terminals 1 & 2 Unit's 24VAC Power Supply Connect Terminals 2 & 3 Isolation Relay Coil (Fresh Air) Isolation Relay Coil (Exhaust Air) Connect Terminals 4 &... -
Page 24: Quick-Start For Testing Correct 3Ph Wiring
INSTALLATION HE-Series Indoor 5.7 QUICK-START FOR TESTING CORRECT 3PH WIRING All units that run on 3 phase power should be test-run immediately after high voltage wiring connections are made. This will verify that the three phases are properly connected, that the dampers will open and close properly and the fans are working properly. -
Page 25: Unit Startup
OPERATION HE-Series Indoor 6.3 UNIT STARTUP 6.3.1 Fixed-Speed Units Most fixed-speed units do not have any external controlling signals and only require turning on the disconnect switch, located on the E-Box. When the disconnect switch is turned ON, any dampers will first move into their correct operating positions and then power is suppled to the motor contactors, causing the fans to run. -
Page 26: All Fixed-Speed Units
FIGURE 6.4.0 HE2XINH PRESSURE PORT LOCATIONS FIGURE 6.4.1 HE2XINV PRESSURE PORT LOCATIONS NOTE: Clean filter DIFFERENTIAL STATIC ACROSS CORE DSP VS. CFM www.renewaire.com (800) 627- 4499 support@renewaire.com www.renewaire.com (800) 627- 4499 support@renewaire.com... -
Page 27: Filter Pressure Drop
OPERATION HE-Series Indoor Initial Pressure Drop of MERV 8 Filters 6.4.2 Filter Pressure Drop supplied with this unit (2)20x20x2 MERV 13 (IOM) 1000 1500 2000 Unit Airflow (CFM) FIGURE 6.4.2 INITIAL PRESSURE DROP OF MERV 8 FILTERS, SUPPLIED WITH THIS UNIT Initial Pressure Drop of MERV 13 Filters (available option) 1000... -
Page 28: Sheave Adjustment
OPERATION HE-Series Indoor 6.4.3 Sheave Adjustment All fan motors that are not controlled by a VFD are equipped with an adjustable sheave. These adjustable sheaves must be re-set in the field to attain optimum performance of the ERV. This adjustment is to be done after all ductwork is connected. Adjustable sheaves are held in position on the drive motor shaft by a set screw that is normally hidden until the belt(s) is removed. -
Page 29: Maintenance
HE-Series Indoor 7.0 UNIT MAINTENANCE WARNING RenewAire ERVs are built to operate with minimal maintenance. After unit commissioning, the Danger of injury if unit primary areas of attention are the air filters, periodic lubrication of the fan motors and annual starts unexpectedly. -
Page 30: Sheave Condition
Do not install new belts on worn sheaves. If the sheaves have grooves worn in them, they must be replaced before new belts are installed. 7.5.3 Motor Cleanliness Removing dust and grease buildup on the motor housing assists proper cooling. Never wash-down www.renewaire.com the motor with high pressure spray. (800) 627- 4499 support@renewaire.com 7.5.4 Motor Lubrication... -
Page 31: Enthalpic Core Removal
MAINTENANCE HE-Series Indoor To access enthalpic cores for cleaning, remove the air filters. To clean enthalpic cores, all exposed surfaces must be vacuumed with an attachment having long, soft bristles. The greatest buildup of dirt and dust will normally be on the leading 1–2 inches of the inlet side (closest to the air filters). -
Page 32: Maintenance Records
MAINTENANCE HE-Series Indoor 7.7 MAINTENANCE RECORDS MAINTENANCE LOG ENTER DATES OF SERVICE OA FILTER RA FILTER INSPECTION/ CLEAN CLEAN INITIALS CHANGE CHANGE CLEANING CORE BLOWERS 1.800.627.4499... - Page 33 MAINTENANCE HE-Series Indoor 7.8 HE2XIN SERVICE PARTS 7.8.1 HE2XINH Service Parts FIGURE 7.8.0 HE2XINH SERVICE PARTS www.renewaire.com (800) 627- 4499 support@renewaire.com 1.800.627.4499...
- Page 34 SERVICE PARTS HE-Series Indoor 7.8.2 HE2XINV Service Parts FIGURE 7.8.1 HE2XINV SERVICE PARTS www.renewaire.com (800) 627- 4499 support@renewaire.com 1.800.627.4499...
- Page 35 SERVICE PARTS HE-Series Indoor 8.0 TROUBLESHOOTING If problems occur with a RenewAire ERV, the primary resources for trouble-shooting are the unit as-built wiring schematics and the Sequence Of Operation (SOO) for each control scheme. 9.0 FACTORY ASSISTANCE In the unlikely event that you need assistance from the factory for a specific issue, make sure that you have the information called for in the Unit Records page in the Owner Information section of this manual.
- Page 36 About RenewAire For over 30 years, RenewAire has been a pioneer in enhancing indoor air quality (IAQ) in commercial and residential buildings of every size.This is achieved while maximizing sustainability through our fifth-generation, static-plate, enthalpic-core Energy Recovery Ventilators (ERVs) that optimize energy efficiency, lower capital costs via load reduction and decrease operational expenses by minimizing equipment needs, resulting in significant energy savings.
