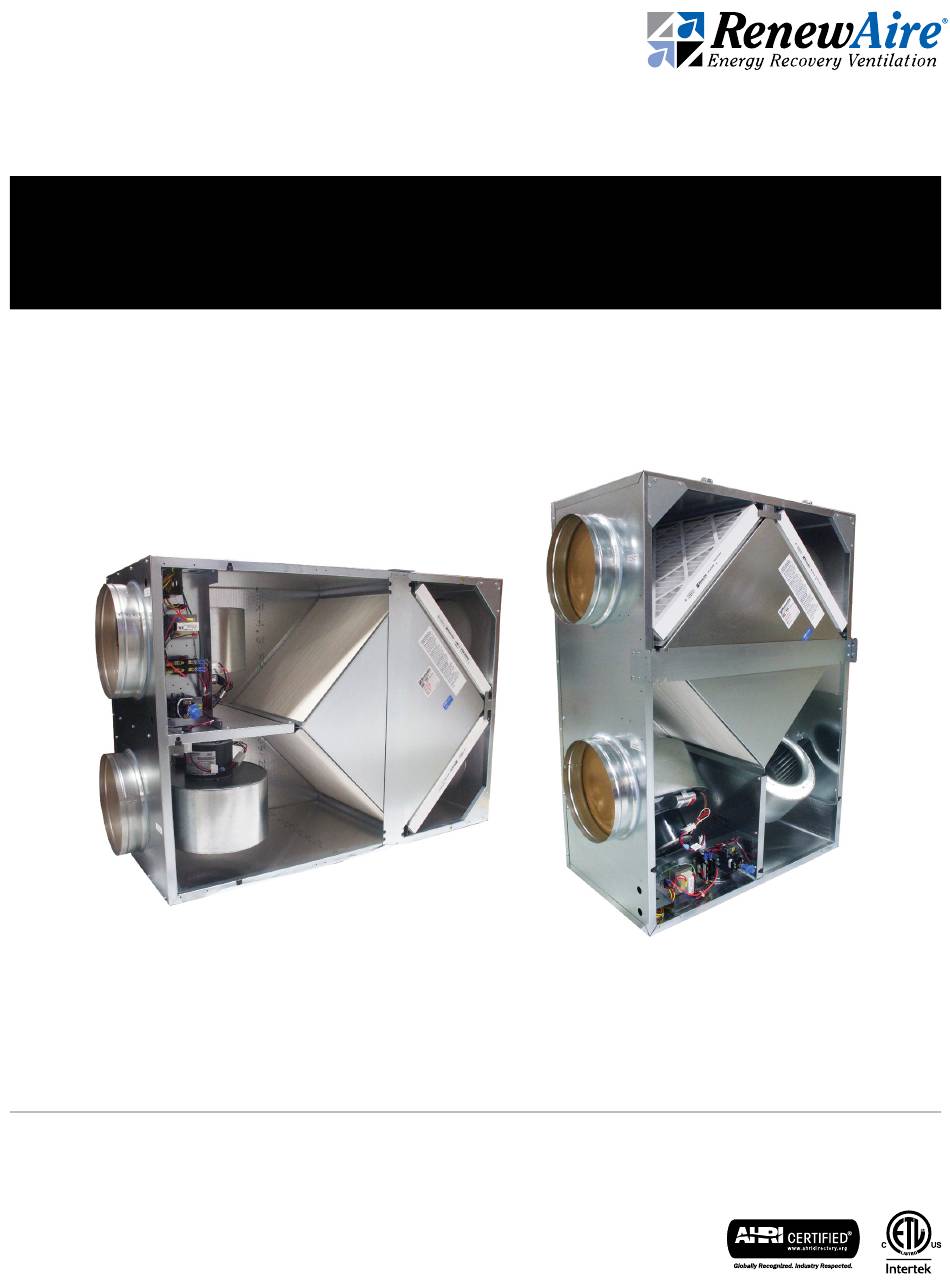

- Page 1 HE SERIES ERV Installation, Operation and Maintenance Manual HE1XINH HE1XINV Model: HE1XINH shown Model: HE1XINV shown...
- Page 2 HE-Series Indoor WARNING AVERTISSEMENT Moteurs de trois phase ne convient pas pour utilisation avec Three phase motors are NOT suitable for use with solid regulateur de vitesse electronique. state speed control. Moteurs d’une phase de l’EC ne conviennent pas pour une Single phase EC motors are NOT suitable for use with solid utilisation avec regulateur de vitesse electronique.
- Page 3 Locate the RenewAire unit label found on the outside of the unit. contractor. The completed NOTE: This information is for purposes of identifying the unit-specific option data from the...
- Page 4 Protection motor Amps Device 0.75 Single 20.3 0.75 208-230 Single 10.1 0.75 Single 0.75 208-230 Three 1.7-2.3 0.75 Three 1.15 Specifications may be subject Specifi cations may be subject to change without notice. to change without notice. RENEWAIRE.COM 1.800.627.4499 1.800.627.4499...
- Page 5 Specifications may be subject to change without notice. RENEWAIRE.COM FOR THE MOST COMPLETE AND CURRENT INFORMATION VISIT 1.800.627.4499...
- Page 6 Protection motor Amps Device 0.75 Single 20.3 0.75 208-230 Single 10.1 0.75 Single 0.75 208-230 Three 1.7-2.3 0.75 Three 1.15 Specifications may be subject Specifi cations may be subject to change without notice. to change without notice. RENEWAIRE.COM 1.800.627.4499 1.800.627.4499...
- Page 7 Specifications may be subject to change without notice. RENEWAIRE.COM FOR THE MOST COMPLETE AND CURRENT INFORMATION VISIT 1.800.627.4499...
-
Page 8: Table Of Contents
TABLE OF CONTENTS HE-Series Indoor 1.0 OVERVIEW 5.5 WIRING SCHEMATICS..........20 5.6 EXTERNAL CONTROL CONNECTIONS .....22 1.1 DESCRIPTION ............12 5.6.1 Single 2-Wire Control, Unpowered ........22 1.2 AIRFLOW ..............12 5.6.2 Control Sending 24 VAC “On” Signal .........22 5.6.3 Control Operating on Unit’s 24 VAC Power Supply ....22 2.0 COMPONENT DESCRIPTIONS 5.6.4 Control System with two Non-Powered Relay Contacts ..23 5.6.5 Control System Sending two 24 VAC “On”... - Page 9 TABLE OF CONTENTS HE-Series Indoor TABLE OF ILLUSTRATIONS Figure 1.2.0 Airflow Orientations ....................... 13 Figure 3.2.0 HE1XINH Weights and COG .................... 14 Figure 3.2.1 HE1XINV Weights and COG .................... 15 Figure 4.2.0 Service Clearances, HE1XINH ..................16 Figure 4.2.1 Service Clearances, HE1XINV ..................16 Figure 5.5.0 HE1XIN Single Phase Unit, Standard ................
- Page 10 CONFIGURATION CODE HE-Series Indoor CONFIGURATION CODE MODEL NUMBER DIGIT NUMBER Digit 9: Digit 19: Orientation Unit Control (see Restriction 4) "V", "H" "A" = Standard Unit Control Wiring "D" = Independent Blower Control "G" = Terminal Strip for EC Motors Digit 11: Wall Type "S"...
- Page 11 HE-Series Indoor T H I S P A G E I S I N T E N T I O N A L LY L E F T B L A N K . THIS PAGE IS INTENTIONALLY LEFT BLANK 1.800.627.4499...
-
Page 12: Overview
For further information on available control accessories, see the HE RenewAire catalog. There are two types of HE1X units, one for indoor installations and one for rooftop, or outdoor, installation. -
Page 13: Component Descriptions
COMPONENT DESCRIPTIONS HE-Series Indoor HEIN except 6x 8x, LEIN HEIN except 6x 8x, LE_IN MODEL DESCRIPTION OF DUCT CONNECTION CONFIGURATION HE1XINH Room Air [RA] and Outside Air [OA] enter on the same side of the unit. HE1XINV Room Air [RA] and Outside Air [OA] enter on oposite sides of the unit. FIGURE 1.2.0 AIRFLOW ORIENTATIONS 2.0 COMPONENT DESCRIPTIONS 2.1 CABINET... -
Page 14: Shipping/Receiving/Handling
Any discovered shipping damage should be immediately reported to the RenewAire sales rep and the damage must be recorded on the Bill Of Lading, prior to signing for acceptance of the shipment. -
Page 15: Recieving
6/16/06 MF Scale: 1" = 24" SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE. Do not scale drawing observed, take digital pictures and report the damage to your RenewAire representative. Note JUN18 MHK MAR20 KMC RenewAire LLC HE1XINV_CORNER_WEIGHTS_MAR20.dwg the damage on the carrier’s Bill of Lading. Depending on expected transport and storage conditions, the unit may have only the duct openings covered, it may be stretch-wrapped or it may be crated. -
Page 16: Unit Placement
Section 4.2 of this manual. In addition, if the optional Bypass Economizer is ordered, additional clearance will be required for the extra bypass duct. See the RenewAire Supplemental Manual for ByPass or further information and clearance details specific to the HE1XIN units. -
Page 17: Radiated Noise
INSTALLATION HE-Series Indoor In general, provide smooth transitions from the ERV’s outlets to the duct. The ducts connecting to the outlets should be straight for a sufficient distance, with gradual transitions to the final duct size. These guidelines are consistent with SMACNA recommended duct layout practices for efficient and quiet air movement. -
Page 18: Suspended Mount
INSTALLATION HE-Series Indoor 5.3 SUSPENDED MOUNT CAUTION HE1XIN units can also be suspended from a ceiling or other structural member. The preferred The HE1XIN weighs 210 method of support is to remove the four adjustable legs and bolt heavy-gauge Unistrut or other lbs. -
Page 19: How To Reset The 24 Vac Circuit Breaker
INSTALLATION HE-Series Indoor CAUTION 1. Connect only to components intended for use with 24 VAC power. 2. Do not undersize the low-voltage wires connected to this device. Observe the wire length and gauge limits indicated in this manual. 3. Do not overload this unit’s 24 VAC power supply system. Confirm that the power require- ments of devices you connect to this power supply system do not exceed 8 VA in total. -
Page 20: Wiring Schematics
24 VAC 115 VAC Contactor 24 VAC Transformer 277 VAC FIGURE 5.5.0 HE1XIN SINGLE PHASE UNIT, STANDARD REV. DATE NAME CHANGES RenewAire austine Updated Field Wire Colors 9/4/2019 HE-1XJINx-x11,15,19xx--xAxTx-xx austine Updated Wire Damper Colors 3/14/2019 Family Input Power 8/10/2018 austine... -
Page 21: Figure 5.5.2 He1Xin Single Phase Unit, Independent Blower Control
Supply Exhaust Relay Relay 24 VAC 24 VAC Transformer FIGURE 5.5.2 HE1XIN SINGLE PHASE UNIT, INDEPENDENT BLOWER CONTROL REV. DATE NAME CHANGES RenewAire austine Updated Field Wiring Colors 9/4/2019 HE-1XJINx-x11,15,19xx--xDxTx-xx austine Updated Wago Placement Input Power 5/15/2019 Family 3/14/2019 austine... -
Page 22: External Control Connections
INSTALLATION HE-Series Indoor 5.6 EXTERNAL CONTROL CONNECTIONS NOTE: The sim- plified schematics 5.6.1 Single 2-Wire Control, Unpowered below show only Use the schematic shown in Figure 5.6.0; if the control requires no power to operate and acts the relevant portions of like a simple on/off switch. -
Page 23: Control System With Two Non-Powered Relay Contacts
INSTALLATION HE-Series Indoor 5.6.4 Control System with two Non-Powered Relay Contacts: ERVs with Independent Blower Control Only: Use Figure 5.6.3 if the external control system provides no voltage or current at its output contacts. Connect the two blue leads together. Connect the red lead to one side of each of the output contacts. -
Page 24: Operation
OPERATION HE-Series Indoor 6.0 OPERATION 6.1 PRINCIPLE OF OPERATION The HE1XIN has one basic purpose: to exhaust air from a structure and bring in fresh air from outside, while transferring heating or cooling energy from the exhaust air to the fresh air. The HE1XIN is a very simple device, and will accomplish this purpose as long as the blower is able to move air through the enthalpic core. -
Page 25: Balancing Airflow
Dirty or clogged filters reduce airflow through the unit. FIGURE 6.4.0 HE1XINH PRESSURE PORT LOCATIONS FIGURE 6.4.1 HE1XINV PRESSURE PORT LOCATIONS www.renewaire.com (800) 627- 4499 support@renewaire.com www.renewaire.com (800) 627- 4499 support@renewaire.com DIFFERENTIAL STATIC ACROSS CORE DSP VS. CFM... -
Page 26: Filter Pressure Drop
OPERATION HE-Series Indoor Initial Pressure Drop of MERV 8 Filters 6.4.1 Filter Pressure Drop supplied with this unit NOTE: Clean filter pressure drop is included in unit air- flow performance tables. Pleated_Filter_PD_APR16 20x20x2 MERV 13 (IOM) 1000 Unit Airflow (CFM) Initial Pressure Drop of MERV 13 Filters FIGURE 6.4.2 INITIAL PRESSURE DROP OF MERV 8 FILTERS, SUPPLIED WITH THIS UNIT (available option) -
Page 27: Extreme Cold Operation
7.0 MAINTENANCE WARNING RenewAire ERVs are built to operate with minimal maintenance. After unit commissioning, the Danger of injury if unit primary areas of attention are the air filters and annual vacuuming of the enthalpic cores. -
Page 28: Enthalpic Core
MAINTENANCE HE-Series Indoor 7.6 ENTHALPIC CORE CAUTION RISK OF DAMAGE TO ENTHALPIC CORES Whenever working within the ERV cabinet, protect the enthalpic cores from accidental damage. CAUTION The core media is subject to damage from dropped tools or other foreign objects DO NOT WASH THE 7.6.1 Enthalpic Core Maintenance ENTHALPIC CORE. -
Page 29: Maintenance Records
MAINTENANCE HE-Series Indoor 7.7 MAINTENANCE RECORDS MAINTENANCE LOG ENTER DATES OF SERVICE OA FILTER RA FILTER INSPECTION/ CLEAN CLEAN INITIALS CHANGE CHANGE CLEANING CORE BLOWERS 1.800.627.4499... -
Page 30: Service Parts
MAINTENANCE HE-Series Indoor 7.8 SERVICE PARTS FIGURE 7.8.0 HE1XINH SERVICE PARTS www.renewaire.com (800) 627- 4499 support@renewaire.com FIGURE 7.8.1 HE1XINV SERVICE PARTS www.renewaire.com (800) 627- 4499 support@renewaire.com 1.800.627.4499... -
Page 31: Troubleshooting
FACTORY ASSISTANCE HE-Series Indoor 8.0 TROUBLESHOOTING If problems occur with a RenewAire ERV, the primary resources for troubleshooting are the unit as-built wiring schematics and the Sequence Of Operation (SOO) for each control scheme. 9.0 FACTORY ASSISTANCE In the unlikely event that you need assistance from the factory for a specific issue, make sure that you have the information called for in the Unit Information page in the front of this manual. - Page 32 About RenewAire For over 30 years, RenewAire has been a pioneer in enhancing indoor air quality (IAQ) in commercial and residential buildings of every size.This is achieved while maximizing sustainability through our fifth-generation, static-plate, enthalpic-core Energy Recovery Ventilators (ERVs) that optimize energy efficiency, lower capital costs via load reduction and decrease operational expenses by minimizing equipment needs, resulting in significant energy savings.
