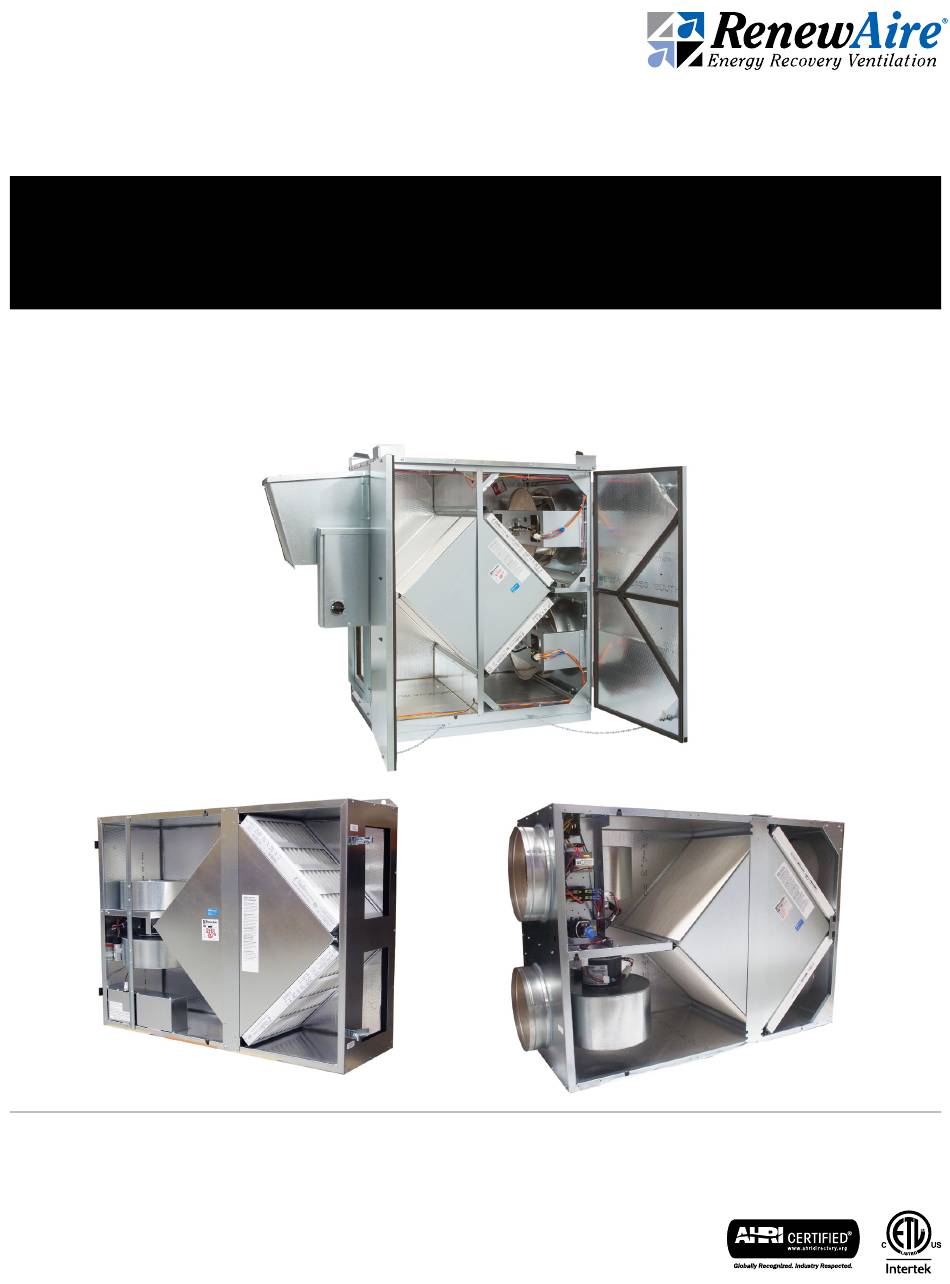

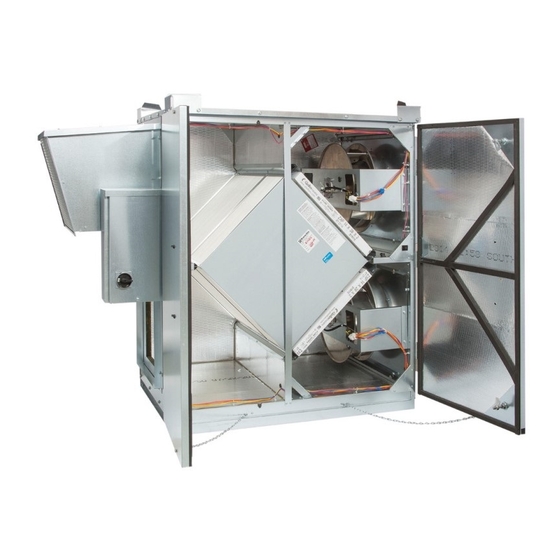

- Page 1 EC Motor Supplemental Manual Supplemental Manual for Options EV450 HE1X HE1.5X Model SHOWN: HE1.5XRT Model Shown: HE1XIN Model Shown: EV450IN...
- Page 2 OPTIONS EC Motors WARNING RISK OF FIRE, ELECTRIC SHOCK, OR INJURY. OBSERVE ALL CODES AND THE FOLLOWING: 1. Before servicing or cleaning the unit, switch power off at disconnect switch or service panel and lockout/tag-out to prevent power from being switched on accidentally. More than one disconnect switch may be required to de-energize the equipment for servicing.
-
Page 3: Table Of Contents
3.1 PRINCIPLES OF EXTERNAL CONTROL ............... 9 3.2 ELECTRICAL SPECIFICATIONS .................. 9 3.3 WIRING SCHEMATICS..................... 10 3.3.1 EV450 ............................10 3.3.2 HE1X (shown without dampers) ..................... 11 3.3.3 HE1.5X (shown without dampers) ....................12 3.3.4 TC7D Field Wiring (Optional Accessory) ..................13 4.0 OPERATION... -
Page 4: Overview
(ECM). EC motors have higher efficiencies with considerable energy savings over a standard permanent split capacitor motor. The ECM offered in RenewAire energy recovery ventilators (ERVs) are constant torque with a variety of speed control options. The motors operate at fixed speed or variable speed with speed inputs from fixed resistors, potentiometer, or 0–10 Vdc... -
Page 5: Performance Data
PERFORMANCE DATA EC Motors OPTIONS 2.0 PERFORMANCE DATA 2.1 EV450IN ECM OPERATING RANGE EV450-IN ECM 1.25 EV450-IN ECM Sample Points ESP* Watts 1.00 0.07 0.16 0.25 0.34 0.75 0.40 0.20 0.43 0.50 0.67 0.90 1.00 0.25 Note: Watts is for the entire unit. -
Page 6: He1Xin (H Or V) Ecm Operating Range
PERFORMANCE DATA OPTIONS EC Motors 2.3 HE1XIN (H OR V) ECM OPERATING RANGE HE1X-IN ECM (H or V) HE1X-IN ECM 1.75 Sample Points ESP* Watts 0.04 1.50 0.07 1.25 0.15 1029 0.24 1075 1.00 0.33 1019 0.41 1042 1068 0.75 0.11 1056 0.20... -
Page 7: He1Xrtc Ecm Operating Range
PERFORMANCE DATA EC Motors OPTIONS 2.5 HE1XRTC ECM OPERATING RANGE 2.5.1 Unit Tied into Separate Ducts HE1X-RTC ECM Unit Tied Into Separate Ducts 1.25 1.00 0.75 0.50 0.25 890 watts 0.00 1000 1125 1250 Airflow (cfm) 2.5.2 Unit Tied into Air-Handler HE1X-RTC ECM Unit Tied into Air Handler 0.50... -
Page 8: He1.5Xin (H Or V) Ecm Operating Range
PERFORMANCE DATA OPTIONS EC Motors 2.6 HE1.5XIN (H OR V) ECM OPERATING RANGE HE1.5X-IN ECM HE1.5X-IN ECM 1.75 Sample Points ESP* Watts 1.50 0.07 0.12 1.25 1014 0.20 1006 1222 0.28 1017 1.00 1430 0.39 1015 1022 0.20 0.75 0.33 1021 0.52 0.50... -
Page 9: Installation
(24 VAC) controls to meet the ventilation needs of the facility. These include time clock, occupancy sensor, carbon dioxide sensor, BMS, and others. These devices are commonly known as 2-wire, 3-wire, and 4-wire devices. RenewAire offers separately the following for standalone control of the ERV:... -
Page 10: Wiring Schematics
INSTALLATION OPTIONS EC Motors 3.3 WIRING SCHEMATICS 3.3.1 EV450 NOTE: Connect the yellow EN wire to the black COM wire to enable the unit. NOTE: By default the resistors on the board set SPEED 1. NOTE: Connect the yellow VAR wire to the black COM wire to enable SPEED 2. -
Page 11: He1X (Shown Without Dampers)
INSTALLATION EC Motors OPTIONS 3.3.2 HE-1X (shown without dampers) NOTE: Connect the yellow EN wire to the black COM wire to enable the unit. NOTE: By default the resistors on the board set SPEED 1. NOTE: Connect the yellow VAR wire to the black COM wire to enable SPEED 2. -
Page 12: He1.5X (Shown Without Dampers)
INSTALLATION OPTIONS EC Motors 3.3.3 HE1.5X (shown without dampers) NOTE: Connect the yellow EN wire to the black COM wire to enable the unit. NOTE: By default the resistors on the board set SPEED 1. NOTE: Connect the yellow VAR wire to the black COM wire to enable SPEED 2. -
Page 13: Tc7D Field Wiring (Optional Accessory)
INSTALLATION EC Motors OPTIONS 3.3.4 TC7D Field Wiring (Optional Accessory) Circuit Board YL VAR 24VAC REV. DATE NAME CHANGES RenewAire EV450 ECM Family Field Wiring Description EV450Jxx--x11,15-----GxTx-xx_006 Config 1.800.627.4499... -
Page 14: Operation
EA should be roughly equal (“balanced”). In some facilities a slight positive or negative pressure in the building is desired. RenewAire energy recovery ventilators can generally operate with a flow imbalance of up to 20% without significant loss in energy recovery efficiency. -
Page 15: Airflow Versus Pressure Drops
To contact RenewAire Customer Service: Call 800-627-4499 RenewAireSupport@RenewAire.com Email: Remember that RenewAire Customer Service can only assist with the ERV and its options, it cannot resolve engineering issues that result from air handling system design by others. 1.800.627.4499... - Page 16 About RenewAire For over 30 years, RenewAire has been a pioneer in enhancing indoor air quality (IAQ) in commercial and residential buildings of every size. This is achieved while maximizing sustainability through our fifth-generation, static-plate, enthalpic-core Energy Recovery Ventilators (ERVs) that optimize energy efficiency, lower capital costs via load reduction and decrease operational expenses by minimizing equipment needs, resulting in significant energy savings.
