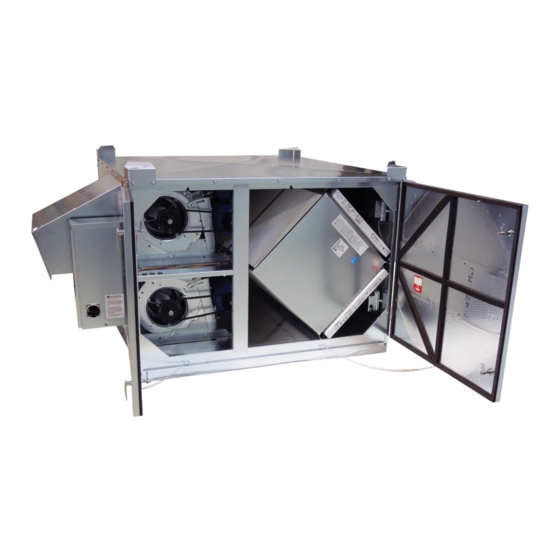

- Page 1 HE SERIES ERV Installation, Operation and Maintenance Manual HE3XRTH HE3XRTF HE3XRTR HE3XRTV HE-3XRTR Shown...
- Page 2 HE-Series Outdoor WARNING CAUTION ARC FLASH AND ELECTRIC SHOCK HAZARD RISK OF CONTACT WITH HIGH SPEED MOVING PARTS Arc flash and electric shock hazard. Disconnect all electric Disconnect all local and remote power supplies, verify with power supplies, verify with a voltmeter that electric power a voltmeter that electric power is off and all fan blades have is off and wear protective equipment per NFPA 70E before stopped rotating before working on the unit.
- Page 3 Record information as shown below. In the unlikely event that factory assistance is ever required, information located on the unit label will be needed. Locate the RenewAire unit label found on the outside of the unit. NOTE: This page is to be completed...
- Page 4 HE-Series Outdoor T H I S P A G E I S I N T E N T I O N A L LY L E F T B L A N K . THIS PAGE IS INTENTIONALLY LEFT BLANK 1.800.627.4499...
- Page 5 Three 208-230 Single 14.7-14 33.1 9.4-8.5 40.2 208-230 Three 9.4-8.5 21.1 9.4-8.5 23.2 Three 4.24 10.5 Three 208-230 Three 14.5-13.4 32.6 14.5-13.4 35.9 Three 15.1 16.6 Three 11.9 13.1 Specifi cations may be subject to change without notice. RENEWAIRE.COM 1.800.627.4499...
- Page 6 FOR THE MOST COMPLETE AND CURRENT INFORMATION VISIT RENEWAIRE.COM...
- Page 7 SPECIFICATIONS & DIMENSIONS RENEWAIRE.COM 1.800.627.4499...
-
Page 8: Table Of Contents
TABLE OF CONTENTS HE-Series Outdoor 1.0 OVERVIEW 5.5.1 Generic Single-Phase Wiring Schematic ......20 5.5.2 Generic Three-Phase Wiring Schematic ......21 1.1 DESCRIPTION ............11 5.5 EXTERNAL LOW VOLTAGE CONTROL WIRING CONNECTIONS ............22 1.2 AIRFLOW ..............11 1.2.1 Airflow in HE3XRTH ............12 5.5.1 Single 2 - Wire Control, Unpowered ........22 1.2.2 Airflow in HE3XRTF ............12 5.5.2 Single 2 - Wire Control, Separate Power ......22 1.2.3 Airflow in HE3XRTR ............12... - Page 9 TABLE OF CONTENTS HE-Series Outdoor 7.7 MAINTENANCE RECORDS ........31 7.8 SERVICE PARTS ........... 34 8.0 TROUBLESHOOTING 9.0 FACTORY ASSISTANCE TABLE OF ILLUSTRATIONS Figure 1.2.0 Airflow Orientations ..........12 Figure 2.4.0 E-Box with Motor Starters ........13 Figure 3.2.0 HE3XRT Weights and COG ........15 Figure 4.2.0 HE3XRT Service Clearances ........
- Page 10 CONFIGURATION CODE HE-Series Outdoor CONFIGURATION CODE H E - 3 X MODEL NUMBER DIGIT NUMBER Digit 9: Digit 19: Orientation Unit Control (see Restriction 5) "V", "H", "R", "F" "A" = Standard Unit Control Wiring "V" = Onboard VFD Both Airstreams Digit 11: Wall Type "S"...
-
Page 11: Overview
VFDs, a RenewAire Commercial Controller or by a BMS. There are a number of different control devices available to control the operation or speed of the unit fans. For further information on available control accessories, see the HE RenewAire catalog. -
Page 12: Airflow In He3Xrth
OVERVIEW HE-Series Outdoor HERT except 6x 8x, LERT HERT except 6x 8x, LERT HERT except 6x 8x, LERT HERTexcept 6x 8x, LERT DESCRIPTION OF DUCT MODEL MOUNTING OPTION CONNECTION CONFIGURATION Room Air [RA] enters bottom of unit. HE3XRTV Roof Curb Fresh Air [FA] exits bottom of unit. -
Page 13: Enthalpic Cores
2.6 FILTERS All HE3XRT units come equipped with six MERV 8 20" x 20" x 2" (nominal) pleated filters. MERV 13 filters can be ordered as an accessory and are shipped loose. www.renewaire.com (800) 627- 4499 support@renewaire.com (6) 20" x 20” x 2" (nominal) pleated filters. Actual size: 19.5" x 19.5" x 1.75"... -
Page 14: Factory Installed Options
Any discovered shipping damage should be immediately reported to the RenewAire sales rep and the damage must be recorded on the Bill Of Lading, prior to signing for acceptance of the shipment. -
Page 15: Rigging And Center Of Gravity
Upon receipt of the HE3XRT, inspect the unit for obvious external damage. If damage is observed, take digital pictures and report the damage to your RenewAire rep. Note the damage on the carrier’s Bill of Lading. Depending on expected transport and storage conditions, the unit may have only the duct openings covered, it may be stretch-wrapped or it may be crated. -
Page 16: Service Clearances
UNIT PLACEMENT HE-Series Outdoor 4.2 SERVICE CLEARANCES RA Damper Location (Optional) (Recessed 3/4") 26 1/8" CURB 3X 10" X 42" 35 3/8" Opening Minimum Service Area 45 1/4" Door Swing Door Swing 14 1/4" 4 5/8" FA (RTV) 12" X 6 7/8" 53 1/8"... -
Page 17: Installation
(provided) on all bearing surfaces on the curb. Optional installation on owner-provided rails (HE3XRTH only): RenewAire recommends that all HE3XRT units be installed on a RenewAire-supplied curb that is manufactured to match individual units. The only unit that may be installed on owner-supplied mountings rails is the HE3XRTH. -
Page 18: Electrical Requirements
INSTALLATION HE-Series Outdoor 5.2.2 Duct Insulation If the inside ducts run through un-conditioned spaces, they must be insulated, with a sealed vapor barrier on both inside and outside of insulation. 5.2.3 Use Dampers to Set and Balance Airflow Rates In most applications, the airflow rate for both the Fresh Air and the Exhaust Air should be roughly equal (or “balanced”) for best performance of the HE3XRT Unit. -
Page 19: Low Voltage Control System
INSTALLATION HE-Series Outdoor 5.3.2 Low Voltage Control System NOTICE This ERV is provided with a Class II 24 VAC power supply system that operates the unit’s If primary-side voltage contactor(s) for HE3XRT. The ERV’s 24 VAC Power Supply can also be used to power the is 230 VAC, move black externally-installed controls system: up to 8VA of power is available. -
Page 20: Electric Wiring Schematic
INSTALLATION HE-Series Outdoor 5.4 WIRING SCHEMATICS 5.4.0 GENERIC SINGLE-PHASE WIRING SCHEMATIC 1.800.627.4499... -
Page 21: Generic Three-Phase Wiring Schematic
INSTALLATION HE-Series Outdoor 5.4.1 GENERIC THREE-PHASE WIRING SCHEMATIC 1.800.627.4499... -
Page 22: Connections
INSTALLATION HE-Series Outdoor 5.6 EXTERNAL CONTROL CONNECTIONS NOTE: The sim- 5.6.1 Single 2-Wire Control, Unpowered plified schematics below show only See Figure 5.6.0 if the control requires no power from the ERV and acts as a simple ON/OFF switch. the relevant portions of The control must not supply any power to the ERV. -
Page 23: External Control Using Erv Power Supply
INSTALLATION HE-Series Outdoor AN EXTERNAL CONTROL USING UNIT'S UNIT INTERNAL CONTROL WIRING 24VAC POWER SUPPLY (SIMPLIFIED) 24VAC Available at Terminals 1 & 2 Unit's 24VAC Power Supply Connect Terminals 2 & 3 Isolation Relay Coil (Fresh Air) Isolation Relay Coil (Exhaust Air) Connect Terminals 4 &... -
Page 24: Quick-Start For Testing Correct 3Ph Wiring
OPERATION HE-Series Outdoor 5.6 QUICK-START FOR TESTING CORRECT 3PH WIRING NOTE: Any chang- All units that run on 3 phase power should be test-run immediately after high voltage wiring es to unit low-volt- connections are made. This will verify that the three phases are properly connected, that the age wiring should dampers will open and close properly and the fans are working properly. -
Page 25: Unit Startup
OPERATION HE-Series Outdoor 6.3 UNIT STARTUP 6.3.1 Fixed-Speed Units Most fixed-speed units do not have any external controlling signals and only require turning on the disconnect switch, located on the E-Box. When the disconnect switch is turned ON, any dampers will first move into their correct operating positions and then power is suppled to the motor contactors, causing the fans to run. -
Page 26: All Fixed-Speed Units
NOTE: These ports have been carefully PRESSURE PORTS (4) located on the unit as to give you the most accurate airflow mea- surement. Do not relocate pressure ports. FIGURE 6.4.0 HE3XRT PRESSURE PORT LOCATIONS www.renewaire.com (800) 627- 4499 support@renewaire.com 1.800.627.4499... -
Page 27: Filter Pressure Drop
(3)20x20x2 MERV 8 (IOM) OPERATION HE-Series Outdoor CAUTION DIFFERENTIAL STATIC ACROSS CORE DSP VS. CFM The proper operating air- DP (H 0.20 0.30 0.40 0.50 0.60 0.70 0.80 flow range for this model is Fresh Air (FA) 1250 1670 2080 2500 2920 3330... -
Page 28: Sheave Adjustment
OPERATION HE-Series Outdoor 6.4.3 Sheave Adjustment All fan motors that are not controlled by a VFD are equipped with an adjustable sheave. These adjustable sheaves must be re-set in the field to attain optimum performance of the ERV. This adjustment is to be done after all ductwork is connected. Adjustable sheaves are held in position on the drive motor shaft by a set screw that is normally hidden until the belt(s) is removed. -
Page 29: Maintenance
HE-Series Outdoor 7.0 UNIT MAINTENANCE WARNING RenewAire ERVs are built to operate with minimal maintenance. After unit commissioning, the Danger of injury if unit primary areas of attention are the air filters, periodic lubrication of the fan motors and annual starts unexpectedly. -
Page 30: Sheave Condition
Removing dust and grease buildup on the motor housing assists proper cooling. Never wash-down frequency of maintenance the motor with high pressure spray. www.renewaire.com (800) 627- 4499 support@renewaire.com and the amount and type of grease to use on the 7.5.4 Motor Lubrication... -
Page 31: Enthalpic Cores
MAINTENANCE HE-Series Outdoor 7.6 ENTHALPIC CORES CAUTION Risk of DAMAGE TO ENTHALPIC CORES Whenever working within the ERV cabinet, protect the enthalpic cores from accidental damage. The core media is subject to damage from dropped tools or other foreign objects. 7.6.1 Enthalpic Core Maintenance The enthalpic core media is a fibrous material that must be kept clean at all times. - Page 32 MAINTENANCE HE-Series Outdoor 7.7 MAINTENANCE RECORDS MAINTENANCE LOG ENTER DATES OF SERVICE OA FILTER RA FILTER INSPECTION/ CLEAN CLEAN INITIALS CHANGE CHANGE CLEANING CORE BLOWERS 1.800.627.4499...
- Page 33 MAINTENANCE HE-Series Outdoor MISCELLANEOUS SERVICE NOTES DATE SERVICE INITIALS 1.800.627.4499...
- Page 34 MAINTENANCE HE-Series Outdoor 7.8 SERVICE PARTS FIGURE 7.8.0 HE3XRT SERVICE PARTS 1.800.627.4499...
- Page 35 TROUBLESHOOTING HE-Series Outdoor 8.0 TROUBLESHOOTING If problems occur with a RenewAire ERV, the primary resources for trouble-shooting are the unit as-built wiring schematics and the Sequence Of Operation (SOO) for each control scheme. 9.0 FACTORY ASSISTANCE In the unlikely event that you need assistance from the factory for a specific issue, make sure that you have the information called for in the Unit Records page in the Owner Information section of this manual.
- Page 36 About RenewAire For over 30 years, RenewAire has been a pioneer in enhancing indoor air quality (IAQ) in commercial and residential buildings of every size.This is achieved while maximizing sustainability through our fifth-generation, static-plate, enthalpic-core Energy Recovery Ventilators (ERVs) that optimize energy efficiency, lower capital costs via load reduction and decrease operational expenses by minimizing equipment needs, resulting in significant energy savings.
