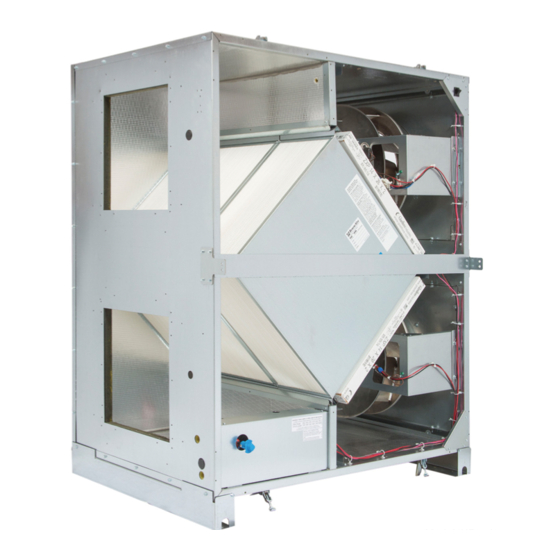

- Page 1 HE SERIES ERV Installation, Operation and Maintenance Manual HE1.5XINH HE1.5XINV Model: HE1.5XINH shown...
- Page 2 HE-Series Indoor WARNING AVERTISSEMENT Standard HE1.5XIN with single phase original equipment Le HE1.5XIN avec moteurs d’équipement d’origine mono- motors are NOT suitable for use with solid state speed phasés ne convient pas pour une utilisation avec regulateur control. de vitesse electronique. Three phase motors are NOT suitable for use with solid Moteurs de trois phase ne convient pas pour utilisation avec state speed control.
- Page 3 Locate the RenewAire unit label found on the outside of the unit. contractor. The completed NOTE: This information is for purposes of identifying the unit-specific option data from the document is to be turned Option Code.
- Page 4 Min. Overcurrent Phase Cir. Protection motor Amps Device Single 14.6 1.0 208-230 Single 3.3-3.4 Single 1.0 208-230 Three 2.2-2.2 Three Specifications may be subject Specifi cations may be subject to change without notice. to change without notice. RENEWAIRE.COM 1.800.627.4499 1.800.627.4499...
- Page 5 Specifications may be subject to change without notice. FOR THE MOST COMPLETE AND CURRENT INFORMATION VISIT RENEWAIRE.COM 1.800.627.4499...
- Page 6 Overcurrent Volts Phase Cir. Protection motor Amps Device Single 14.6 1.0 208-230 Single 3.3-3.4 Single 1.0 208-230 Three 2.2-2.2 Three Specifications may be subject Specifi cations may be subject to change without notice. to change without notice. RENEWAIRE.COM 1.800.627.4499 1.800.627.4499...
- Page 7 Specifications may be subject to change without notice. FOR THE MOST COMPLETE AND CURRENT INFORMATION VISIT RENEWAIRE.COM 1.800.627.4499...
-
Page 8: Table Of Contents
TABLE OF CONTENTS HE-Series Indoor 1.0 OVERVIEW 5.6 EXTERNAL CONTROL CONNECTIONS .....21 5.6.1 Single 2-Wire Control, Unpowered ........21 1.1 DESCRIPTION ............11 5.6.2 Control Sending 24 VAC “On” Signal .........21 5.6.3 Control System with two Non-Powered Relay Contacts ..21 1.2 AIRFLOW ..............12 5.6.4 Control System Sending two 24 VAC “On”... - Page 9 TABLE OF CONTENTS HE-Series Indoor TABLE OF ILLUSTRATIONS Figure 1.2.0 Airflow Orientations ....................... 12 Figure 2.4.0 E-Box with Motor Starters ..................... 13 Figure 3.2.0 HE1.5XINH Weights and COGS ..................154 Figure 3.2.1 HE1.5XINH Weights and COGS ..................14 Figure 4.2.0 HE1.5XINH Service Clearances ..................15 Figure 4.2.1 HE1.5XINV Service Clearances ..................
- Page 10 5: Some units with Other Options Code "X" are not safety listed. 6: Unit Control "A" not available with Unit Control Enhancements Codes "1", "2", "3", & "4". For Technical Support E-mail: RenewaireSupport@renewaire.com To Place an Order E-mail: RenewaireOrders@renewaire.com 1.800.627.4499...
-
Page 11: Overview
For further information on available control accessories, see the HE RenewAire catalog. There are two types of HE1.5X units, one for indoor installations and one for rooftop, or outdoor, installation. -
Page 12: Airflow
OVERVIEW HE-Series Indoor 1.2 AIRFLOW There are two different airflow options for the HE1.5XIN. They are: HEIN except 6x 8x, LEIN HE1.5XINH HEIN except 6x 8x, LE_IN HE1.5XINV The airflow configuration is indicated by digit 9 of the Configuration Code. MODEL DESCRIPTION OF DUCT CONNECTION CONFIGURATION HE1.5XINH... -
Page 13: Filters
Any discovered shipping damage should be immediately reported to the RenewAire sales rep and the damage must be recorded on the Bill Of Lading, prior to signing for acceptance of the shipment. -
Page 14: Rigging And Center Of Gravity
Upon receipt of the HE1.5XIN, inspect the unit for obvious external damage. If damage is observed, take digital pictures and report the damage to your RenewAire representative. Note the damage on the carrier’s Bill of Lading. Depending on expected transport and storage HE1.5XINV Corner Weights... -
Page 15: Storage
FA: Fresh Air to inside located in Section 4.2 of this manual. In addition, if the optional Bypass Economizer is ordered, INSTALLATION ORIENTATION additional clearance will be required for the extra bypass duct. See the RenewAire Supplemental Unit may be installed in any orientation. -
Page 16: Sound Attenuation
INSTALLATION HE-Series Indoor 4.3 SOUND ATTENUATION Take these simple steps to attenuate noise from the unit. 4.3.1 Outside the Building The exhaust hood is the primary source of noise outside the building. When practical, orient the exhaust air hood to point away from houses or public areas. 4.3.2 Ducts Make sure the ductwork at the unit outlets is stiff enough to resist the flexure and resulting booming associated with system start-up and shut-off, as well as the turbulent flow conditions... -
Page 17: Suspended Mount
INSTALLATION HE-Series Indoor 5.3 SUSPENDED MOUNT HE1.5XIN units can also be suspended from a ceiling or other structural member. Screw or bolt mounting straps or brackets directly to the sheet metal case as necessary. Remove the access doors before installing screws—make sure your fasteners do not damage internal parts. Do not screw into the access doors. -
Page 18: How To Reset The 24 Vac Circuit Breaker
INSTALLATION HE-Series Indoor CAUTION NOTICE 1. Connect only to components intended for use with 24 VAC power. If primary-side voltage 2. Do not undersize the low-voltage wires connected to this device. Observe the wire length is 230 VAC, move black and gauge limits indicated in this manual. -
Page 19: Wiring Schematics
24 VAC Supply Fan Relay 24 VAC Transformer FIGURE 5.5.0 HE1.5XIN SINGLE PHASE UNIT, STANDARD REV. DATE NAME CHANGES RenewAire Input Power HE1.5JINx-x11,15,19xx--xAxTx-xx Family 208-230 VAC, 3 Phase 8/1/2018 austine Added Wire Color Labels No Damper Description 460 VAC, 3 Phase... -
Page 20: Figure 5.5.2 He1.5Xin Single Phase Unit, Independent Blower Control
Relay Relay 24 VAC 24 VAC Transformer FIGURE 5.5.2 HE1.5XIN SINGLE PHASE UNIT, WITH INDEPENDENT BLOWER CONTROL REV. DATE NAME CHANGES RenewAire HE1.5JINx-x11,15,19xx--xDxTx-xx Family Input Power 8/1/2018 austine Added Wire Color Labels No Damper 208-230 VAC, 3 Phase Description 6/7/2018... -
Page 21: External Control Connections
INSTALLATION HE-Series Indoor 5.6 EXTERNAL CONTROL CONNECTIONS NOTE: The sim- 5.6.1 Single 2-Wire Control, Unpowered plified schematics below show only Use the schematic shown in Figure 5.6.0 if the control requires no power to operate and acts the relevant portions of like a simple on/off switch. -
Page 22: Control System Sending Two 24 Vac "On" Signals (From An External Power Source)
INSTALLATION HE-Series Indoor 5.6.4 Control System Sending two 24 VAC “On” Signals (from an external power source) Use Figure 5.6.3 only if the ERV has Independent Blower Control: Make sure the blue and red leads are separately capped and not connected to any other wires. -
Page 23: Quick Start For Testing Correct 3Ph Wiring
INSTALLATION HE-Series Indoor 5.7 QUICK-START FOR TESTING CORRECT 3PH WIRING NOTE: Any changes All units that run on 3 phase power should be test-run immediately after high voltage wiring to unit low-voltage connections are made. This will verify that the three phases are properly connected, that the wiring should be dampers will open and close properly and the fans are working properly. -
Page 24: To Field Convert The Outlet Opening
INSTALLATION HE-Series Indoor 5.7.2 To Field Convert the Outlet Opening 1. Remove the patch pan (F) from the desired opening. 2. Using the exposed sheet metal cutout, cut the insulation from the desired opening. 3. Seal the edges of the cut insulation to prevent erosion of the insulation edges and having debris in the airstream. -
Page 25: Operation
OPERATION HE-Series Indoor 6.0 OPERATION 6.1 PRINCIPLE OF OPERATION The HE1.5XIN has one basic purpose: to exhaust air from a structure and bring in fresh air from outside, while transferring heating or cooling energy from the exhaust air to the fresh air. The HE1.5XIN is a very simple device, and will accomplish this purpose as long as the blower is able to move air through the enthalpic core. -
Page 26: Unit Start-Up
PRESSURE PORTS (4) Do not relocate pressure ports. NOTE: Make sure clean filters are installed before balancing airflow. Dirty or clogged filters reduce airflow through the unit. FIGURE 6.4.0 HE1.5XINH PRESSURE PORT LOCATIONS, TYPICAL www.renewaire.com (800) 627- 4499 support@renewaire.com 1.800.627.4499... -
Page 27: Filter Pressure Drop
OPERATION HE-Series Indoor ter_PD_NOV15.xlsx 14+16x20x2 MERV 8 (IOM) DIFFERENTIAL STATIC ACROSS CORE DSP VS. CFM DP (H Fresh Air 1095 1215 1330 1450 1565 (FA) Room Air 1095 1235 1375 1515 – (RA) Initial Pressure Drop of MERV 8 Filters 6.4.1 Filter Pressure Drop supplied with this unit NOTE: Clean filter... -
Page 28: Normal Operation
7.0 MAINTENANCE WARNING RenewAire ERVs are built to operate with minimal maintenance. After unit commissioning, the Danger of injury if unit primary areas of attention are the air filters and annual vacuuming of the enthalpic cores. -
Page 29: Filters
MAINTENANCE HE-Series Indoor 7.4 FILTERS Inspection and replacement of air filters is the most frequent maintenance issue. For units that do not have filter air pressure differential sensors, filters must be visually inspected monthly, as a minimum. If a filter looks discolored or dirty, REPLACE IT! When installing new filters, DO NOT USE filter sprays. -
Page 30: Maintenance Records
MAINTENANCE HE-Series Indoor 7.7 MAINTENANCE RECORDS MAINTENANCE LOG ENTER DATES OF SERVICE OA FILTER RA FILTER INSPECTION/ CLEAN CLEAN INITIALS CHANGE CHANGE CLEANING CORE BLOWERS 1.800.627.4499... -
Page 31: Service Parts
(800) 627- 4499 support@renewaire.com 8.0 TROUBLESHOOTING If problems occur with a RenewAire ERV, the primary resources for troubleshooting are the unit as-built wiring schematics and the Sequence Of Operation (SOO) for each control scheme. 9.0 FACTORY ASSISTANCE In the unlikely event that you need assistance from the factory for a specific issue, make sure that you have the information called for in the Unit Information page in the front of this manual. - Page 32 About RenewAire For over 30 years, RenewAire has been a pioneer in enhancing indoor air quality (IAQ) in commercial and residential buildings of every size. This is achieved while maximizing sustainability through our fifth-generation, static-plate, enthalpic-core Energy Recovery Ventilators (ERVs) that optimize energy efficiency, lower capital costs via load reduction and decrease operational expenses by minimizing equipment needs, resulting in significant energy savings.
