6.0

VARIABLE SPEED CONTROL

This function lets you control your spindle with PWM signal. It converts the PWM signal
into an analog (0-10VDC).
This function can also be used on many DC motor controllers by replacing the
potentiometer that controls the speed.
Requirements:
It requires a power supply external +12VDC@ 30mA for the analog output
WARNING: To keep the output signals optoisolated, these must not have
common ground or connections to current with other circuits you are using.
You will require a voltmeter to fine tune your system.
Wiring:
Before connecting anything, please be sure to read your VFD's manual and make sure
you understand all the safety issues.
Spindle uses Pins 14 for step (PWM at 1000hz) and 16 for Dir.
6.1

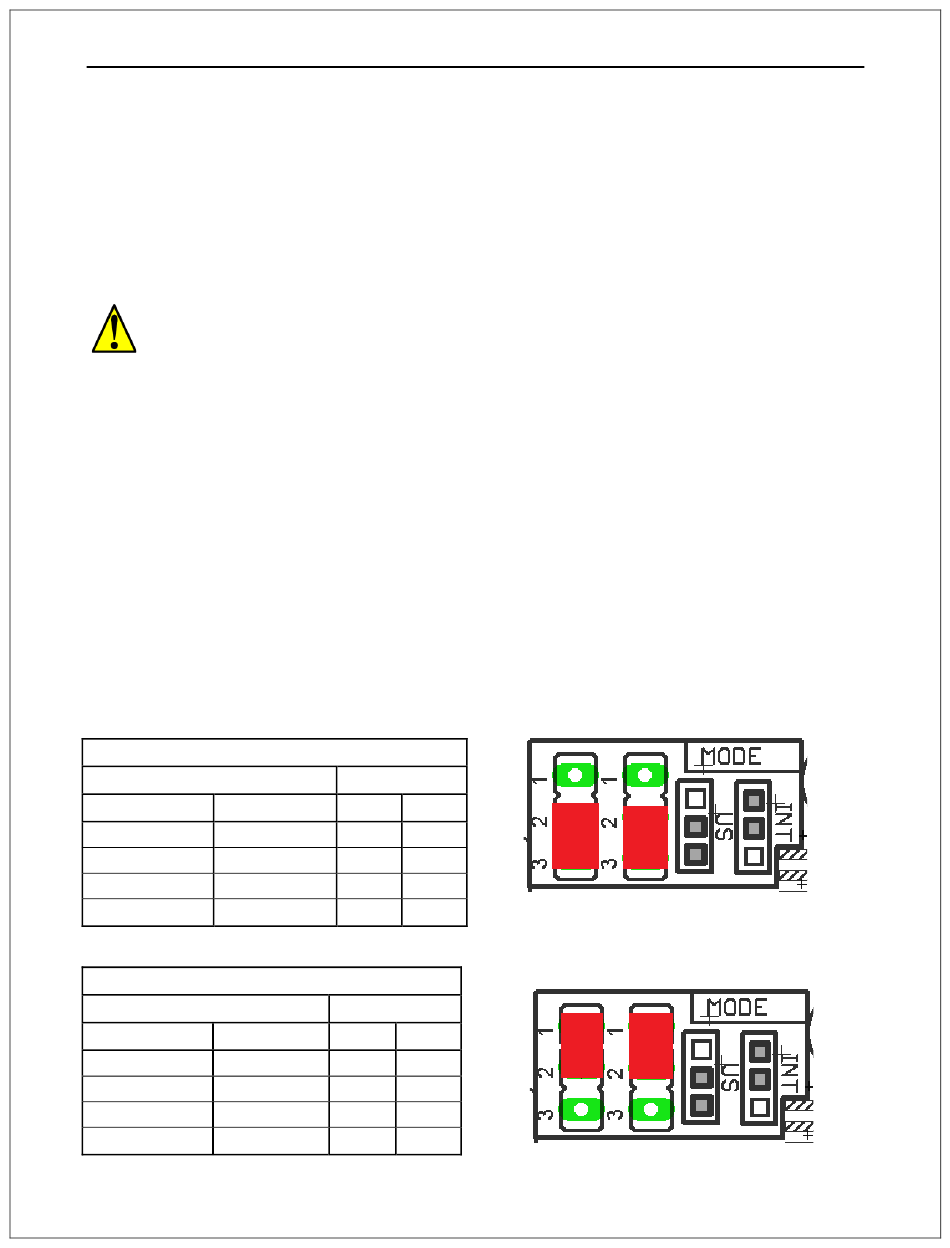

Operation Mode Jumper

This jumper allows selecting the way how the relays are activated when a PWM signal and REV
signal are present in the inputs terminals. See the tables below.
US MODE (US)
INPUTS
PWM (Pin 14) REV (Pin 16) REL 1 REL 2
ON ON
ON OFF
OFF ON
OFF OFF
INTERNATIONAL MODE (INT)
INPUTS
PWM (Pin 14) REV(Pin 16) REL 1 REL 2
ON ON
ON OFF
OFF ON
OFF OFF
User's Manual
RELAYS
OFF ON
ON OFF
OFF OFF
OFF OFF
RELAYS
ON ON
ON OFF
OFF ON
OFF OFF
MODE - US
MODE - INT
