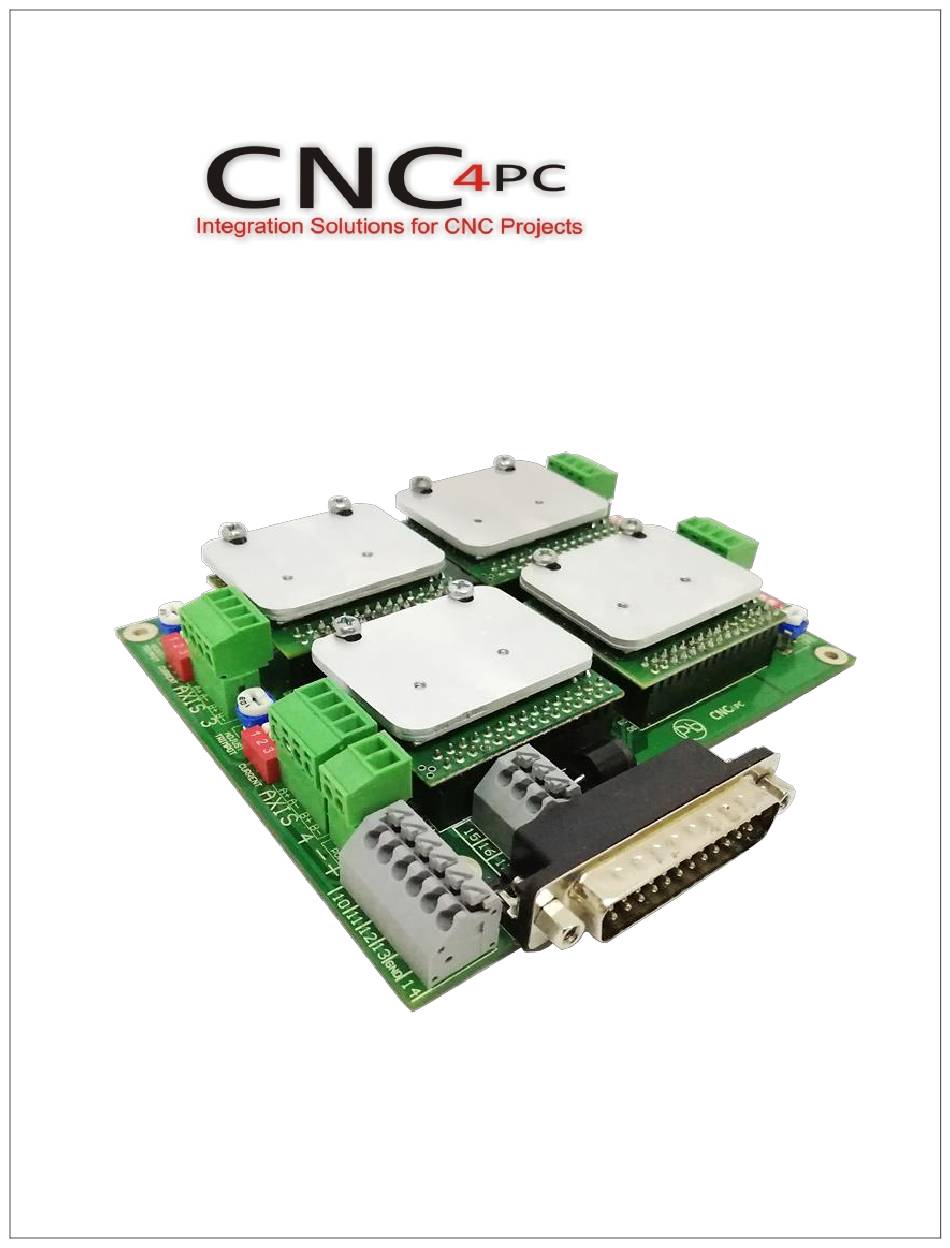

- Page 1 USER’S MANUAL VER.1 C97 – GECKO G250X MOTHERBOARD. Rev. 2 NOVEMBER 2022...
-
Page 2: Table Of Contents
USER'S MANUAL TABLE OF CONTENTS Contents Page # OVERVIEW ........................1 FEATURES ........................1 BOARD DESCRIPTION ....................2 DIPs Configurations ....................2 SPECIFICATIONS ......................3 Power Requirements....................3 ENABLE OUTPUT FOR DB25 CONNECTOR ..............3 INPUT LIMIT SWITCH ..................... 4 WIRING SAMPLE ...................... -
Page 3: Overview
OVERVIEW This Motherboard is used for the Gecko G250X Rev.3 FEATURES • DIP switch current setting, up to 3.5A peak. • Support up to 4 Drivers. • Pot for adjust trimpot. • DB25 female Connector. • Pluggable Screw-On Terminals. • I/O Signals. User’s Manual Page 1... -
Page 4: Board Description
BOARD DESCRIPTION DIPs Configurations User’s Manual Page 2... -
Page 5: Specifications
SPECIFICATIONS Power Requirements. It requires a 15-50VDC external power supply to operate. WARNING Check the polarity and voltage of the external power source and connect the 15-50VDC and GND. Overvoltage or reverse-polarity power applied to these terminals can cause damage to the board, and/or the power source. ENABLE OUTPUT FOR DB25 CONNECTOR User’s Manual Page 3... -
Page 6: Input Limit Switch
INPUT LIMIT SWITCH User’s Manual Page 4... -
Page 7: Wiring Sample
WIRING SAMPLE Note: This wiring is just to illustrate a sample product application. Specific wiring may vary from system to system. It is the user’s responsibility to implement it correctly. User’s Manual Page 5... -
Page 8: Dimensions
DIMENSIONS All dimensions are in Millimeters. Fixing holes (4mm) DISCLAIMER Use caution. CNC machines can be dangerous machines. Neither DUNCAN USA, LLC nor Arturo Duncan are liable for any accidents resulting from the improper use of these devices. This board is not a fail-safe device and it should not be used in life support systems or in other devices where its failure or possible erratic operation could cause property damage, bodily injury or loss of life.
