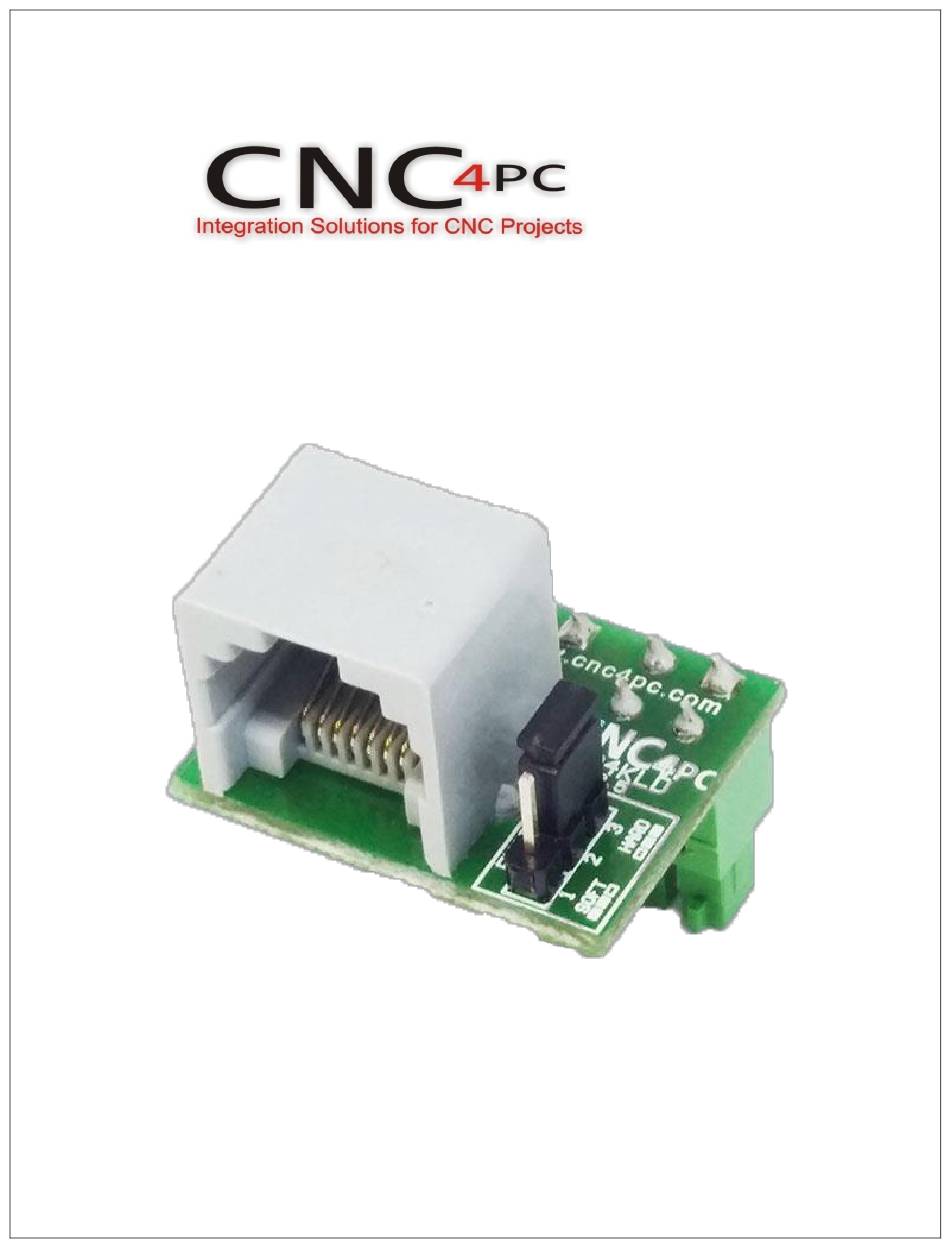

- Page 1 USER’S MANUAL VER. 2 C34KLD BOARD Rev. 3.6 MARCH 2018...
-
Page 2: Table Of Contents
USER'S MANUAL TABLE OF CONTENTS Page # Contents OVERVIEW ........................1 FEATURES ........................1 BOARD DESCRIPTION ....................1 JUMPER TO SELECT THE ENABLE ................2 WIRING SAMPLE ......................3 PINOUT ........................... 4 DIMENSION ........................5 User’s Manual Page i... -
Page 3: Overview
OVERVIEW This board interface is used for the connection between C32 and KLD - Series Driver. FEATURES • RJ45 Driver Input Connector • Select Jumper for Hard Enable or Soft Enable. BOARD DESCRIPTION User’s Manual Page 1... -
Page 4: Jumper To Select The Enable
JUMPER TO SELECT THE ENABLE Use Software Enable to keep the driver active only while the system is active. Set of jumper as shown in the image SOFT ENABLE Use Hardware Enable to keep the driver enabled all the time. Set of jumper as shown in the image HARD ENABLE User’s Manual... -
Page 5: Wiring Sample
WIRING SAMPLE Note: This wiring is just to illustrate a sample product application. Specific wiring may vary from system to system. It is the user’s responsibility to implement it correctly. User’s Manual Page 3... -
Page 6: Pinout
PINOUT C34KLD CONNECTOR RJ45 RJ45 Pins Function 8(5V) NOT USED DIR+ SOFT_EN NOT USED PUL+ NOT USED User’s Manual Page 4... -
Page 7: Dimension
DIMENSION All dimensions are in Millimeters. DISCLAIMER Use caution. CNC machines can be dangerous machines. Neither DUNCAN USA, LLC nor Arturo Duncan are liable for any accidents resulting from the improper use of these devices. This product is not a fail-safe device and it should not be used in life support systems or in other devices where its failure or possible erratic operation could cause property damage, bodily injury or loss of life.
