INTELLIGENT ROOM
THERMOSTAT
• LARGE BACKLIT DISPLAY
with intuitive navigation in
• 9 WEEKLY PROGRAMS
and 6 temperature changes per day
• PI REGULATION / HYSTERESIS
selection according to the heating system
•
OPTIMALISATION OF OPERATION
preliminary switch-on function
• ENERGY SAVINGS UP TO 30%
quick investment return
REMOTE CONTROL BY MEANS OF MOBILE PHONE
by extending the thermostat with the GST1 or GST2 module (not included in PT32)
SENT
TEMPE-
RATURE
CHANGE
CZ/PL/EN/DE
17°C
17°C
Temp. 23
PT32
PT32
23°C
23°C
HEATING
ON
MADE IN CZECH REPUBLIC
Advertisement
Table of Contents
Related Manuals for ELEKTROBOCK PT32
Summary of Contents for ELEKTROBOCK PT32
- Page 1 OPTIMALISATION OF OPERATION preliminary switch-on function • ENERGY SAVINGS UP TO 30% quick investment return REMOTE CONTROL BY MEANS OF MOBILE PHONE by extending the thermostat with the GST1 or GST2 module (not included in PT32) 17°C 17°C 23°C 23°C...
-
Page 2: Installation And Location

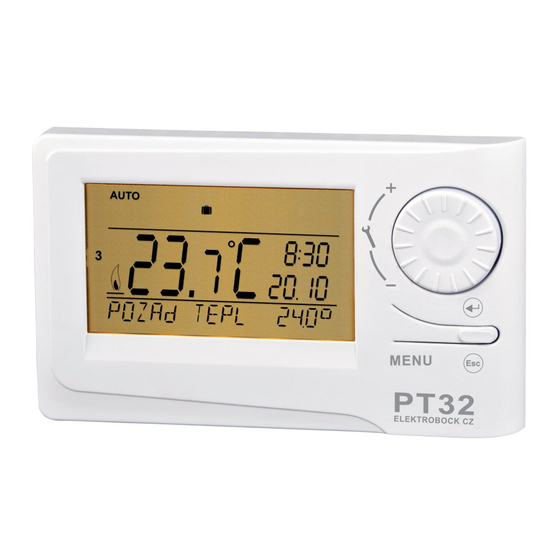

DESCRIPTION PT32 is an intelligent digital room thermostat with a backlit display. Its advantages involve a quick change in the desired temperature by simply turning the wheel, and possibility of setting up to 9 weekly programs with 6 temperature changes per day. -
Page 3: Battery Replacement
Fig.1 Fig.2 Fig.3 MENU alkal.battery alkal.batter 1.5V/AA 1.5V/AA HINTS FOR THE USER QUICK CHANGE OF THE DESIRED TEMP. / PROGRAM Press the “ “ button twice, the desired temperature starts . Change the temperature by turning the blinking on the display button, and press the “... -
Page 4: Operational Modes
OPERATIONAL MODES The fi rst push of any button activates the display backlight. Pushing the“ MENU “ button shortly again, you open the main menu where you can choose the operational mode. (the Pr3 weekly program is factory-set, see page 3) AUTO The thermostat works according to the weekly program preset (this program can be changed;... - Page 5 (PROGRAMMING) PROG 9 weekly programs with 6 changes per day can be preset. The Pr1 and Pr2 programs are blank; Pr3 to Pr 7 are factory-set. The PrU and PrL programs are factory-set as well, intended for the EVEN/ODD week sele- ction (see page 8 for details).
- Page 6 CONST (CONSTANTS) Setting of the regulation parameters. Press the “ MENU “button twice; select the CONST mode by tur- ning the “ “ button, and confi rm with the “ “button. CONSTANTS CESKY (Czech is factory preset) Language selection (CZ/PL/EN/DE). Choose the language by turning the“...
- Page 7 SETTING HYSTERESIS PARAMETERS HYSTERESIS (factory setting of 0.5°C) Set from 0.1 to 6 °C. According to the value preset, the HYSTERESIS thermostat switches on at the temperature: T switching = T required - HYSTERESIS Choose the hysteresis by turning the “ “...
- Page 8 PRELIMINARY START OF HEATING (factory setting of NO) This function provides for the desired temperature at the desired time. You do not need to consider when to switch on the heating to be warm when getting up in the morning without heating up long before uselessly.
- Page 9 The thermostat receives the message and automatically switches the heating system on until the desired temperature is achieved. Next, the PT32 automatically sends a RETURN SMS to inform you about the temperature change made. Entering the object, you can adjust the temperature on the thermostat directly at will.
-
Page 10: Other Functions
KEY LOCK (factory setting of NO) Used for locking control elements as a protection against unde- sirable intervention by a stranger. Choose YES/NO by turning the “ “ and confi rm “ “. LOCK KEY CODE This constant can be set if CONST16 = YES. It enters a code used for enabling control elements. - Page 11 USING GSM MODULE (GST1 or GST2) The PT32 thermostat can be controlled by means of a mobile phone by simply extending it by the GST1 or GST2 module (not included – must be purchased). For correct commissioning, the following proce- dure must be followed: 1) Mount and set the PT32 thermostat according to the instructions.
- Page 12 PT32 INTELLIGENT THERMOSTAT PT32 is a battery-powered room temperature. The big, well-arranged graphic display offers intuitive navigation in the selected language . The backlit display enables thermostat control even at (CZ / PL / EN / DE) night. The thermostat can be connected to all boilers requiring potential- free (voltage-free) switching contacts (such as gas boilers, electric boilers, circulation pumps, thermoelectric drives or conditioning units).
