Section 2: Front-panel overview Model 2461 High-Current SourceMeter® Instrument User's Manual
GRAPH swipe screen
The GRAPH swipe screen shows a graphical representation of the readings in the presently selected
reading buffer.

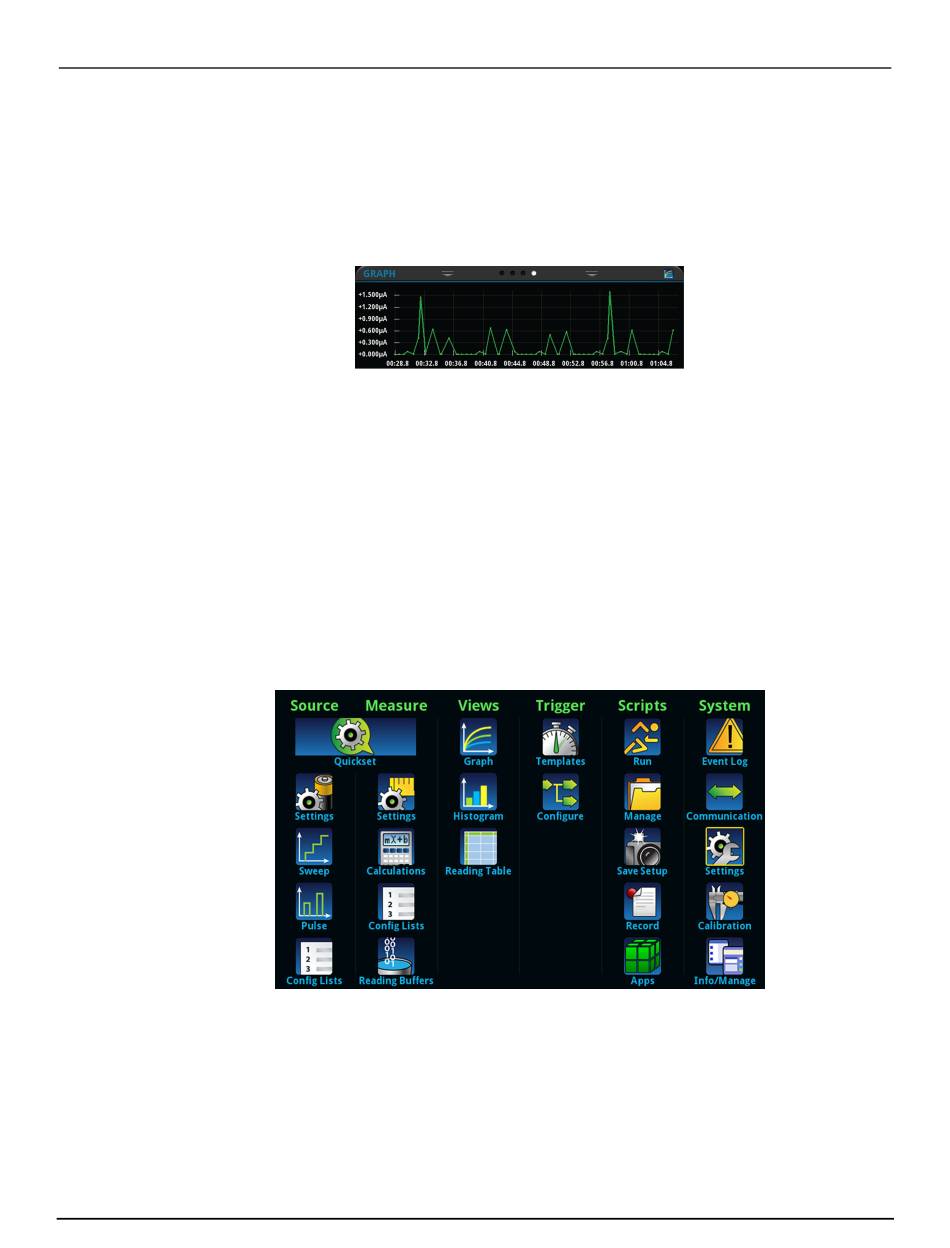

Figure 9: GRAPH swipe screen
To view the graph in the full screen and to access graph settings, select the graph icon on the right
side of the swipe screen header. You can also open the full-function Graph screen by pressing the
MENU key and selecting Graph under Views.
For more information about graphing measurements, see "Graphing" in the Model 2461
Reference Manual.

Menu overview

To access the main menu, press the MENU key on the 2461 front panel. The figure below shows the
organization of the main menu.
Figure 10: Model 2461 main menu
The main menu includes submenus that are labeled in green across the top of the display. Selecting
an option in a submenu opens an interactive screen.
2-10 2461-900-01 Rev. B / August 2019
