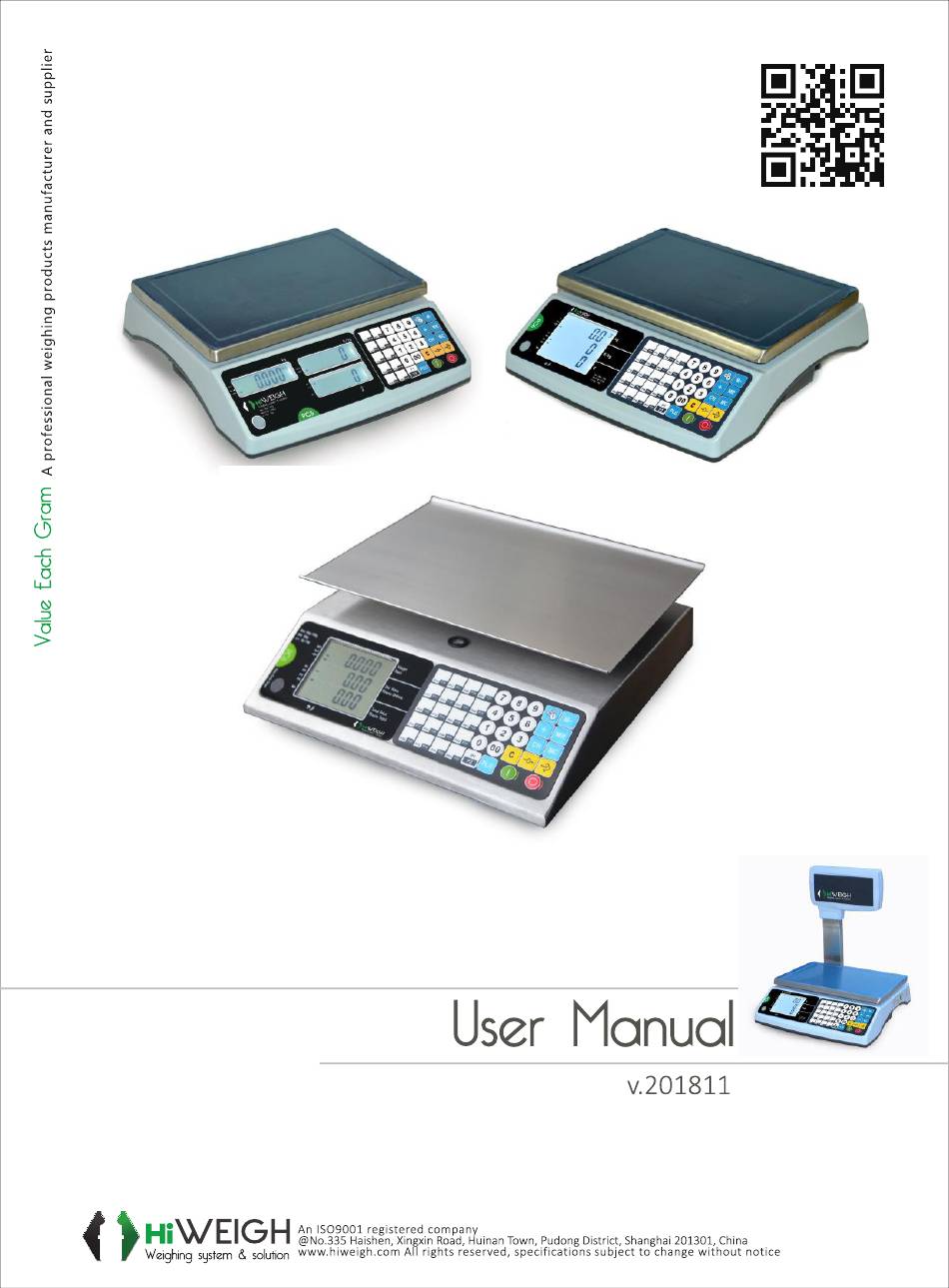

- Page 1 PC5S-PC6S PC5-PC6 Retail Scales...
- Page 3 @PC5/PC6 USER MANUAL ATTENTIONS! Please read the manual in details before Please use the right plug and right voltage operation Be much attention of 110V or 220V!!! Adjust the bubble level on the balance position Don’t hit the platform rudely and overload Don’t put the chemical liquid or other Liquids...
- Page 4 @PC5/PC6 USER MANUAL Specifications Power Before using System power consumption Low power warning Displays and keyboard description Description of keys Basic functions and operation - Tare function - Accumulation - Add up function - Payment change - P1/P2 Price look up (PLU)
-
Page 5: Specifications
@PC5/PC6 USER MANUAL SPECIFICATIONS Accuracy: Class III Loadcell sensitivity range: 1.5 ~ 3.0mV/V Nonlinear: ≤0.01%F.S System working voltage: DC:5V Division value: 1/2/5 auto setting Large LCD display connector: Sampling serial output way Sample rate: 20 times per second (can select) -
Page 6: Keyboard Description
@PC5/PC6 USER MANUAL DISPLAYS DESCRIPTION (PC5-PC5S-PC5H-PC5SH) KEYBOARD DESCRIPTION... - Page 7 @PC5/PC6 USER MANUAL DISPLAYS DESCRIPTION (PC6-PC6S-PC6H-PC6SH) KEYBOARD DESCRIPTION...
-
Page 8: Description Of Keys
@PC5/PC6 USER MANUAL DESCRIPTION OF KEYS Press and hold this key for 2 seconds to turn off the balance. Press this key to turn on the balance Accumulation key, use it to accumulate up to 20 data of weight, unit price and total price. -
Page 9: Basic Functions And Operation
@PC5/PC6 USER MANUAL BASIC FUNCTIONS AND OPERATION Tare function. Place a container on the platter and press the key, the weight of container will be deducted. After a tare you will be able to weigh any object as its net weight. -
Page 10: Error Messages
@PC5/PC6 USER MANUAL Save the Price Look Up (PLU) Enter the desired unit price and press the key, then press one of the 20 PLU memories (P01 – P10), the unit price will be saved in the appointed number. To change save unit price, just repeat the same steps. - Page 12 User Manual v.201811 PC5-PC6 PC5S-PC6S...
