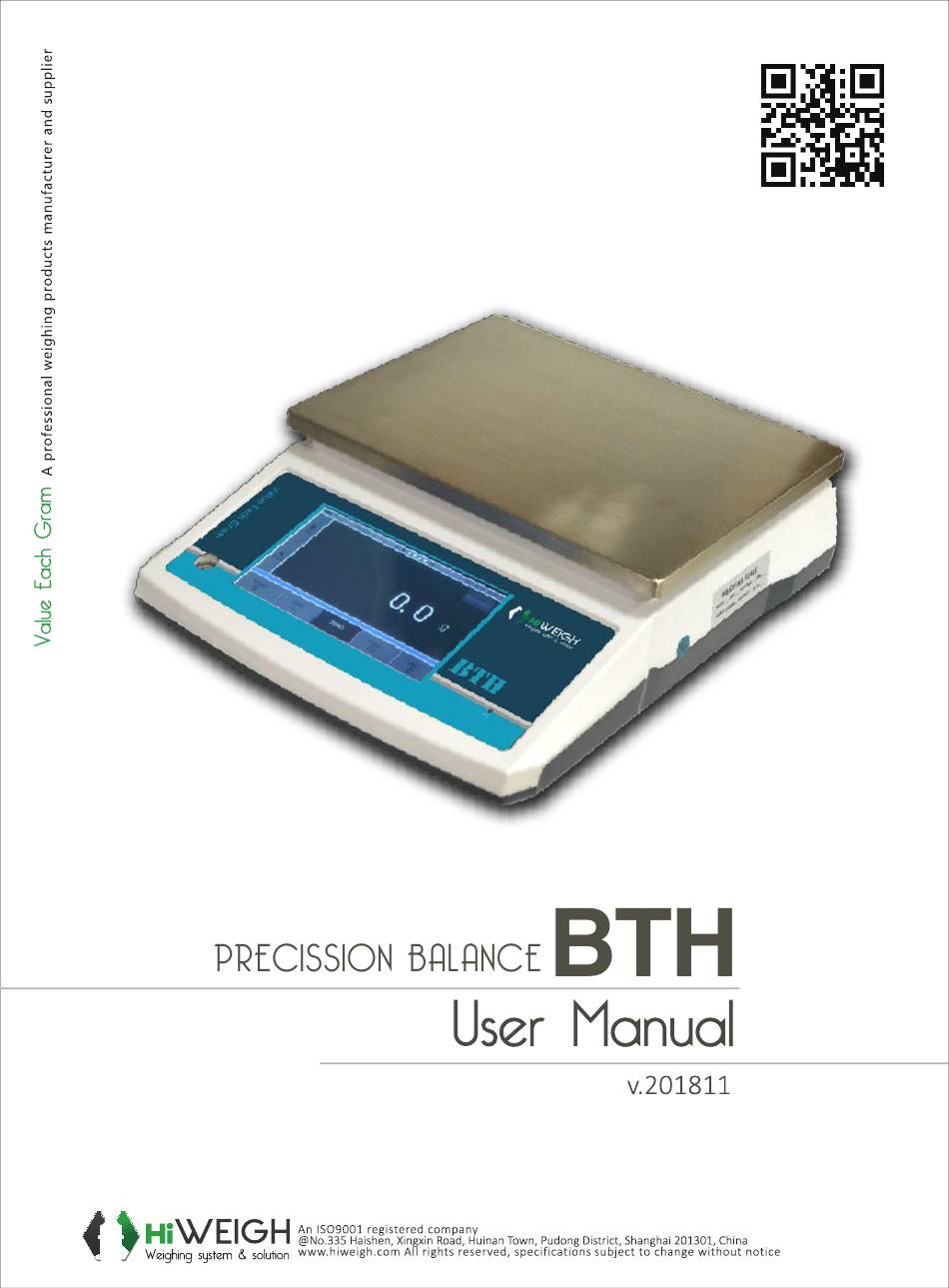

HiWeigh BTH Series User Manual

Precision balance
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BTH Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HiWeigh BTH Series

Summary of Contents for HiWeigh BTH Series

  • Page 3: Table Of Contents

    INDEX 1. ABOUT THE SCALE...................01 1.0. SPECIFICAITON....................01 1.1. FEATURES......................01 1.2 APPLICATIONS.....................01 2. THE WEIGHING MODE..................02 2.1 KNOW YOUR BALANCE..................02 2.2 WEIGHING MODE....................02 2.3 SYSTEM SETTING....................12 2.4 CALIBRATION.....................13 2.5 WEIGHING SYSTEM...................15 3. PRINT……….....................17 3.1 DATA OUTPUT.....................17 3.2 PRINTER SETTING....................17 4. TROUBLE SHOOTING..................20 5. DISPLAY CALIBRATION..................21...

  • Page 4: About The Scale

    1. ABOUT THE SCALE 1.1 Specification Model Range Division Repeatability Linearity Pan Size BTH10(C) 10kg BTH20(C) 20kg 0.1g ±3d ±3d 305x230mm BTH30(C) 30kg --- BTH*C are the models with internal calibration system 1.2 Features Stainless Steel Pan Super 7 inch HD Touch panel display RS232/RJ45/USB Interface Mains adapter supplied as standard Height adjustable feet Internal Auto Calibration(Optional) Selectable measure units: mg, g, oz, ct... Memory for accumulated time 1.3 Applications Weighing Net weight / tare Under weighing Piece counting function Density Test Percentage Test Check Weighing Accumulative total Output/Input ..

  • Page 5: The Weighing Mode

    2. THE WEIGHING MODE 2.1 Know Your Balance Thank you for selecting the BHT Series Weighing Scale! This Instruction Manual will guide you of the installation, accessories, trouble-shooting, after sales service information, general maintenance of the balance, etc. it will also guide you through the various applications. Please read this Manual thoroughly before starting the operations. If you need any clarifications, feel free to contact us. 2.2 Weighing Mode The BHT scale are ideal for laboratory and general purpose weighing. The scale can also be used for some advanced weighing functions. WEIGHING: Standard weighing mode CHECKING: Set the upper and lower limit for checkweigh function PECENTAGE: Compare the sample with standard sample. COUTING: Count the sample number and total quantity DENSITY: Testing the solid density value.
  • Page 6 2.2.1 Standard weighing mode Status Bar (Battery, Stable, Speed) Weighing mode choose Date and time Capacity and resolution Weighing value Note color (blue mean normal, red means overload) Key pad Auxiliary tools (Calibration, Mode choose, Language) The weighing function just use for weighing system. The sample weight will direct Showing in this page. And we can export the result in output and input page.
  • Page 7 2.2.2 Checking Status Bar (Battery, Stable, Speed) Weighing mode choose Date and time Capacity and resolution Weighing value Note color (blue mean normal, red means overload) Key pad Auxiliary tools(Calibration, Mode choose, Language) Tare weight: Put the container, press tare, the tare weight will show here. G.W: Gross weight Total weight and test number Upper and Lower limit setting...
  • Page 8 Upper and Lower Setting: Step 1: press the Upper or Lower digit. Step 2 Press The Enter Input box. Step 3 Enter the digit for upper limit. The lower limit use same steps.
  • Page 9 2.2.3 Percentage Status Bar (Battery, Stable, Speed) Weighing mode choose Date and time 100% Weight sample XX% weight sample Percentage Note color (blue mean normal, red means overload) Auxiliary tools(Calibration, Mode choose, Language) Key pad Confirm mark Step 1: Press 100% then put on the weight, when it goes stable, press again It will mark a green square, so means 100% set success. Step 2: Press XX% then put on the weight, when it goes stable, press again It will mark a green square, so means xx% confirm. Step 3: Press %, it will come out the result.
  • Page 10 Counting Function 2.2.4 Status Bar (Battery, Stable, Speed) Weighing mode choose Date and time Capacity and resolution Weighing value Quantity Sample weight (1 pcs) Auxiliary tools (Calibration, Mode choose, Language) Counting details Key pad...
  • Page 11 COUNTING FUNCTION Step 1: Put on the sample weight. Step 2: Press the quantity. And enter the sample quantity. Steps 3:Back to the counting page and start the counting test. We also can direct enter the sample weight and use counting functions.
  • Page 12 Density Test 2.2.5 Status Bar (Battery, Stable, Speed) Weighing mode choose Date and time The solid weight in the air The solid weight in the liquid Setting the liquid density for solid test Note color bar (blue mean normal, red means overload) Auxiliary tools (Calibration, Mode choose, Language) Key pad Confirm mark The density test result This density function need use our density kits or under weighing function for density test. Density hook:...
  • Page 13 DENSITY TEST Step 1: Press Setting sample density and enter the density value. Step 2: Press weighing in the air,then put the sample on the top of density kit. When the weighing digit value stable, press again then will be show green square. Means confirm the weight in the air.
  • Page 14 Step 3: Press weighing in the liquid, then put the sample inside the liquid, when the weighing digit stable, press again then will be show green square. Means confirm the weight in the liquid. Step 4: Press the density, the result will be come out, the density unit is g/cm...

  • Page 15: System Setting

    2.3 System Setting 2.3.1 We can set the system parameters in system setting function The setting items include as blew: 1.weighing speed; (one means Fast,3 means slow) 2.stability; (one means high,3 means low) 3.language; 4.Printer; 5 Date and time setting.

  • Page 16: Calibration

    2.4 Calibration When after shipping or long time without use, we need use calibration for keep the weighing precision, in this function have 3 items function 2.4.1 One point calibration. 1.Press one point calibration, please operate follow the note, 2.It will display the value for one point calibration and show put on the weight, then put on the same value weight 3.When it displays move away the weight, then remove the weight. 4.Waiting it go zero. Calibration complete. 5.If choose internal calibration, please use the automatic calibration in the weighing page.
  • Page 17 2.4.2 Multi- Calibration. This function for calibration the liner, so it can keep liner precision. Please make sure you have enough weight for this operate, or it will make your scale no stable and no precision. 1.Press MULTI-CALIBRATION key, then operate as the note which will show in the touch screen, there will be show 3-point calibration value for this multi-calibration. 2.After calibration, you can check the liner with your standard weight. 2.4.3 Internal Setting This function is setting the internal calibration period; operator can choose the automatic calibration time for itself calibration.

  • Page 18: Weighing System

    2.5 Weighing System This setting only for pro operation, and before you setting, please confirm with our tech support for make sure whether the hardware suitable or not. 2.5.1 CAPACITY AND RESOLUTION SETTING We can change the capacity and resolution for each scale. (Need Password) 1. Press CAPACITY RESOLUTION key enter the setting. 2. Press enter blank, then enter the capacity value you want. Press confirm. 3. Press BACK complete setting.
  • Page 19 4. We can use same operate enter the resolution setting. 2.5.2 CALIBRATION SETTING After setting the capacity, we must set the calibration point for keeping best liner ability. 1.One point calibration means we set one point calibration weight. We advise you choose calibration point ≥20%*Capacity, it can be reduced error, you’d better choose the full range as one point calibration 2.MAX: Setting the full capacity weight. (Keep first number,6200g will set 6000g) 3.HALF: Setting 50% weight value. (Example: capacity 6200g, we set 50%:3000g) 4.MIN: Setting small point 30% capacity, the better way is one weight can meet require, for example 6200g, we can set 1kg or 2kg.

  • Page 20: Print

    2.5.3 INPUT AND OUTPUT The weighing scale can output the weighing data and test report to the excel document. And the base setting also can output to the USB pan (≤4G). We can store this base setting and copy to another machine. Step 1. Press Output/Input key. Step 2. Insert the USB pan, you will see the usb icon show in the upper bar Step 3. Choose the output or input you want. Step 4. There will be note you output or input complete. 2.5.4 AUXILIARY KEY SETTING We can set the CAL key function for 1. External calibration or 2. Internal calibration. 3. PRINT 3.1 Data Output Model or a decimal point A space or a decimal point A space or * + or - or a decimal point data Data or a decimal point Data or a decimal point Data or a decimal point Data or a decimal point Data or a decimal point Data or a decimal point Data Unit 1 Unit 2 Unit 3 Enter Wrap...

  • Page 21: Printer Setting

    3.2 Printer Setting We can choose the suitable baud rate and communication style for different print or connect with the computer. There are five kinds of print format for label print, we can choose the mode, then enter the information which the operation need. And we also can choose the baud rate and communication which we need. Step 1: Choose the mode which you use.
  • Page 22 Step 2: Choose the suitable baud rate and communication mode. Step 3 Enter the operator information. Press Confirm can enter the input information.

  • Page 23: Trouble Shooting

    4. TROUBLE SHOOTING If you come across any problem, you can check it by you self and find the reasons. FAULT REASON SOLUTION No display 1.Not connected to the power 1.Plug in the power line; supply; 2.Replace the fuse; 2.Fuse is broken; 3.Replacement of power 3.Power transformer damage; transformer; 4.The chips lose memory 4.Multi-Calibration the balance 5.The cable loose 5.Check the cable which connect display with mainboard. Contact factory Weighing Bad working conditions; Keep the environment stable, close unstable The wind screen is open the windows and doors Something between the table Close the glass door and balance Take away the things The power unstable Connect the stable power Weighing unstable The weighing The balance not calibration. Calibration.

  • Page 24: Display Calibration

    V. DISPLAY CALIBRATION Calibration the touch panel 1.Use two fingers quick touch blank place fast until show the blue display 2.Touch the “+” in the left top side corner. And it will go to right-top side, please touch again 3.Then it will go to right down side, and press it, so calibration complete.

This manual is also suitable for:

Bth10Bth10cBth20Bth20cBth30Bth30c
