Summary of Contents for HiWeigh PHA

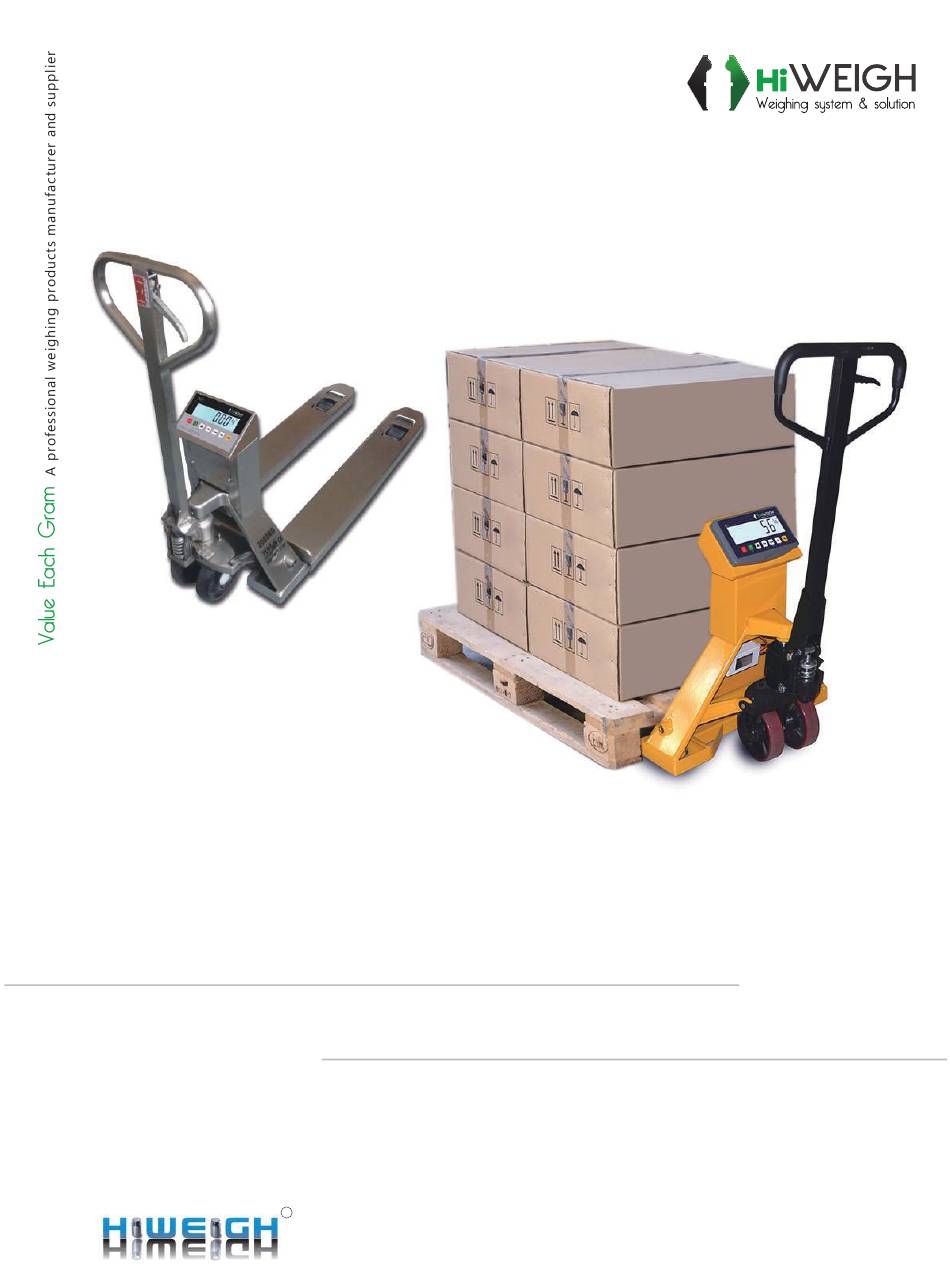

- Page 1 PHA |PHAS Pallet Scale User Manual v.201802 An ISO9001 registered company @No.335 Haishen, Xingxin Road, Huinan Town, Pudong District, Shanghai 201301, China www.hiweigh.com All rights reserved, specifications subject to change without notice...
-
Page 3: General Specifications
Thank you for using this hand pallet truck with scale. For your safety and correct operation of the scale, please read these instructions carefully before using it. NOTE: 1. All of the information reported herein is based on data available at the moment of printing. The factory reserves the right to modify its own products at any moment without notice and incurring any sanction. -
Page 4: Daily Check And Maintenance
3. TO ADJUST RELEASE DEVICE On the handle of the pallet truck, you will find the control lever (H01) which can be set in three positions (See Fig. 1): LOWER=to lower the forks; NEUTRAL=to move the load; ASCENT=to raise the forks. After assembling the handle, you can adjust the three positions. -
Page 5: Troubleshooting
5. GUIDE TO SAFE OPERATION For safe operation of the truck, please read all warning signs and instructions here and on the truck before using this truck. Do not operate the pallet truck unless you are familiar with it and have been trained or authorised to do so. Do not operate the truck unless you have checked its condition. - Page 6 7. WEIGHING OPERATION (Detailed Info Please Refer to Chapter 11 and later). Put the control lever in the LOWER position and lower the truck to lowest position. Press the ON key to turn the system on. After the start-up sequence the indicator will display the weight. Weighing method for gross weight: Press the ZERO key to set the gross weight to 0.
- Page 7 9. WIRING DIAGRAM OF JUNCTION BOX Connect meter connector Connect sensor connector L1 L4 silver silver white white green green black black 10. CHANGING THE PAPER (optional with Printer) 10.1 Pull the lever to open the cover of the printer. Place the paper roll. Make sure the flap is at the top of the printer, facing towards you.
- Page 8 Keypad K7 series indicator with7 function keys: BUTTON FUNCTIONS SHORT ON THE MANUAL Power Off [ON] Power On [OFF] Print [PRINT] Long press to display time/date User function set [FN] Long press to exchange weight unit Enter function during parameters configuration Accumulate [ACCU] Long press to retrieve weight records...
- Page 9 If the indicator not on zero point and the weight value <2%F.S., push [ZERO] key to zero the scale, and the zero arrow will display 12.3 Tare Manual Tare: Put the container on the scale (weight>0) and after the read stable (also the tare arrow not appear), push [TARE] the scale will remove the weight read and record as tare, and the scale will display the net weight, push [TARE] again, it will display the gross weight (tare + net weight)
- Page 10 Push [FN] [ PrInt ] Communication, Printing Format and Percentage Set Push [FN] [ PErC ] Set weight value for percentage weighing (100%) Push [FN] [ SEtP ] Set setpoints Push [FN] [ PCS ] Set samples quantity (Aut=07) Push [FN] [ 0.002] 10 times resolution Push [FN]...
- Page 11 [ b1 24] COM1 baud rate select: Push [ → ] and [ ] 24=2400 48=4800 96=9600 144=14400 192=19200 or [ ↓ ] Push [FN] [CHE1 n] COM1 Check mode Push [ → ] and [ ] n: None or [ ↓ ] E: Even check Push [FN] O: Odd check...
-
Page 12: Percentage Weighing
Push [PRINT] or [25¯255] 087: ASCII code, 087 represents M, 079 represents O… (refer [ON] to next letter to appendix I) and input 255 to end the head Push [FN] to end [00¯077] Bottom head input (total 64 letters): Push [ ] or [ ↓ ] [01¯079] 00: The sequence of letter and [ →... - Page 13 [000000] Push [ ] or [ ↓ ] [000300] Push [FN] [C01000] C setpoint input Push [ → ] [000000] Push [ ] or [ ↓ ] [000400] Push [FN] Push [ → ] [D01200] D setpoint input [000000] Push [ ] or [ ↓ ] [000500] Push [FN] 0.0]...
-
Page 14: Automatic Tare
Long press [ACCU] Display the accumulated times [ C 532] Display the total quantity Push [ ] [ C 108] Back to counting mode Push [FN] Push [ ↓ ] When it displays the accumulated times, push [ ↓ ] to clean the accumulated value and back to counting mode Positive/Negative Weighing (Aut=08) -
Page 15: Communication Protocol
Weight Record Retrieve and Print Operation Display Explanation 27 ] On weighing mode Long Press [ACCU] Display the accumulated times Push [ → ] [000008] Input the serial number of the weight record Push [ ] or [ ↓ ] to change Display the sequence number of that record Push [FN]... - Page 16 Start Sign Weight Space Unit Enter 0x02 >=0, 0x20 (space) include decimal point 0x20 0x0D kg/lb/t <0, 0x2D (-) Ct3: No matter the weight stable or not, continuous output the Ct2 data. 2. Command (Cnd) COM1: Modbus COM2: Handshaking, the computer send the request (ASCII) as below: P –...
-
Page 17: Setpoints Output
14:58:26 14:58:26 No.0002 No.0002 S: 25.02kg C: 108pcs S: 25.02kg Setpoints Output A B C D 4 setpoints, A<B<C<D Relay board optional, not included in standard package 26.1 oP=1 (2 relay output 1# and 2#) W<A or W>D: Hi/Ok/Lo LED lights off and no relay output A W B: Lo LED on, 1# relay output B<W<C:... - Page 18 Pin9: 4# relay NO (normally open) Trouble Shooting ERR0R Precaution • Indicator should be far away from heat resource while using, avoid direct sunlight • Do not place the indicator in the dusty surroundings or the site vibrant • Keep out of chemical erosion, operating temperature range will be -10...40ºC, relative humidity is no less than 85%, without any corrupt gas in air.
- Page 19 • The indicator will charge the internal battery at all times when it is connected to the main power. • When the battery <20%, the battery icon will be empty like [ ] which indicates the recharge on time, when the battery almost empty, the display will twinkle to indicate the immediate charge. •...
- Page 21 PHAS...
