Summary of Contents for HiWeigh WX

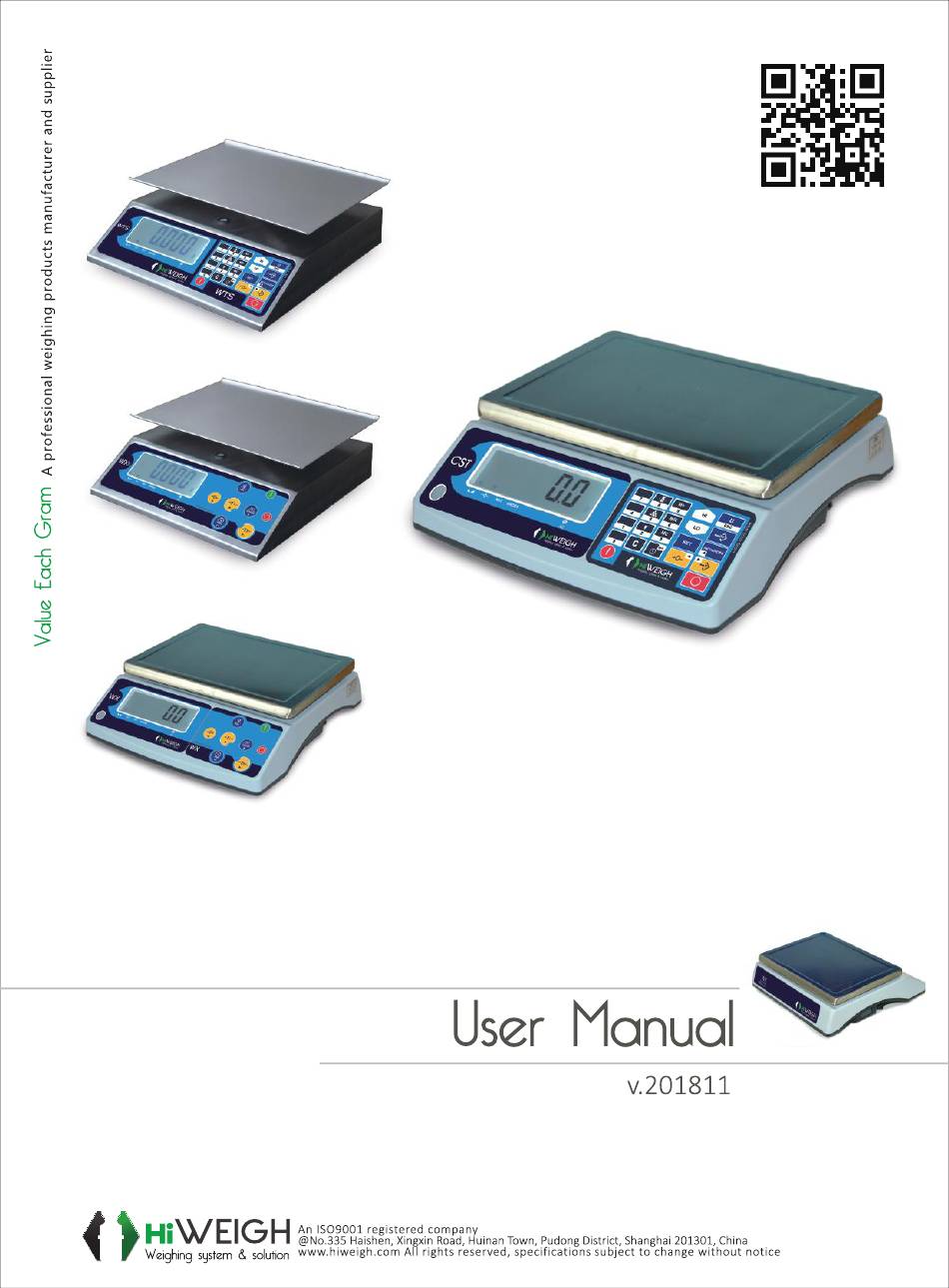

- Page 1 TABLE SCALES WX(S)-CST-WTS...
- Page 3 @WX WXS CST WTS USER MANUAL Important Safety And Operation Info Please read the manual in details before operation Please use the right plug and right voltage Be much attention of 110V or 220V!!! Adjust the bubble level on the balance position Don’t hit the platform rudely and overload...
-
Page 4: Table Of Contents
@WX WXS CST WTS USER MANUAL INDEX Specifications Power Before using System power consumption Display description Basic function operation Basic parameter setting - A/D count - High / Low limits setting - Auto-power off - Backlight setting - Hold function... -
Page 5: Specifications
@WX WXS CST WTS USER MANUAL SPECIFICATIONS Accuracy: Class III Nonlinear: ≤0.01%F.S System working voltage: DC:5V Large display connector: Sampling serial output way Sample rate: 20 times per second (can select) POWER Input: 120~240V Output: 12V/1A Rechargeable battery: 6V/4AH BEFORE USING 1) Place this product on a firm and smooth place, don´t place it in vibration or shaking,... -
Page 6: Basic Function Operation
@WX WXS CST WTS USER MANUAL CST | WTS Model: BASIC FUNCTION OPERATION (WX | WXS) Press and hold this key for 2 seconds to turn off the balance. Press this key to turn on the balance Function 1. To select the desired weight unit. - Page 7 @WX WXS CST WTS USER MANUAL Function 1. To select the desired weight unit. Function 2. To exit from setup mode. Function 1. To reset the weight to zero “0”, but the display value has to lesser than ± 2% of maximum capacity.
-
Page 8: Basic Parameter Setting
@WX WXS CST WTS USER MANUAL Backlight To clear data BASIC PARAMETER SETTING Note: (WX keys = CST keys) To access to functions setting, press the key at the same time. Press the to select the parameter (UF-1 ~ UF-9) UF-1 A/D count 1. -
Page 9: Auto-Power Off
@WX WXS CST WTS USER MANUAL UF-3 Auto-power off Modes: AoFF 00 – Auto-turn off disable. AoFF 01 – The balance will automatically turn off after 1 minute of non use. 1. Press the key to access to auto-power configuration. -
Page 10: Rs-232 Output
@WX WXS CST WTS USER MANUAL UF-6 RS-232 Output (optional) 232 0 - RS-232 disable 232 1 - Stable output – Format 1 232 2 - Stream output – Format 1 232 3 Manual output – Format 1 232 4 - Stable output –... - Page 11 @WX WXS CST WTS USER MANUAL Fixed 18 BYTES ASCII (kg g t lb) 1 2 1 1 2 1 1 2 3 4 5 6 7 8 1 2 1 2 HEAD1 HEAD2 DATA UNIT CR Fixed 21 BYTES ASCII (tl.T lboz)
-
Page 12: Rs-232 Speed Setting
@WX WXS CST WTS USER MANUAL Output examples : 1. Example +0.876 kg stable net weight : 2. Example -1.568 lb unstable gross weight : 3. Example -20. 5.40 lb oz unstable gross weight : 0D 0A 4. Example +1000 pcs stable net weight : UF-7 RS-232 Speed setting 1. -
Page 13: Advanced Function Setting
@WX WXS CST WTS USER MANUAL ADVANCED FUNCTION SETTING 1. In weight mode, press the keys, the display will show ECF – 1. 2. Press the keys to select ECF-1, ECF-2 or ECF-3 * ECF-1 Check weighing (SPAN) Press the to enter, display will show CALZ. - Page 15 User Manual v.201811 WX(S)-CST-WTS...
