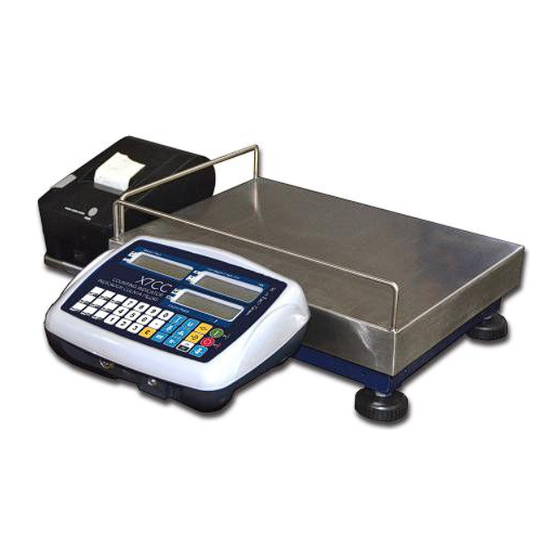

Counting scale

Advertisement

CSX CCX CSS CC7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CSX Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HiWeigh CSX Series

  • Page 1 CSX CCX CSS CC7...
  • Page 3 Please recharge the scale on time to protect the battery, and replace it if it runs out of life. The battery needs to be recharged every 3 months if it’s not used for long time. The replaced battery must be handled correctly. Please use the scale on the stable table or platform.
  • Page 4 Keypad of CSX and CSS Keypad of CC7 Display of CCX...
  • Page 5: Keyboard Description

    KEYBOARD DESCRIPTION KEYS FUNCTION To turn off the scale, keep the OFF key pressed until the display shows “Off” Press this key to turn on the balance. To select the weighing unit. Function 1: To reset the weight to 0, but the displayed weight value has to be less than ±...
  • Page 6 To access the counting function. Memory recover function. Accumulation Key. Clear Key. Choose PLU Number keys. STANDARD CALIBRATION Press the key and the key to start Standard Calibrations. ECF-1 Weight Calibration (Zero and Span). ECF-2 Zero Calibration. ECF-3 SPAN Calibration. ECF-1 Weight Calibration 1.
  • Page 7: Counting Pieces Function

    ECF-2 Zero Calibration 1. Press the key to start and go to the ECF-2 mode, and press the key to exit menu and back to weighing mode. 2. Press the key to set the zero weight. 3. Calibration procedure completed and the scale will return back to weighing mode automatically.
  • Page 8: Functions Setup

    Number of pieces setup Use the 0-9 numbers keys to input the desired sample quantity, when the display weights shows the weight, press the key, the piece weight window shows the unit weight and total count window displays the total pieces number.
  • Page 9 UF-2 Piece Weight Auto-average AAVG 0: Disable AAVG 1: Enable 1. Press the key to start. 2. Use 0 and 1 keys to enable or disable auto-average function. 3. Press the key to confirm. 4. Press the key to exit. UF-3 Auto Power-off Modes: ・...
  • Page 10 UF-4 Backlight Modes: ・ Lit 2: Backlight off. ・ Lit 0: Auto light-up. ・ Lit 1: Backlight on. Factory default: Lit 0 (Auto light-up). 1. Press the v key to access display backlight programming. 2. Use 0 ~ 2 key to select backlight mode. 3.
  • Page 11: Communication Protocol

    Factory default: ACCU00 (Stable required and the weight has to return to zero). UF-6 RS232 Output 0. Baud rate 1200 1. Baud rate 2400 2. Baud rate 4800 3. Baud rate 9600 4. Baud rate 19200 0. RS232 output disable 1.
  • Page 12: Output Examples

    Start-Bit Data bits Stop-Bits Format 1 (232 1 – 3) HEAD 1 (2 BYTES) HEAD 2 (2 BYTES) OL – Over Load ST – Stable NT – Net Weight US – Unstable GS – Gross Weight Fixed 20 BYTES ASCII Head 1 Head 2 Data...
  • Page 13 Format 2 (232 x1) Press the key to output. Press the key for 3 seconds key to output. 1. Press the key to access programming functions. 2. Use 0 ~ 4 keys to enter RS232 output formats. 3. Press the key to confirm.
  • Page 14 UF-7 ADC Update Rate SPEEd 0 Low speed 7.5 hz. SPEEd 1 Standard speed 15 hz. SPEEd 2 High speed 30 hz. Factory speed: SPEEd 0 1. Press the key to access programming functions. 2. Use 0 ~ 2 keys to enter ADC speed. 3.
  • Page 16 CCX CSX CSS CC7...
