Page 3: Before Use
Before Use Safety precautions WARNING! ▲ Do not use NSS weighing scale in hazardous area! Do not use it within areas classified as hazardous division 1/2 or zone 0/1/2/21/22 because of combustible or explosive atmospheres. Never immerse it in corrosive chemical liquid. Static sensitive device, it must be handled only by qualified technicians. Improper handling may damage the circuit card and the device, which is not covered by the warranty. DANGER! Electric shock hazard! Always unplug the adaptor before performing any service work on the scale! Disposal In conformance with the European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), this device may not be disposed of in domestic waste. This also applies to countries outside the EU as per their specific regulations. Please dispose of this product in accordance with local regulations at the collecting point specified for electrical and electronic equipment. If you have any questions, please contact the responsible authority or the distributor from which you purchased this indicator. Should this scale be passed on to other parties (for private or professional use), the content of this regulation must also be related. The scale has a rechargeable internal battery. The battery contains heavy metals. Please observe the local regulations on the disposal of environmentally hazardous materials. All Rights Reserved, any copying, reproducing, republishing, posting, distributing by any means is prohibited without permission of our company... - Page 4 Index Technical Specifications Model Identification Packing List Load Cell Keyboard Application Weighing Checkweigh Multi-range & Multi-interval Parameters Configuration UF-1 Internal Counting (A/D) UF-2 Checkweigh Setting UF-3 Auto Switch Off UF-4 Standby Mode (LED version) | Backlight Set (LCD version) UF-5 Hold (LED version) | Response Speed (LCD version) UF-6 Hold (LED version) | Auto Zero Track (LCD version) UF-7 Response Speed (LED version) | Gravity (LCD version) UF-8 Auto Zero Track (LED version) | RS232 (LCD version, no function) UF-9 Gravity (LED version) User Calibration ECF-1 Calibration of Zero and weight ECF-2 Calibration of Zero ECF-3 Calibration of weight Warranty...
-

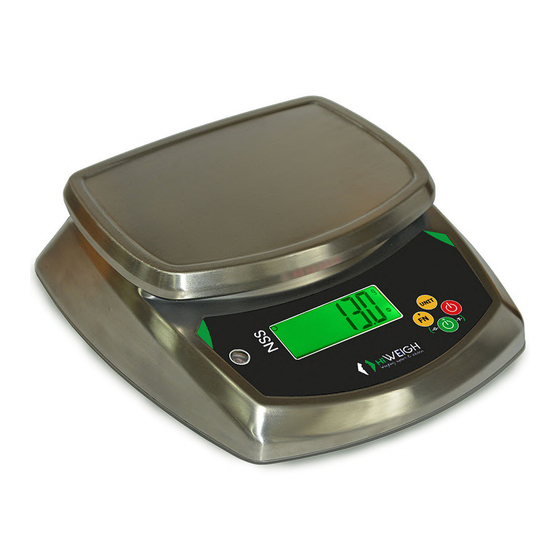

Page 5: Technical Specifications
1. Technical Specifications Model NSS Enclosure Type SUS304 Product Dimension 330 x 290 x 110mm Shipping Weight 4.8kg Accuracy Class III Display Resolution 1/6,000 Capacity 3 | 6 | 15 | 30kg Division 0.5g | 1.0g | 2.0g | 5.0g Units Kg, g , lb, etc. Display LED or LCD Power 100-240V – 12V1Ah AC/DC adaptor Battery 6V4Ah Protection IP67 Operating Temperature -10 ~40 Storage Temperature -25 ~55 Relative humidity 85%Rh non-condensing 2. Model Identification... - Page 6 4. Load Cell PCB Load Cell +E………….………Excitation + +S………….………Signal + SHIELD…….…….Shield -S ………….………Signal – -E………….………Excitation – 5. Keyboard On - Switch on the scale Zero - Zero the scale, when the weight less than +2%F.S. Tare - Tare function, to deduct the weight of a container Move the digit to right during program set Off - Keep pressing the key for 3 seconds to switch off the scale - Access to the functions of scale Function Increase the digit during program setting Enter the calibration by keeping this key for 3 seconds Unit - Change the weight unit Exit from the program setting In the below contents, use key [ON] [OFF] [FN] [UNIT] represent as above buttons. 6. Applications 6.1 Weighing Switch on the scale and wait self-checking finish, if the scale display 0, now it’s ready for weighing; if the scale doesn’t display 0, press [ON] key to zero the scale. Put the commodity on the pan of the scale, it will show the weight.
-
Page 7: Parameters Configuration
6.3 Multi-range & Multi-interval The standard version with only one range and division, but the scale can be set as multi-range or multi-interval, refer to LF-2 parameters setting. If it set to be multi-range or multi-interval, it will work as below: Multi-interval: 0 – 50%F.S. with the interval as it selected (A), 50%-100%F.S. with the next interval (B), when the weight decrease, it will change from B to A when the range change from above 50%F.S. to less 50%F.S. Multi-range: 0 – 50%F.S. with the interval as it selected (A), 50%-100%F.S. with the next interval (B), if the weight decrease from above 50%F.S., it will use interval B until the scale is empty. 7. Parameters Configuration To access the configuration of the parameters, the scale must be in zero condition, and press the [FN] key to enter and press it again to select the setting from UF-1 to UF-9 (LCD version till UF-8), press [UNIT] key to quit. 7.1 UF-1 Internal Counting (A/D) When UF-1 selected, press [ON] key to enter it will display the A/D counting , Press (example: 2704565) [ON] again, it will display the battery voltage, press [ON] key again to exit this mode. 7.2 UF-2 Checkweigh Setting When UF-2 selected, press [ON] key to enter, the display will show the message 000.00L (the under limit), use the key [ON] and [FN] to move the cursor and select the number needed, when all number input, press [ON] key to confirm and the display will show the message 000.00h (the over limit), use the key [ON] and [FN] to move the cursor and select the number needed, and when all input, press [ON]... - Page 8 Press key [ON] to enter this menu and use [FN] + [ON] key to select the right number and then press [ON] to confirm. dSP 00: Deactivate dSP 01: Standby after 1 second no use of the scale dSP 02: Standby after 2 seconds no use of the scale … dSP 99: Standby after 99 seconds no use of the scale default set = 10 Backlight Set (LCD version) Press key [ON] to enter this menu and press [ON] again to move the cursor and press key [FN] to select the right mode and then press [ON] to confirm. Automatic ON Illumination activated OFF Illumination deactivated 7.5 UF-5 Hold (LED version) Response Speed (LCD version) Press key [ON] to enter this menu and press [ON] again to move the cursor and press key [FN] to select the right model and then press [ON] to confirm.
-
Page 9: User Calibration
7.9 UF-9 Gravity (LED version) Press key [ON] to enter this menu and view the current gravity, and press key [FN] and [ON] to set the new gravity if you want, and then press [ON] to confirm. 8 User Calibration When the scale in normal weighing mode, the user can press [FN] to enter and select ECF setting from ECF-1 to ECF-3 8.6 ECF-1 Calibration of Zero and weight Press [ON] key, it will show CAL Z Press [ON] key to confirm the zero calibration (keep nothing on the scale) Press [ON] key to move the cursor and press [FN] key to input the weight value. Place the weight on the pan of the scale and press [ON] to confirm calibration. 8.7 ECF-2 Calibration of Zero Press [ON] key, it will show CAL Z Press [ON] key to confirm the zero calibration (keep nothing on the scale) 8.8 ECF-3 Calibration of weight...
