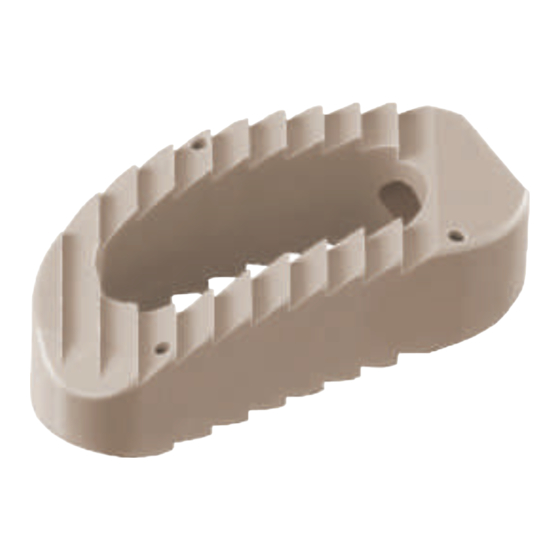

- Page 1 Assembly and disassembly instructions with special cleaning instructions pezo ™ PEEK cage family...
- Page 2 Notes regarding assembly and disassembly instructions This document lists all assembly and disassembly instructions available for the pezo system. The instruments must be disassembled according to the manufacturer’s instructions to ensure the processing and storage. The product descriptions in the component overview and in the descriptive text are listed in English according to the inscription on the instruments.
- Page 3 Contents pezo™ assembly and disassembly instructions for CS 3360-XX inserter pezo™ assembly and disassembly instructions for CS 3361-XX correction instrument pezo™ Assembly and disassembly instructions...
- Page 4 pezo ™ assembly and disassembly instructions for CS 3360-XX inserter CS 3360-XX inserter, consisting of: Product number Product description CS 3360-01/-05 Inserter, length 300 mm/410 mm CS 3360-02/-06 Locking rod, length 300 mm/410 mm CS 3360-09 Adjustor CS 3360-XX inserter pezo™ Assembly and disassembly instructions...
- Page 5 Assembly instructions Assembling the inserter Insert CS 3360-09 (Adjustor) into the cage of CS 3360-01/-05 (Inserter, length 300 mm/410 mm). Then slide CS 3360-02/-06 (Locking rod, length 300 mm/410 mm) into CS 3360-01/-05 (Inserter, length 300 mm/410 mm). CS 3360-09 (Adjustor) must be secured against falling out.
- Page 6 pezo ™ assembly and disassembly instructions for CS 3360-XX inserter Disassembly instructions Disassembling the inserter By turning CS 3360-09 (Adjustor) counterclockwise (in the direction of the "open" arrow) move CS 3360-02/-06 (Locking rod, length 300 mm/410 mm) backwards until it is visible on the handle.
- Page 7 Special cleaning instructions No special cleaning instructions. The general cleaning instructions contained in the "Processing manual implants and instruments" UH 1100 apply. pezo™ Assembly and disassembly instructions...
- Page 8 pezo ™ assembly and disassembly instructions for CS 3361-XX correction instrument CS 3361-XX correction instrument, consisting of: Product number Product description CS 3361-01/-05 Sleeve correction instrument, length 300 mm/410 mm CS 3361-02/-06 Locking rod correction instrument, length 300 mm/410 mm CS 3361-09 Adjustor correction instrument CS 3361-XX correction instrument pezo™...
- Page 9 Assembly instructions Assembling the correction instrument The correction instrument sleeve CS 3361-05 (Sleeve correction instrument, length 410 mm) and the locking rod for the correction instrument CS 3361-06 (Locking rod correction instrument, length 410 mm) are stored in a pre- assembled condition.
- Page 10 pezo ™ assembly and disassembly instructions for CS 3361-XX correction instrument Disassembly instructions Disassembling the correction instrument Pull CS 3361-01/-05 (Sleeve correction instrument, length 300 mm/410 mm) out of the sleeve of CS 3361-02/-06 (Locking rod correction instrument, length 300 mm/410 mm). Loosen CS 3361-09 (Adjustor correction instrument) by turning it clockwise (left-handed thread)
- Page 11 Special cleaning instructions No special cleaning instructions. The general cleaning instructions contained in the "Processing manual implants and instruments" UH 1100 apply. pezo™ Assembly and disassembly instructions...
- Page 12 ulrich GmbH & Co. KG l Buchbrunnenweg 12 l 89081 Ulm l Germany Phone: +49 (0)731 9654-0 l Fax: +49 (0)731 9654-2705 spine@ulrichmedical.com l www.ulrichmedical.com...
