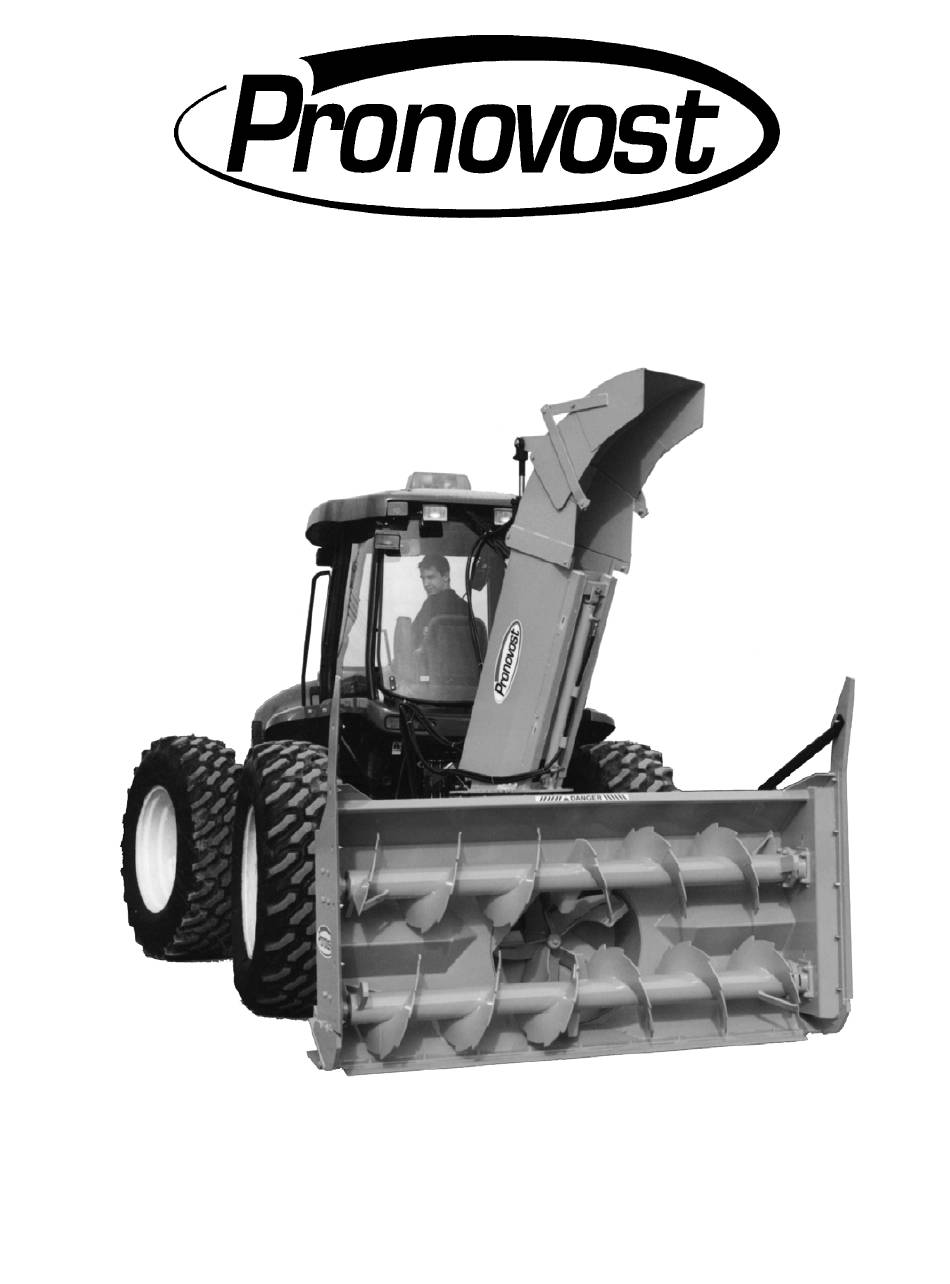

INTRODUCTION CONGRATULATIONS! Thank you for choosing PRONOVOST. We are NOW take a moment to enter the model, serial confident this equipment will meet your requirements number and the date of purchase of your Snowblower in terms of quality, performance and reliability.
SAFETY GENERAL SAFETY WHEN YOU SEE THIS SYMBOL 8) Prolonged exposure to noise may hamper hearing. Protect yourself by wearing adequate protection devices. 9) Hydraulic fluids under pressure can damage your skin. Do not use your hands to locate a leak. 10) Before the beginning of the snow season, inspect all areas where the Snowblower will be used and remove any object which may cause an accident and/or damage...
SAFETY (cont'd) 2) Stop engine and relieve all hydraulic pressures before 10) Before unplugging the chute, always disengage the doing inspection, maintenance or repairs. P.T.O., stop the engine and relieve all hydraulic pressures. 3) Never perform any work under the Snowblower while it is supported only by the tractor's hydraulic system.
DECALS SAFETY DECALS The safety decals are affixed wherever special safety precautions are indicated. Locate them on the machine and read them carefully. If a decal is damaged, lost or illegible, install a new one. The following photos indicate where each one must be installed. Figure 3 Figure 4 Decal B...
Page 9
DECALS (cont'd) Figure 6 Decal C Part no.: A112 Figure 7 Decal D Part no.: A103 Figure 8 Decal E in Fig. 9 is located directly on the P.T.O. shaft. It is not visible when the safety shield is in place.
DECALS (cont'd) Figure 12 Part no.: A 105 Figure 13 Part no.: A 106 Figure 10 Decal F Part no.: A 109 Figure 14 Decal G Part no.: A104 Figure 11 MAINTENANCE DECALS The maintenance decals indicate the points requiring lubrication.
ASSEMBLY & STARTING-UP ASSEMBLY 1) The Snowblower is shipped partly assembled. 2) Install P.T.O. shaft and place the shear pin end on the Snowblower side. Then attach safety shield support chain as shown (Fig. 16). WARNING: The telescoping tubes of the drive shaft must never be allowed to bottom out while maintaining a minimum overlap of 6 inches.
MAINTENANCE 1) Wipe off all grease fittings with a clean cloth 6) Check oil level in gear box and chain case once a before adding grease in order to avoid injecting month. If necessary add oil. dirt and sand. 7) Check tension of drive chain every 25 hours of 2) Repair or replace damaged grease fittings.
STORAGE 1) Store the Snowblower in a cool, dry place. 5) Thoroughly inspect all parts of the Snowblower. Replace or repair worn or defective parts. 2) Support the Snowblower with wooden blocks. 6) Touch-up or repaint if necessary. 3) Keep all piston rods in the retracted position. This will assure better protection against the elements.
TROUBLESHOOTING P.T.O. SHAFT PROBLEM POSSIBLE CAUSE CORRECTION - Premature wear of U-joints and/ - Insufficient lubrication. - Follow lubrication or bluish color of cross journals. recommendations. - Replace defective U-joints. - Excessive working angle. - Make sure the Snowblower inlet face is perpendicular to the ground and if possible readjust 3-point hitch in order to position...
Page 15
TROUBLESHOOTING (cont'd) SNOWBLOWER PROBLEM POSSIBLE CAUSE CORRECTION - Raise P.T.O. speed to a minimum - The snow is not being thrown as - Tractor RPM too low. of 540 RPM. far as usual. - Adjust impeller blades closer to - Gap too wide between impeller drum outlet (1/8"...
CYLINDER 25TR08 15050 REF. PART # DESCRIPTION See RK25TR O-ring 1/8" x 2¼" x 2½" ................See RK25TR Back-up 2½" o.d. x 3/16 ø ................. See RK25TR O-ring 3/16" x 2 1/8" x 2½" ............... See RK25TR O-ring 1/16" x 5/8" x 3/4" ................See RK25TR O-ring 1/8"...
CYLINDER # 190-03531 (25TR08 modified) 170-02381 REF. PART # DESCRIPTION See RK25TR O-ring 1/8" x 2¼" x 2½" ................See RK25TR Back-up 2½" o.d. x 3/16 ø ................. See RK25TR O-ring 3/16" x 2 1/8" x 2½" ............... See RK25TR O-ring 1/16"...
CYLINDER 20G28 170-00671 REF. PART # DESCRIPTION BU-326 Back-up 3/16" x 1 5/8" x 2" ............... OR-326 O-ring 3/16" x 1 5/8" x 2" ................OR-016 O-ring 1/16" x 5/8" x 3/4" ................OR-216 O-ring 1/8" x 1 1/8" x 1 3/8" ..............BU-216 Back-up ring 1/8"...
WARRANTY PRONOVOST warrants this product to the initial All PRONOVOST spare parts purchased are covered purchaser for the period of one year from the date of by a three (3) month warranty. purchase against defects in materials and workmanship. This warranty becomes void and nul if the equipment...
