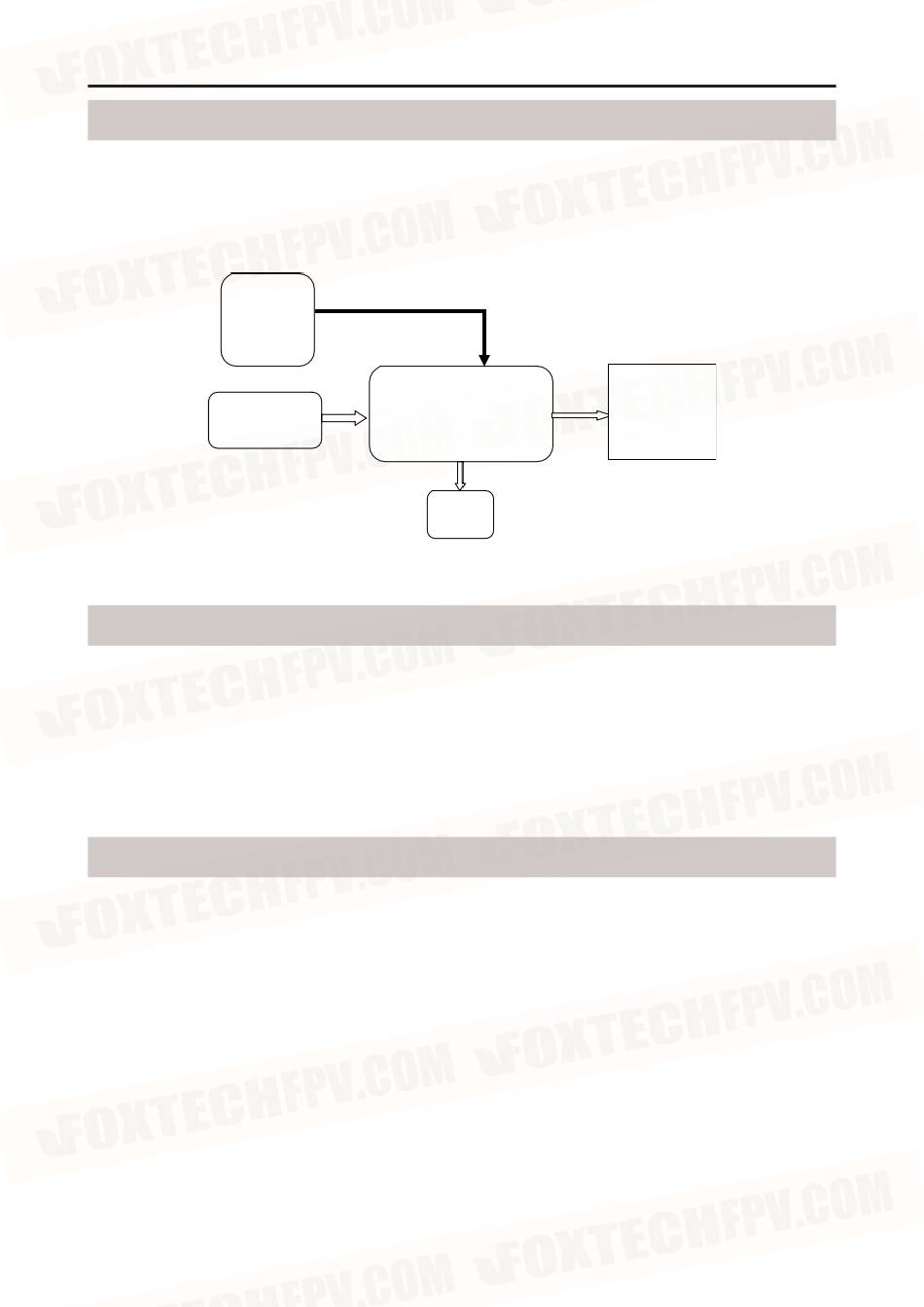

Main Components and Functions

The device consists of a thermal movement, a zoom visible light movement, and a stabilized gimbal. The
visible and thermal video streams are stored separately in the visible light movement, and synthesize
multiple picture-in-picture modes according to external control commands and output by HDMI.
Thermal
Module
Optical Zoom

Environment and Conditions of Working

· Working Environment -10 to +45 / 20% to 80% RH
· Storage environment -20 to +60 / 20% to 95% RH
· Transportation: After finish the package, the pod can meet the requirements of air, road, railway and
waterway transportation.

Technical Characteristics

Visible camera parameters:
- SENSOR Pixel 400 million pixels
- Focal Length f= 4.9to49 mm ±5%
- Field of view FOV
D : WIDE 66.6 ±5% TELE 7.2 ±5%
H : WIDE 53.2 ±5% TELE 5.3 ±5%
V : WIDE 399.8 ±5% TELE 4.2 ±5%
- Zoom: 10X electro-optical zoom
- Zoom mode: motorized zoom and continuously adjustable
- Image and video storage format
Image jpeg format Can choose multiple pixels
Video mp4 format Thermal infrared camera parameters can choose 1080P or 720P
ISP Processing,
Local recording,
Image Synthesis ISP
TF Card
2019 FOXTECH All Rights Reserved
©
Bi-Focus
User Manual
HDMI output
picture-in-picture
HDMI
5
