Summary of Contents for Foxtech Bi-Focus

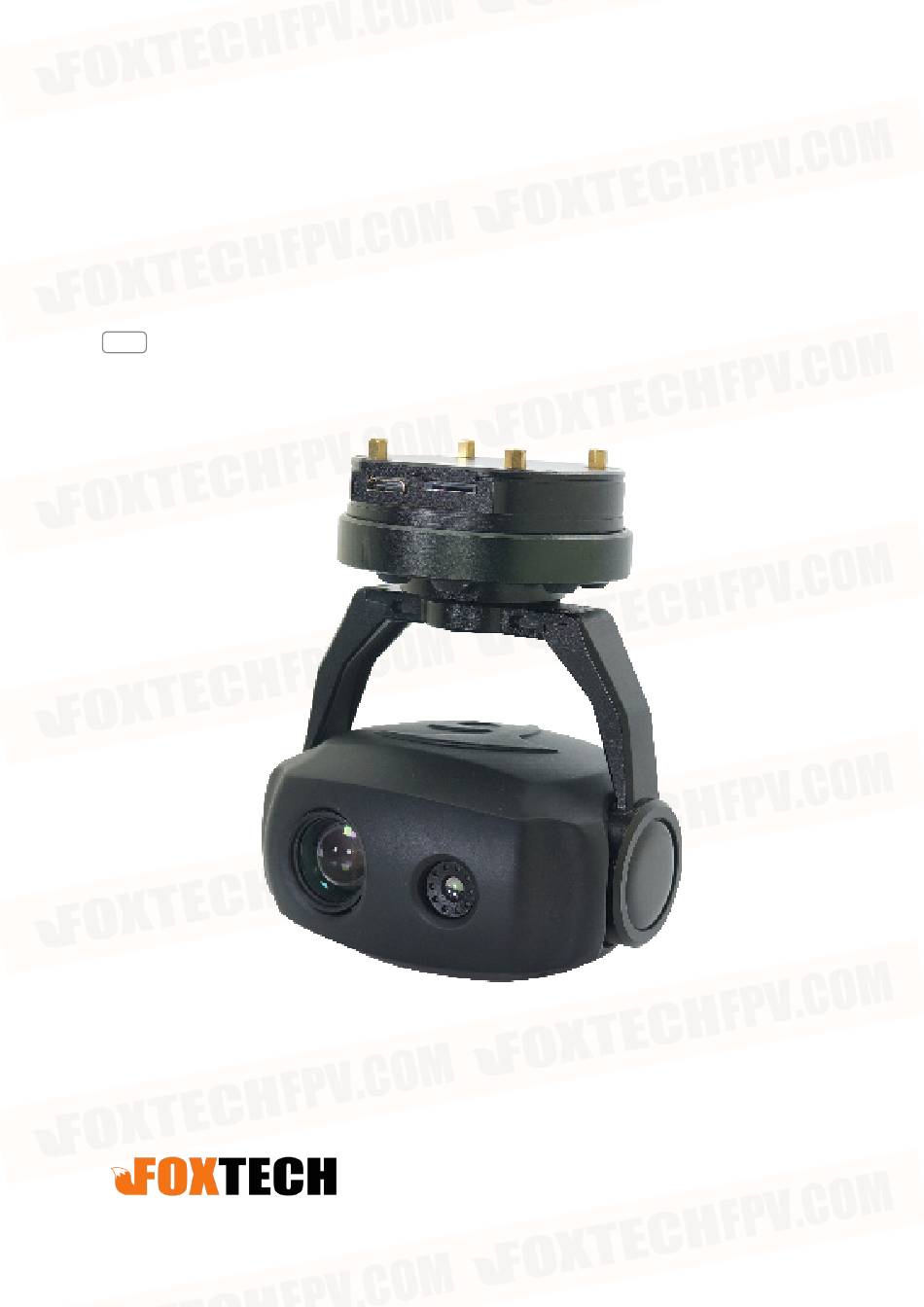

- Page 1 Bi-Focus 10X Optical Zoom 320x240 IR Thermal Camera with 2-axis Gimbal User Manual 2019.08 V1.0...
-
Page 2: Table Of Contents
Main Components and Functions Environment and Conditions of Working Technical Characteristics Installment and Debugging Install Screw Electrical Interface Communication Communication Pseudo-color Pattern Switching Gimbal Debbuging/Control Use and Operation Failure Analysis and Elimination Maintenance Transportation and Storage 2019 FOXTECH All Rights Reserved ©... -
Page 3: Warning
Disconnect the power supply before cleaning the pod. Do not use chemical solvents, thinners, or spray cleaners. · Ensure that the interface definition on the airborne side is correct; · Ensure that the supply voltage in the given range 3S~6S. 2019 FOXTECH All Rights Reserved ©... -
Page 4: Device Introduction
User Manual Device Introduction Foxtech Bi-Focus is a 2-axis high stabilized gimbal with a 10X optical zoom camera and a 320x240 thermal camera. Foxtech Bi-Focus has a small volume and light weight. The high precision 2-axis gimbal is based on FOC technology, which features high stability, accuracy and sensitivity. -
Page 5: Main Components And Functions
- Zoom: 10X electro-optical zoom - Zoom mode: motorized zoom and continuously adjustable - Image and video storage format Image jpeg format Can choose multiple pixels Video mp4 format Thermal infrared camera parameters can choose 1080P or 720P 2019 FOXTECH All Rights Reserved ©... - Page 6 ±0.03° - Control Method SBUS control IBUS control - UART Command control system boot preparation time 21S - Power supply 3S/6S - Power consumption 10W - Weight 480±10 gram - Volume 108mm*100mm*125mm L108 W100 2019 FOXTECH All Rights Reserved ©...
-
Page 7: Installment And Debugging
The external electrical interface of the device has four channels, which are power interface, communication interface (including SBUS communication and serial communication), HDMI video interface, and TF card interface. The video interface uses the HDMI type_C interface. The USB interface is used for debugging the pan/tilt stabilization parameters. 2019 FOXTECH All Rights Reserved ©... - Page 8 Gimbal Mode middle to high switch between follow mode and lock mode middle to low ZOOM + Digital ZOOM Some models support middle to high ZOOM - high and low to middle ZOOM stop 2019 FOXTECH All Rights Reserved ©...
- Page 9 Click the “Receive” button to get the current channel configuration status. Click the “Send” button to write the configuration after manually setting the channel configuration. Serial port status indicator (on)） Close the serial port Send data button Current status Data collection button display area 2019 FOXTECH All Rights Reserved ©...
-
Page 10: Communication
I: algorithm-related commands; E: thermal infrared related commands; P: pan/tilt related commands.. Target: U: Uart command M: lens related command; D: system and image related commands; Control position: r -- > query w -- > control data: according to the length Identity bit: identity function 2019 FOXTECH All Rights Reserved ©... - Page 11 The serial port controls of the ground terminal as follows: 1. Gimbal angle control, camera control and camera parameter configuration. 2. Gimbal angle control and camera control. 3. Gimbal speed control and camera control. 2019 FOXTECH All Rights Reserved ©...
- Page 12 Infrared Remote Control Gimbal movement supports infrared remote control. Pseudo-color switching Menu Night mode Left Right Thermal Zoom+ Video Down photograph Thermal Zoom- Picture-in-picture switching Focus + Zoom+ Focus - Infrared Remote Control Button Function 2019 FOXTECH All Rights Reserved ©...
-
Page 13: Communication
The HDMI output boot screen after the pod is powered on. The boot screen duration no longer than 21s, during which the PTZ and camera are initialized. After the initialization, the image is displayed: visible light + thermal infrared Thermal image Visible light image 2019 FOXTECH All Rights Reserved ©... - Page 14 2 Visible light larger one + Thermal image small one 3 Single thermal infrared 4 Thermal infrared larger one + Visible light small one 5 Visible light left + Thermal infrared right Split screen display Visible light Visible light + Thermal infrared 2019 FOXTECH All Rights Reserved ©...
- Page 15 Bi-Focus User Manual Thermal infrared Thermal infrared + Visible light Split screen display 2019 FOXTECH All Rights Reserved ©...
-
Page 16: Pseudo-Color Pattern Switching
Bi-Focus User Manual Pseudo-color Pattern Switching Pseudo color mode supports 10 color switching, which can be controlled by SBUS, serial port and infrared control switching, some mode displays in Figure: 2019 FOXTECH All Rights Reserved ©... - Page 17 When there is a TF card, the camera can be photographed by sending a photographing command, or the photographing command can be sent during the recording, and the photographing pixels can be 400W, 800W, 1300W or 1600W,the photo-taking time is saved to the photo properties. Memory card is not hot-swappable. 2019 FOXTECH All Rights Reserved ©...
- Page 18 Bi-Focus User Manual 2019 FOXTECH All Rights Reserved ©...
- Page 19 When there is a TF card, video recording can be performed by sending a video command. video resolution 1080P and 720P are optional. Infrared and visible light can be recorded simultaneously, sent again, stop recording, and the recording time is displayed in the middle of the right side. 2019 FOXTECH All Rights Reserved ©...
-
Page 20: Gimbal Debbuging/Control
When used for a period of time or when the ambient temperature changes drastically gimbal will have large drift that causes screen tilt or manual control inconvenience, and requires an automatic drift correction command to calibrate. 2019 FOXTECH All Rights Reserved ©... -
Page 21: Use And Operation
Disconnect the system power after using, and move the pod from the drone in a static-free environment. It should be stored in a dry and ventilated environment and should be placed in the box for long periods without using. 2019 FOXTECH All Rights Reserved ©... -
Page 22: Failure Analysis And Elimination
2019 FOXTECH All Rights Reserved ©... -
Page 23: Maintenance
-After normal work, adjust and test function through the handheld terminal of the drone, and find the problem ,keep detailed records. -If the problem cannot be solved by the method in this instruction manual, please contact us. 2019 FOXTECH All Rights Reserved ©... -
Page 24: Transportation And Storage
The product is stored in a dry, ventilated, non-corrosive atmosphere at a temperature of -20 ° C to +65 ° C and a relative humidity of no more than 95%. 2019 FOXTECH All Rights Reserved ©... - Page 25 Bi-Focus User Manual This content is subject to change. Download the latest version from https://www.foxtechfpv.com/foxtech-bi-focus-10x-optical-zoom-thermal-camera-2-axis-gimbal.html For everyday updates, please follow Foxtech Facebook page: https://www.facebook.com/foxtechhobby YouTube Channel: https://www.youtube.com/user/foxtechonline/featured?view_as=subscriber 2019 FOXTECH All Rights Reserved ©...
