Summary of Contents for Foxtech FH312
-

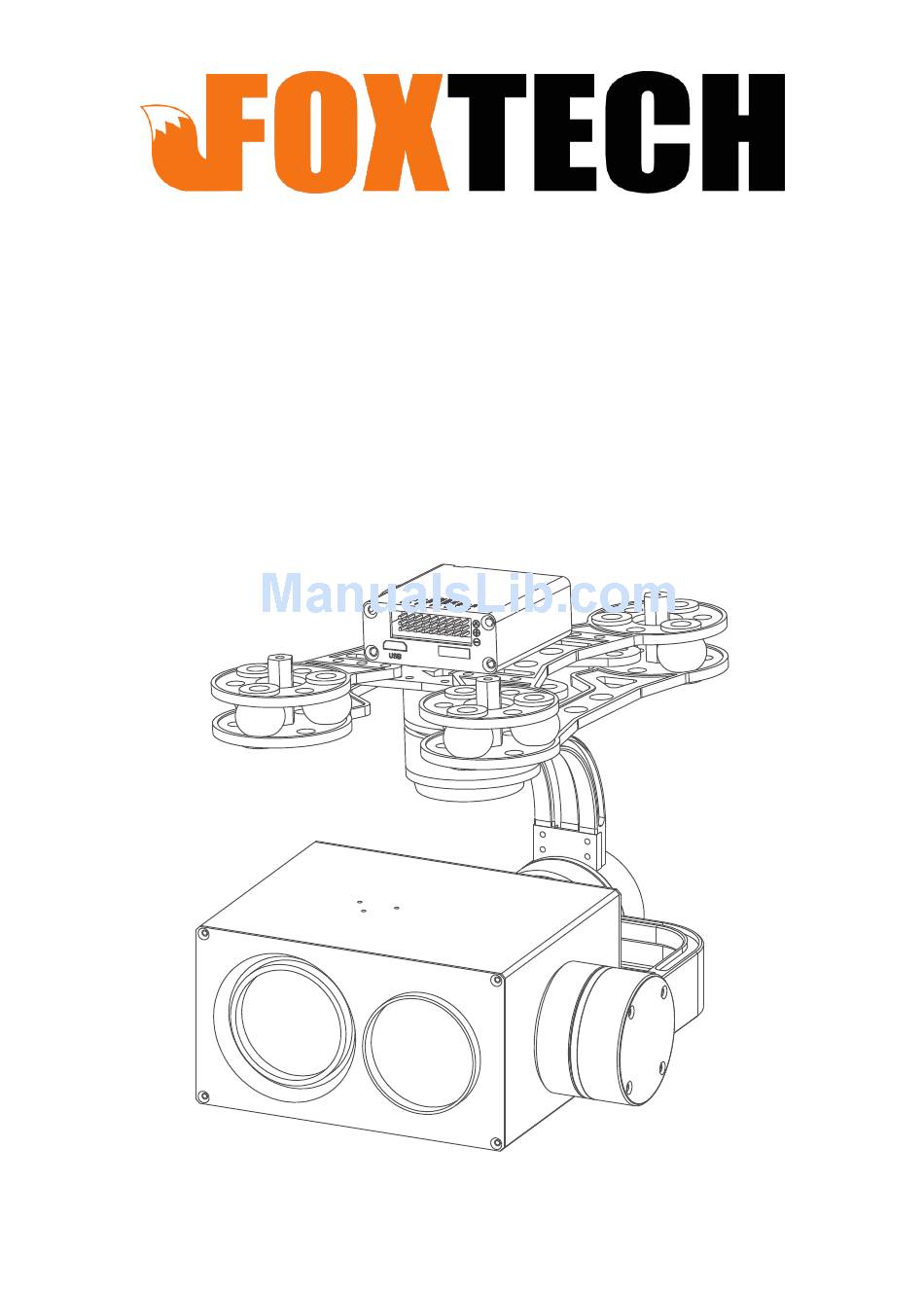

Page 1: User Manual
Zoom camera for UAV, See details clearly far away User manual FH312 Night Vision 12X Optical Zoom Camera with 3-axis Gimbal... -
Page 2: Table Of Contents
Contents igh-precision gimbal 1、 Gimbal introduction …………....……………………..2 2、Object tracking function Optional )………………..……………………2 3、Gimbal description……………………………………..…………………3 4、 Packing list........…………..…………………..4 5、Mounting plate dimension drawing……………………..…………………4 6、Installing………..…………......………………………5 7、Mechanics@Electronic characteristics………..…………………………5 8、Working characteristics…………………….......…………………5 9、Gimbal’s signal wire box………………....…………………6 10、 functional descriptions of gimbal mode……………………………7 etwork camera 、 Camera introduction..... …………………………......8 2、... -
Page 3: Gimbal Introduction
Gimbal introduction FH312 uses professional three axis stabilized zoom gimbal, adopt high precision encoder FOC control scheme, mount 12 times optical zoom, 1080p Full HD night vision network camera, Realize long-distance zoom night aerial photography in the air, designed for public security, fire protection, electricity, etc. -
Page 4: Gimbal Description
Gimbal description [1]Gimbal fixed copper pillar [6]Roll axis motor [2]Damping sphere [7]Pitch axis motor [3]Upper plate of gimbal board [8]Lighting device [9]HD zoom network camera [4]Under plate of gimbal board [5]YAW axis motor Please make sure that the motor is not stopped by any object during the rotation，if the gimbal is blocked during rotation, please remove the obstruction immediately. -
Page 5: Packing List
Packing list Gimbal*1 Screw pack*1 M3*5mm half round inner six angle screw*12 (fixed copper pillar and damping plate) Copper pillar*4 Damping sphere*12 Mounting plate dimension drawing 挂载板尺寸图 54.00~102.00 unit:mm (Minimum adjustment unit is 4mm) 106.00 158.00 163.00 164.00... -
Page 6: Installing
Installing Mechanics@Electronic characteristics Voltage 330mA@12V 3S~6S(12V) Quiescent current Working current -20 ~+80 ° ° 450mA@12V Work environment 1265g Size L163*W164*H158mm Weight Working characteristics -90 ~+90 ° ° Pitch angle range of action Roll angle range of action -85 ~+85 ° °... -
Page 7: Gimbal's Signal Wire Box
Gimbal signal wire box unit:mm 1 2 3 S.bus/Rx Roll/Tx Pitch Mode Zoom Focus Pic/Rec Multi Note: This product has internet access output and no HDMI output, SD CARD at the tail of camera Connection of control box and wiring instructions 1、Camera control line Zoom: camera zoom control line, connect Futaba... -
Page 8: 10、 Functional Descriptions Of Gimbal Mode
GImbal PWM signal instructions: YAW directional channel: speed mode ,connect rocker channel, (or third gear switch channel, stopping need third gear to middle position.） PITCH Pitch channel：speed mode ,connect rocker channel, (or third gear switch channel, stopping need third gear to middle position.） MODE gimbal one button back and speed adjustment：angle mode, A knob or a thirt gear channel switch. -
Page 9: Camera Introduction
Camera characteristics • 1080(1920*1080)HD image quality. • IMX185-1/1.9 high performance CMOS sensor, 2 million pixels, high picture quality and high sensitivity. • Powerful zoom ability 12 times optical zoom, 12X digital zoom, excellent autofocus performance, aperture range of F1.5~F1.9, focal length range of 7.0~84mm. -
Page 10: Lighting Device Characteristics
Lighting device characteristics • Valid distance: ≥500m • Lighting wavelength: 85010nm(940nm,980nm) • Lighting angle: Electric continuous zoom ,continuously adjust • Zoom time: 2s (Near angle, far angle) • Laser chip power：2±0.2W • Lighting angle: Far angle : Finite distance , spot diameter＜20m Near angle , Finite distance>40m •...
