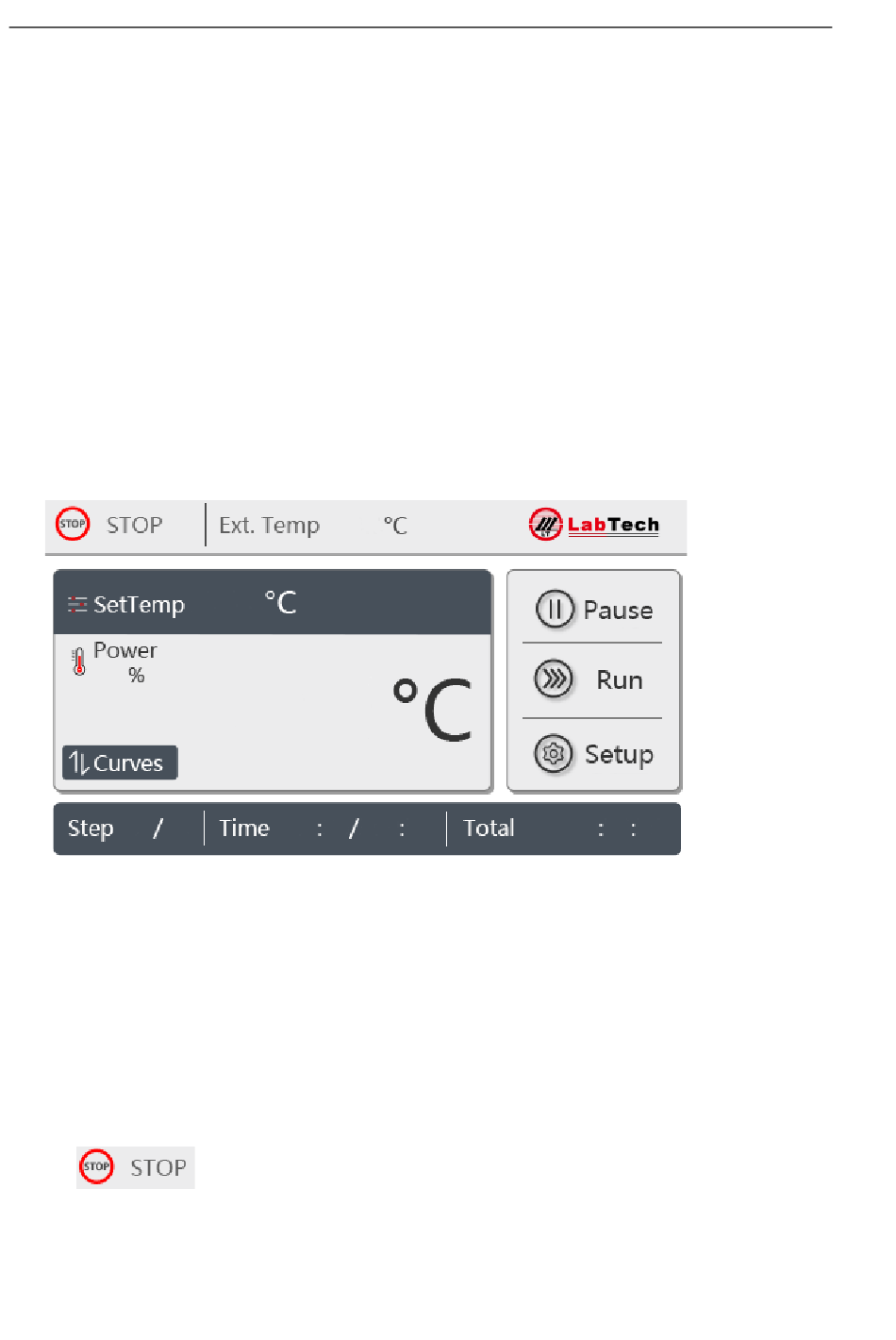

1. Real-time status interface
1) Real-T °C: actual temperature
2) SetTemp °C：temperature setpoint of running heating step
3) Power %: Output power percentage
4) Curves: Switch to heating graph page
5) Setup: Switch to method setup page
6) Step A/B: A means the running step no. B means the total step no. in a method
7) Time A/B: A means actual running time of current heating step. B means set time of
current heating step
8) Total: Total running time of the method
9) : Method running status display
10) Ext. Temp: Display the external temperature (external sensor will be needed)
11) Run: Start selected method
12) Pause: Pause running method
