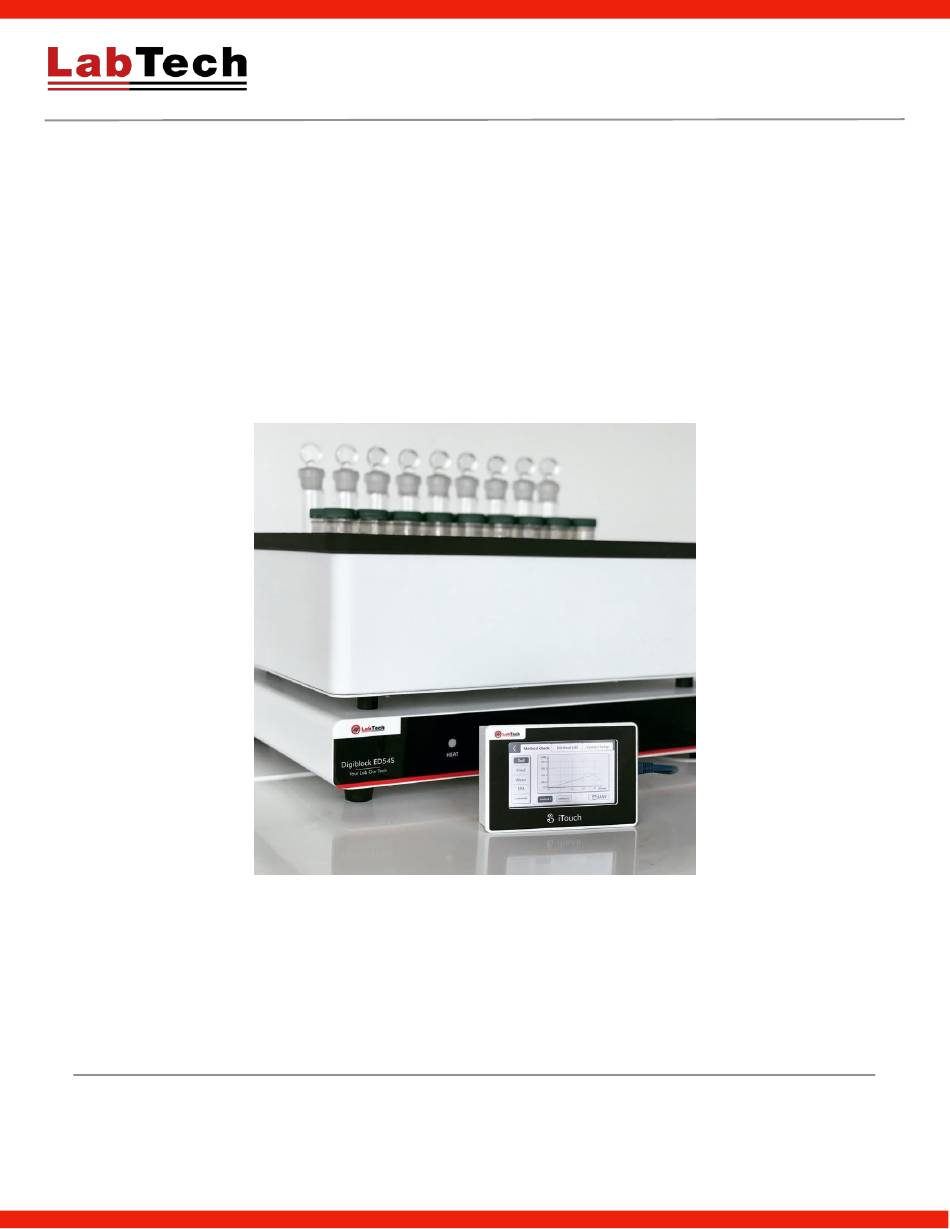

- Page 1 DigiBlock – User Manual DIGIBLOCK SAMPLE PREPARATION SYSTEM USER MANUAL – Version 202303DG www.labtechsrl.com Page 1 of 25...
-
Page 2: Table Of Contents
DigiBlock – User Manual INDEX DISCLAIMER ................................. 4 INTRODUCTION ................................. 5-7 About your system ................................5 Compliance ..................................5 WEEE/RoHS ..................................5 Warranties and Liabilities ..............................6 Conventions ..................................7 Contact us ..................................7 Safety Rules ................................8-9 General Information ................................ 8 Electrical safety ................................ - Page 3 DigiBlock – User Manual Operation ................................14-22 Controller CAL3300 built-in ............................... 14 Change the Setpoint ............................... 14 How to Select Display Resolution ............................. 14 How to Setup Program Ramping ............................15 How to Unlock Parameters .............................. 15 iTouch Separate Controller ............................... 16 Main Interface ................................
-
Page 4: Disclaimer
Website: www.labtechsrl.com E-mail: marketing@labtechsrl.com LabTech SRL provides this document to its customers at the time of purchasing to be used during the product operation. This document is copyright protected and any reproduction of the whole or any part of it is strictly prohibited, except with the written authorization of LabTech SRL. -
Page 5: Introduction
DigiBlock – User Manual INTRODUCTION About your system Thank you for selecting our DigiBlock. We are sure that you will be completely satisfied with the performance of this new unit entering your laboratory. We invite you to carefully read this user manual and to keep it close to the instrument for convenient and fast consulting. -
Page 6: Warranties And Liabilities
DigiBlock – User Manual Warranties and Liabilities Seller warrants the products manufactured and sold by it, to be, for the period of warranty coverage, free from defects of materials or workmanship under normal prior use and service. The period of warranty coverage is specified for the respective products in the respective Seller instruction manuals for those products but shall in no event exceed 1 year from the date of shipment thereof by Seller. -
Page 7: Conventions
Fire Hazard: This symbol indicates a risk of fire or flammability could or may occur. Contact us There are several ways to contact LabTech Srl. To contact Technical Support: Phone +39 035 576614 E-mail customer.care@labtechsrl.com... -
Page 8: Safety Rules
DigiBlock – User Manual Safety Rules General Information Please carefully read this user manual before starting to use the instrument and follow its prescriptions with the utmost care. This user manual is part of the delivery, hence must be always kept together with the instrument on its working place. -
Page 9: Recommendation
DigiBlock – User Manual Recommendation The equipment cannot be covered in small object while working, in case that the high temperature damages the control system. When the equipment is working or its temperature hasn’t cooled down to the room temperature, make sure not to touch the heating board. -
Page 10: General Information
DigiBlock – User Manual General Information Specification Max. Temp. Model Power Supply Heating Block Power. Temp. Accuracy ED16S / ED16S iTouch 1000W 210°C ±0.2℃ Aluminum alloy PTFE coated 1400W 210°C ±0.2℃ ED36S / ED36S iTouch ED-S series 230V±10% 50/60Hz±5% Graphite PTFE ED54S / ED54S iTouch 3000W 240°C... -
Page 11: Eds Itouch Series Front View
DigiBlock – User Manual EDS iTouch Series – Front View Heating Block iTouch Controller Switch ON / OFF Heating Status Light www.labtechsrl.com Page 11 of 25... -
Page 12: Installation
DigiBlock – User Manual Installation Site Requirements Ambient Temperature Range: 10°C to 35°C (50°F to 94°F) Relative Humidity Range : 10% to 80% (non-condensing) Never place the unit in a location where excessive heat, moisture, or corrosive materials are present. Positioning the instrument Never place the unit in a location where excessive heat, moisture or corrosive materials are present. -
Page 13: Electrical Requirements
DigiBlock – User Manual Electrical Requirements The unit provides extra protection against the risk of electrical shock by grounding appropriate metal parts. The extra protection may not function unless the power cord is connected to a properly grounded socket. It is the user’s responsibility to assure a proper ground connection is provided. -
Page 14: Operation
DigiBlock – User Manual Operation Controller CAL3300 built-in Change the Setpoint Press and hold , the temperature of setpoint is displaying on LCD. Press and hold , use buttons to decrease or increase the temperature of setpoint. How to Select Display resolution The selected temperature display is 1°C or 0.1°C, and the operation as follows. -
Page 15: How To Setup Program Ramping
DigiBlock – User Manual How to Setup Program Ramping Press together for 3 seconds to enter program mode. Press continually until indicated on the LCD. Press and hold and press to adjust the slope of temperature ramping 0~150℃/Hour (Temperature is ramping). Press continually until indicated on the LCD. -
Page 16: Itouch Separate Controller
DigiBlock – User Manual iTouch Separate CONTROLLER LabTech iTouch controller operates by simply touching the keys on the screen. Connect the iTouch controller to the back of DigiBlock main unit, switch ON the DigiBlock and the iTouch screen is automatically ready for operations. -
Page 17: Main Interface
DigiBlock – User Manual Main Interface - iTouch Screen Real -T °C: actual temperature. SetTemp °C：temperature setpoint of running heating step. Power %: Output power percentage. Curves: Switch to heating graph page. Setup: Switch to method setup page. Step A/B: A means the running step no. B means the total step no. in a method. Time A/B: A means actual running time of current heating step. -

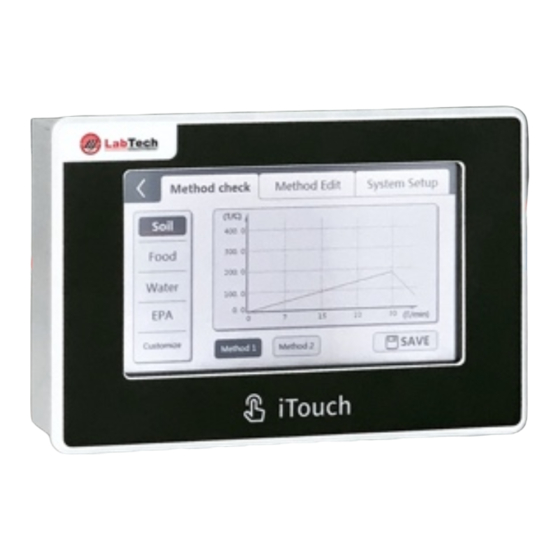

Page 18: Method View Interface
DigiBlock – User Manual Method View Interface 1) Category selection: touch SETUP button and select desired category name located in the left column. (Soil, Food, Water, EPA and Customize) 2) Method selection: touch Method1 or Method2 buttons to select method 1 or 2. 3) Save: select a desired method to run. -
Page 19: Method Setup Interface
DigiBlock – User Manual Method Setup Interface 1. Category selection: select desired method category located in the left column. 2. Method selection: touch Method1 or Method2 buttons to select method 1 or 2. 3. Step no.: Square min means temperature heating time (usually set to -2, that means heat in max. heating speed);... -
Page 20: Editing An Application Setup Interface
DigiBlock – User Manual Editing an Application Setup Interface Edit a soil digestion method in Soil category, heat from room temperature to 100℃ and hold in 100 ℃ until switch off the unit. A. In home page, touch Setup to enter method set interface. B. - Page 21 DigiBlock – User Manual D. Touch Method Check to review the method. Touch Soil then Method1 to check if the program heating curve you just set is correct. Touch Save to quit the interface and select this program. In home page, touch RUN to start the selected program. Edit another soil digestion method in Soil category, heat from room temperature to 100℃...
- Page 22 DigiBlock – User Manual Step 04: Touch the Temp. Text box, input 150 via the digital key. Then touch Time text box to input 60 which means holding temperature at 150C for 60min. Step 05: Touch the Temp. Text box, input 150 via the digital key. Then touch Time text box to input -1 which means stop the program after step 04.
-
Page 23: Preventive Maintenance
DigiBlock – User Manual Preventive Maintenance Pay attention to surface of ED series DigiBlocks, especially the corrosion-resistant model. Keeping the surface clean and check the surface periodically. Avoid acid splash during the use. Troubleshooting The colour of surface coating changed. If the colour becomes dark. -
Page 24: Declaration Of Conformity
DigiBlock – User Manual Declaration of Conformity www.labtechsrl.com Page 24 of 25... -
Page 25: Spare Part List
DigiBlock – User Manual Spare Parts List DDL-RDO002 Thermo couple Ktype 1m BCP-DYB051 Temperature protection board ITOUCH-C iTouch controller without main board DDL-KZB002/D iTouch controller display screen DDL-KZB002/M iTouch main board for DigiBlock DDL-KZB002/MCI connection interface of itouch main board S0602170/171/069/072 iTouch controller external panel box DDL-JRG024...
