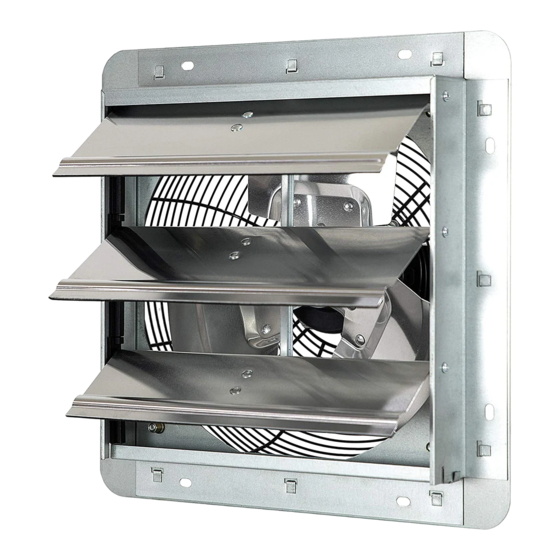

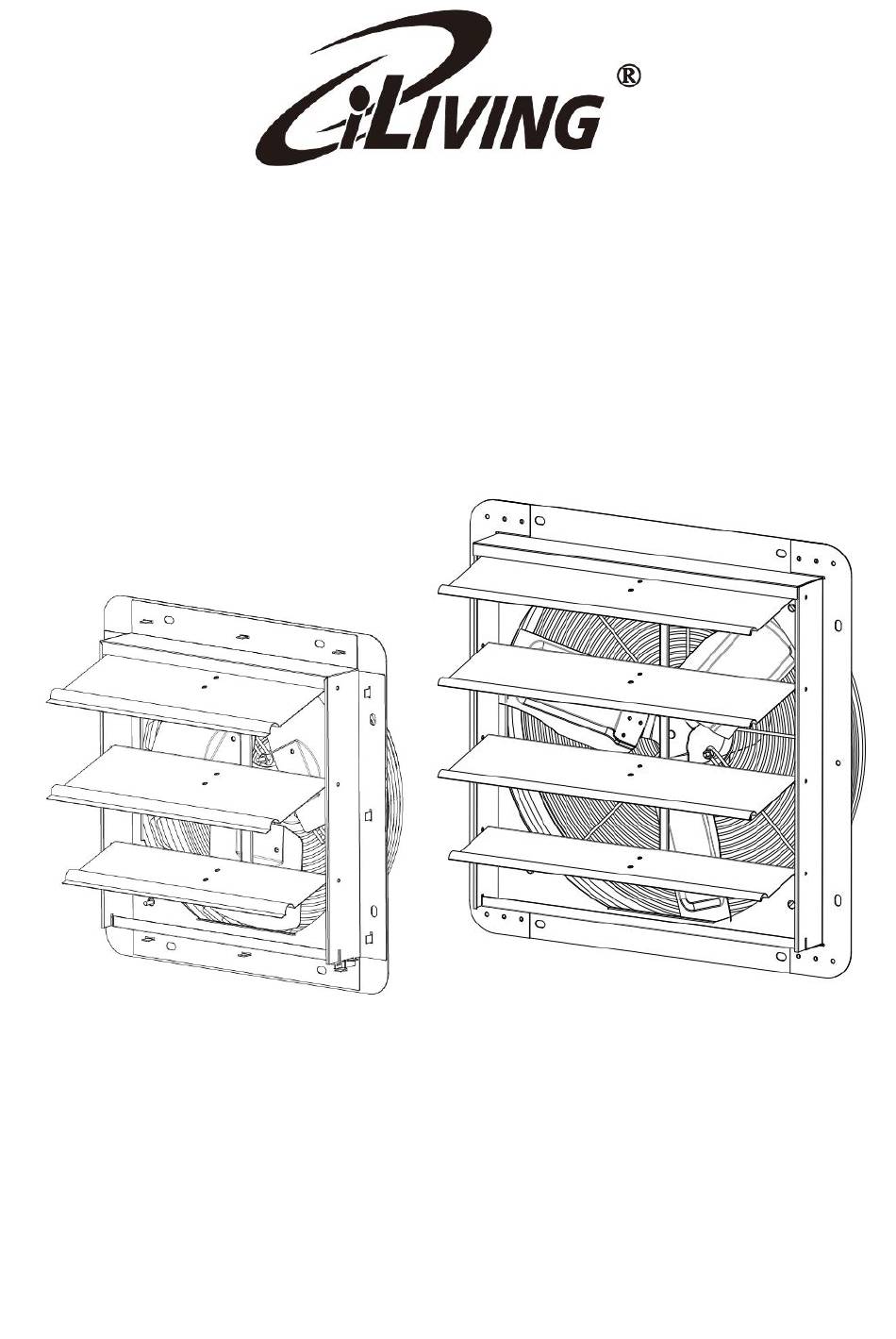

- Page 1 BLDC SHUTTER FAN OWNER'S MANUAL Models: ILG8SF12V-DC, ILG8SF14V-DC, ILG8SF16V-DC PLEASE READ AND SAVE THESE INSTRUCTIONS...
-
Page 2: Electrical Requirements
PLEASE READ AND SAVE THESE INSTRUCTIONS. READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE, OR MAINTAIN THE PRODUCT DESCRIBED. PROTECT YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE TO COMPLY WITH INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE! RETAIN INSTRUCTIONS FOR FUTURE REFERENCE. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Do not depend on any switch as the sole means of disconnecting power when installing or servicing the fan. 2. Always disconnect, lock-out, and tag-out power source before installing or servicing. Failure to disconnect power source can result in fire, shock, or serious injury. 3. -
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS 1. The unit should be only securely mounted in a rigid framework. NOTE: Allowing the fan frame to flex or move will result in excess vibrations, which may cause possible premature motor, propeller, or shutter failure. Fan frame and motor must be securely and adequately grounded to a suitable electrical ground, such as a ground water pipe or ground wiring system. - Page 5 4. Install the control box to the wall with 2 screws.(Screws are not included.) 5. Plug the power cord into a grounded wall outlet(120V, 60Hz). Plug the USB cord to connect with the control box. Control Box USB cord Shutter Fan...
-
Page 6: Dimensions (Inches)
Propeller Material Aluminum Alloy and Galvanized Steel Agency Compliance CSA C22.2 No. 113 & UL 507 Dimensions (Inches) Prop. Suggested wall MODEL Dia. opening (Sq) ILG8SF12V-DC 12" 15" 15" 5 3/4" 2" 6 5/32" 13 5/8" 12 1/8" 12 1/8"... - Page 7 Performance Model ILG8SF12V-DC ILG8SF14V-DC ILG8SF16V-DC Voltage Frequency Wattage AMPS 0.65 0.85 1600 1600 1600 1200 1736 OPERATING INSTRUCTIONS 1. Keep the area free of objects that could impede air flow on both the intake and exhaust side of fan. 2. For proper exhaust operation, a window, door, or louver should be opened for fresh air intake on the opposite side of the area to be ventilated.
- Page 8 About the Power ON/OFF & Mode button To turn on the shutter fan, press the button; the LED display will turn on and the shutter fan will wait in AUTO Mode. Press the button to toggle between the different modes: AUTO / Manual / TIMER / Power OFF.
-
Page 9: Memory Function
To turn the timer OFF,pressing the “–” button to set the time to 0. The timer feature will turn off when the LED stops flashing. In timer mode, press the button can increase or decrease the setting time. Display the set temperature The display shows the room temperature all the time, press and hold the button and then press the button. -
Page 10: Troubleshooting
MAINTAINANCE 1. Unplug the appliance before servicing. 2. Periodically clean off accumulated dirt from the propeller, guard, motor, and shutter. Do not depend on any switch as the sole means of disconnecting power when installing or servicing. If power disconnect is not visible, utilize OSHA Lock out/Tag out procedure. - Page 11 Love it? Help us make the product more for you. Let us know with a customer review. Please visit: https://www.amazon.com/review/review-your-purchases# At iLiving USA, we are committed to bringing top quality products to our customers. iLIVING USA 860 Mahler Road, Burlingame, CA 94010...
