UF-Series
G
D
ENERAL
ESCRIPTION
The UF40 buffer module is a supplementary device for
regulated DC 24V power supplies, which can be used for
various purposes:
- Deliver DC-power to bridge failures of the DC
voltage supply system.
- Extend the hold-up time after loss of the AC power.
- Deliver extra short-term peak current above the
current rating of the power supply.
It utilizes service-free electrolytic capacitors for storing
the energy which allows usage even at ambient
temperatures up to +70°C.
The buffer module does not require any control wiring.
It can be added in parallel to the load circuit at any
given point.
Buffer modules can be connected in parallel to increase
the output ampacity or the hold-up time.
O
N
RDER
UMBERS
Buffer Module UF40.241
Accessory
ZM2.WALL Panel/ wall-mount bracket
ZM14.SIDE
Oct. 2016 / Rev. 1.0 DS-UF40.241-EN
All parameters are specified at 24V, 40A, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
Side-mount bracket
www.pulspower.com Phone +49 89 9278 0
24V, 40A, 160
B
M
UFFER
ODULE
Buffering with electrolytic capacitors instead of lead
acid batteries
Buffering of 24V loads
Minimum hold-up time 0.16s at 40A, longer hold-up
time at lower loads
Clear status indication by status LED and signaling
terminals
Extra large screw terminals
3 Years warranty
S
-
D
HORT
FORM
Supply voltage
Required voltage to
charge capacitors
Threshold voltage
for buffer mode
Buffer voltage
Buffer current
Charging time
Current consumption Typ. 80mA
Power dissipation
Buffer time
Temperature range
Dimensions
Weight
M
ARKINGS
IND. CONT. EQ.
UL 508
Germany
UF40.241
, B
M
MS
UFFER
ODULE
ATA
-20%/+25%
DC 24V
19.2-30Vdc
23Vdc
22.5V / V
-1V
Selectable
IN
22.5V / V
-1V
Selectable
IN
40A
Typ. 34s
Stand-by mode
Max. 600mA
During charging
1.9W
Stand-by mode
Min. 160ms
At 22.5V, 40A
Min. 320ms
At 22.5V, 20A
Typ. 250ms
At 22.5V, 40A
Typ. 500ms
At 22.5V, 20A
Typ. 62s
At 22.5V, 0.1A
-25°C to +70°C
operational
64x124x142mm WxHxD
1040g / 2.3lb
UL 60950-1
EMC
1/18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIMENSION UF Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Puls DIMENSION UF Series

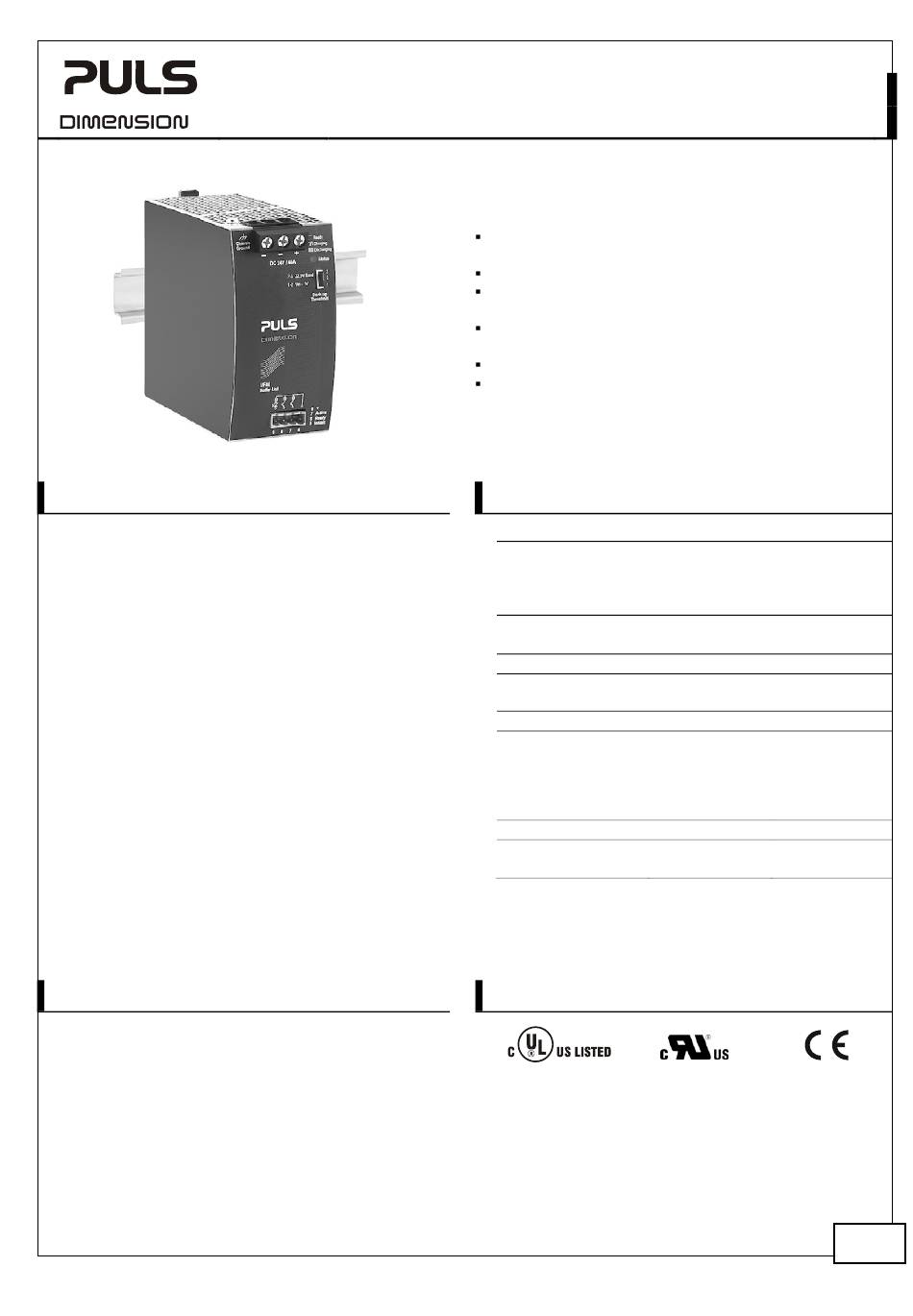

  • Page 1 UF40.241 24V, 40A, 160 UF-Series UFFER ODULE UFFER ODULE Buffering with electrolytic capacitors instead of lead acid batteries Buffering of 24V loads Minimum hold-up time 0.16s at 40A, longer hold-up time at lower loads Clear status indication by status LED and signaling terminals Extra large screw terminals 3 Years warranty...
  • Page 2: Table Of Contents

    (available under www.pulspower.com). No part of this document may be reproduced or utilized in any form without our prior permission in writing. Some parts of this unit are patent by PULS (US patent No 091662,063, Des. 424,529, …). ERMINOLOGY AND...
  • Page 3: Intended Use

    UF40.241 24V, 40A, 160 UF-Series UFFER ODULE 1. I NTENDED This device is designed for installation in an enclosure. Use an appropriate enclosure which protects against mechanical, electrical and fire hazards. This device is intended for professional use in areas such as in industrial control, office, communication, and instrumentation equipment.
  • Page 4: Functional Description

    UF40.241 24V, 40A, 160 UF-Series UFFER ODULE 3. F UNCTIONAL ESCRIPTION Working principle Charge Storage When the power supply provides sufficient voltage, the buffer module stores energy in the integrated electrolytic capacitors. In case of a voltage dip or loss, this energy is Discharge released to the DC bus in a regulated process.
  • Page 5: Electrical Ratings

    UF40.241 24V, 40A, 160 UF-Series UFFER ODULE 4. E LECTRICAL ATINGS -20%/+25% Supply voltage Nom. DC 24V Supply voltage range Nom. 19.2 - 30Vdc Normal operating voltage range Typ. 23 – 30Vdc Transfer voltage for switching Typ. 22.5Vdc Back-up threshold jumper set to “22.5V fixed” into buffer mode Typ.
  • Page 6: Selection Of The Back-Up Threshold Voltage

    UF40.241 24V, 40A, 160 UF-Series UFFER ODULE 5. S ELECTION OF THE HRESHOLD OLTAGE The buffer behavior can be selected with the back-up jumper selector between “Fixed Mode” and “Variable Mode”. Fixed Mode: (Jumper in position „2-3“ or „22.5V fixed”) If the supply output voltage falls below 22.5V, buffering starts and the supply voltage will be kept at this level.
  • Page 7: Charging Time

    UF40.241 24V, 40A, 160 UF-Series UFFER ODULE 7. C HARGING Charging of the internal capacitors is indicated by the status LED, which is flashing with a slow frequency (1.25Hz). Charging time Min. Initial charging Max. Initial charging Min. Re-charging Max. Re-charging 1) Initial charging is the first charge after voltage is applied to the buffer module.
  • Page 8: Active Signal

    UF40.241 24V, 40A, 160 UF-Series UFFER ODULE 9. A CTIVE IGNAL The signal “Active” (pin 7) is an opto-coupler output which is low ohmic while buffer capacitors are discharged. Wiring scheme see Fig. 8-2, Fig. 25-1 and Fig. 25-2. Signal voltage Max.
  • Page 9: Efficiency And Power Losses

    UF40.241 24V, 40A, 160 UF-Series UFFER ODULE 12. E FFICIENCY AND OWER OSSES Efficiency Typ. >99% Power supply mode, 40A output current, capacitors fully charged Power losses Typ. 1.9W Power supply mode, 0A output current, capacitors fully charged 13. L MTBF IFETIME XPECTANCY AND...
  • Page 10: Functional Diagram

    UF40.241 24V, 40A, 160 UF-Series UFFER ODULE 14. F UNCTIONAL IAGRAM Fig. 14-1 Functional diagram Status Buffer Capacitor Charger & Inrush Limiter Buffer Safety and Reverse- Capacitor Over- Polarity Shut-Down Buffer Capacitor Supply Voltage Protection Voltage Discharger Protection Buffer Capacitor 6 (+) 9 Inhibit Chassis...
  • Page 11: Front Side And User Elements

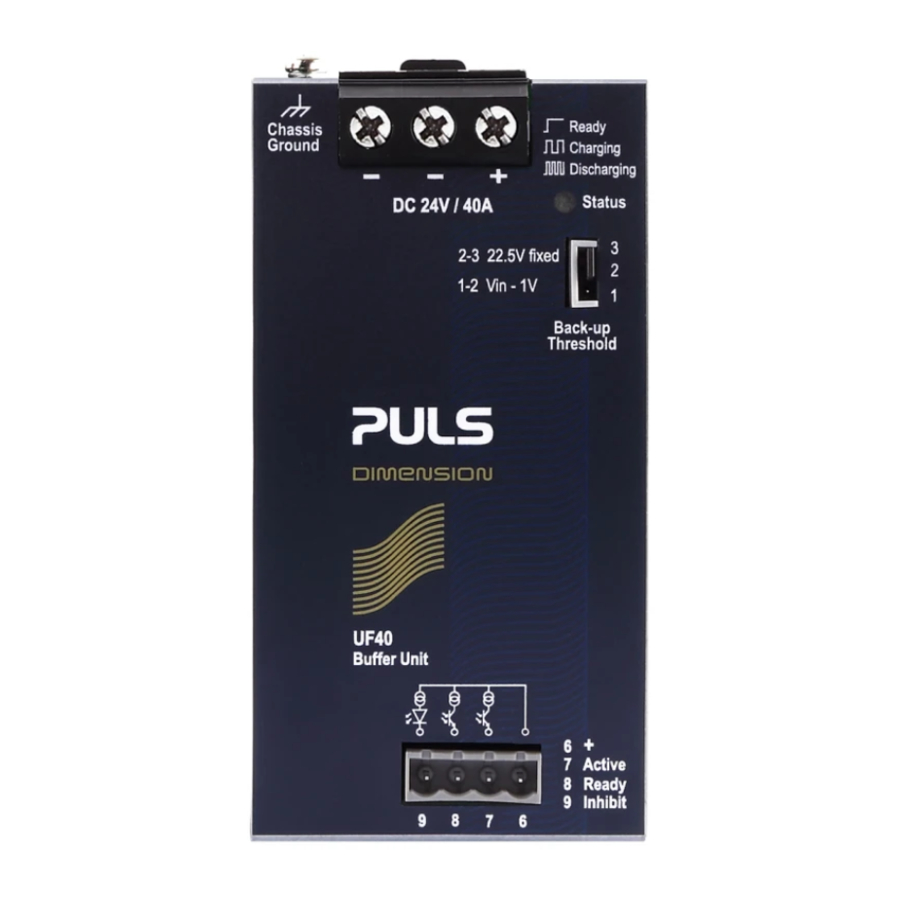

    UF40.241 24V, 40A, 160 UF-Series UFFER ODULE 16. F RONT IDE AND LEMENTS Fig. 16-1 Front side A Supply Voltage Terminals Screw terminals, two negative pins. + Positive supply voltage terminal – Negative (return) supply voltage terminal B Chassis Ground Terminal To be connected on the top side of the housing with a ring-type terminal (ring cable lug) which is suitable for a M4 screw.
