- Page 1 USER MANUAL FEVER WARNING SYSTEM KT-800M...
- Page 3 USER MANUAL FEVER WARNING SYSTEM KT-800M SONEL S.A. Wokulskiego 11 58-100 Świdnica Poland Version 1.00 26.08.2020...
- Page 4 Copyrights © Sonel S.A. 2020. All rights reserved. This manual may not be copied, reproduced, translated or transferred to any electronic carriers or in machine-readable form, in whole or in part, without the prior written consent of Sonel S.A.
-
Page 5: Table Of Contents
Image debugging ......................34 6.2.6 Other settings ........................ 35 7 Specifications ....................36 8 Cleaning and maintenance ................37 9 Storing ......................37 10 Dismantling and disposal ................37 11 Standard accessories ..................38 12 Manufacturer ....................38 KT-800M – USER MANUAL... -
Page 6: Safety
Do not place the device in direct sunlight, poorly ventilated locations, or near heat sources such as heaters or heaters. Ignoring this may cause a fire hazard. Do not turn the machine on and off frequently. The restart interval after shutdown is not less than 30 seconds. KT-800M – USER MANUAL... -
Page 7: Description Of The System
It is mainly installed and deployed at the entrances, passages, lobby, etc. Application scenario is shown in Figure 1-1. Small application scenario KT-800M – USER MANUAL... -
Page 8: Product Configuration

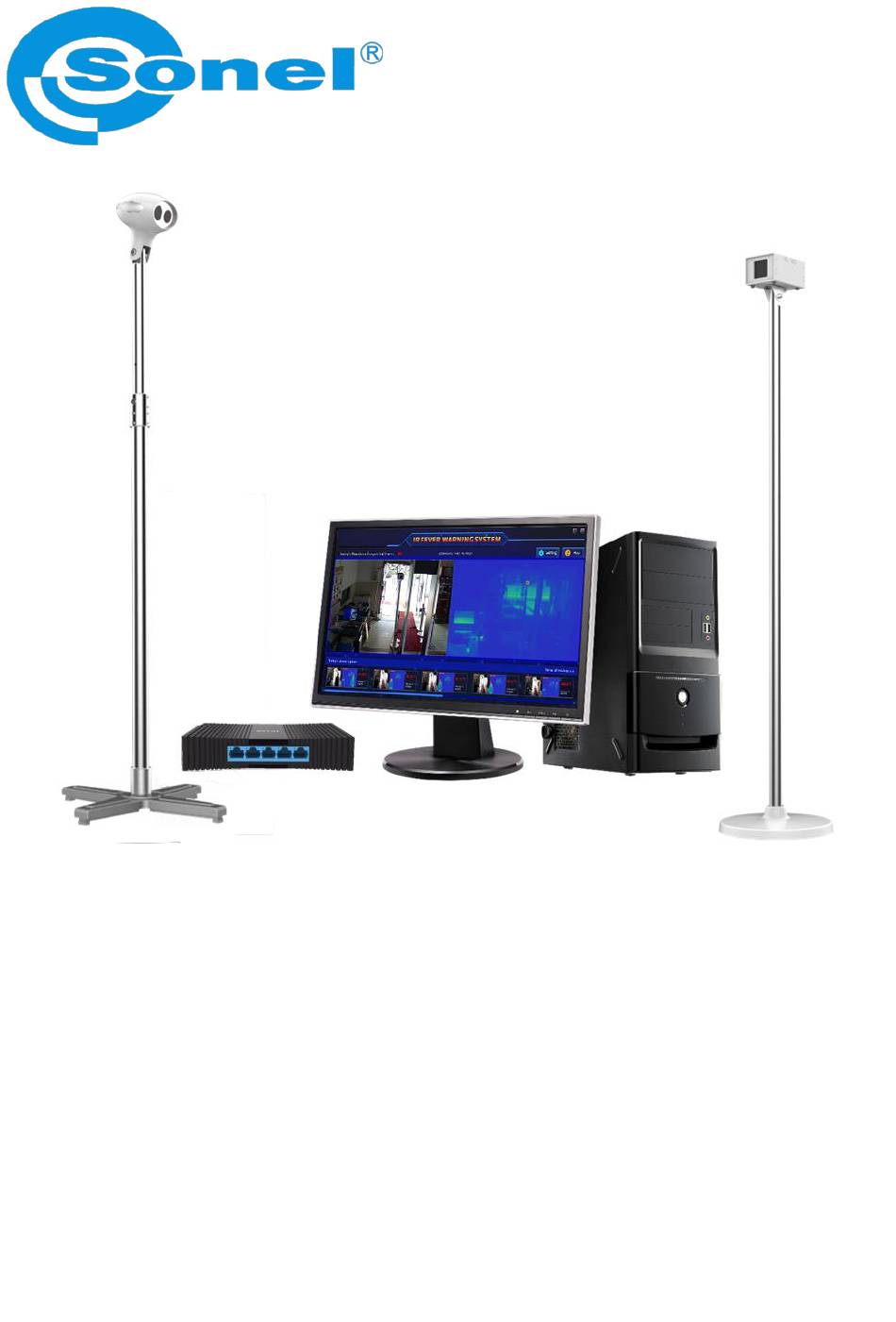

IR Fever Warning System with Integrated delivery could be open to use on site. The main product configuration is shown below. Network hard disk recorder as an optional if video recording is required. Standard set: Camera head + stand, Black body + stand, Switch, PC kit. KT-800M – USER MANUAL... -
Page 9: Deployment Requirements
Head layout Reasonably arrange the position of the KT-800M head, and the downward plan angle is 13° -15°. Reasonably arrange the detection position and range of personnel. The position of KT-800M camera from the forehead of the person under test is 3.0-8.0 meters, and the best test posi- tion is 5.0 meters. - Page 10 If the installation of the camera is restricted by the site, the installation height can be adjusted appropriately. It is recommended that the installation height of the camera is not lower than 2.0 m, and the height of the black body is not lower than 1.8 m. KT-800M – USER MANUAL...
-
Page 11: Installation
3 Installation 3.1 Camera installation Install the base. Assemble chassis + chassis adapter + counterweight. Fasten with 4 M6x25 screws. KT-800M – USER MANUAL... - Page 12 Install the screws shown. Do not fasten first! Pass 2 long network cables and 1 power cable through the bottom of the support rod, and then from the movable rod of the telescopic rod. KT-800M – USER MANUAL...
- Page 13 Fasten the device’s head and the vertical rod. Fasten it with M10x60 screws (the head and the support rod have gaskets). KT-800M – USER MANUAL...
- Page 14 Adjust the depression angle by about 15 degrees. KT-800M – USER MANUAL...
-
Page 15: Blackbody Installation
3.2 Blackbody installation Install the base. Assemble chassis + chassis adapter + counterweight. Fasten it with 4 M6x25 screws KT-800M – USER MANUAL... - Page 16 Install the screws shown. Do not fasten first! Pass the power cord through the bottom of the support rod and out from the movable rod of the telescopic rod. KT-800M – USER MANUAL...
- Page 17 Tighten the screws installed in step Install the black body head and adapter. Fasten it with 4 M4x6 screws. Fasten the black body head and the vertical rod. Fasten it with M10x50 screws. KT-800M – USER MANUAL...
- Page 18 Power switch Click the up and down keys next to the setting key to set the black body temperature to 35 degrees. Click the setting key again to save the setting. KT-800M – USER MANUAL...
- Page 19 Setting button Wait about 15 minutes, the temperature of the black body is over, the temperature is sta- ble at the set temperature, and all the indicators in the indicator area are off. KT-800M – USER MANUAL...
-
Page 20: Assemble The Computer And Connect To Power
Two long network cables of the camera computer's independent graphics card interface is con- nected to the VGA cable via the adapter cable, and the comput- er's host is connected to the speaker. KT-800M – USER MANUAL... - Page 21 AC/DC power adapter 12 V for KT-800M. Note: When the kit is compati- ble with multiple AC-DC adapt- ers and the DC interface is the same, do not mix them, other- wise there is a risk of burning the camera. KT-800M – USER MANUAL...
-
Page 22: Function Introduction
The real-time temperature of the position can be displayed if you move the mouse cursor to the ther- mal image in any position. Real time point temperature Preview of the real time point temperature on main interface KT-800M – USER MANUAL... -
Page 23: History And Processing
"system settings" is used to set system parameters, including "alarm pa- rameters" "Shielded area", "Bold body area", "Icon registration", "Temperature measurement parame- ter", "Other" and other parameters. KT-800M – USER MANUAL... -
Page 24: Help
Over-temperature alarm snapshot KT-800M – USER MANUAL... -
Page 25: History Record
After entering the history record interface, you can query the history record according to time and classification. The display area of the history record group shows the thumbnail, time, temperature and processing category of the history record. KT-800M – USER MANUAL... - Page 26 History record information KT-800M – USER MANUAL...
- Page 27 click the button at the bottom of the history interface to delete the selected record and classify pas- sengers' heat, low-temperature carry-on items and other carry-on items. History record processing button KT-800M – USER MANUAL...
-
Page 28: Single Group History Record
Click the thumbnail, the recorded visual image and infrared image will showing in the center area of history record. Click in the image to delete the image. 2. Dual record showing Thumbnail of single history record can maximum showing four records. Click to show the rest of the images. KT-800M – USER MANUAL... -
Page 29: Function Setting
The user name is admin, default password is 0. Login interface The setting interface includes Device and System. System includes alarm settings, shield area, blackbody area, image synchronization, image debugging and other settings. Sub-options of system settings KT-800M – USER MANUAL... -
Page 30: Device Management
Interface of device management Other device list is used to manually add other devices’ IP address like NVR (convenience for the maintenance). List of other devices KT-800M – USER MANUAL... -
Page 31: System Setting
2. Setting of high temperature alarm interval： When the measured target temperature is within the set temperature range (such as the following 37.3ºC…42.0 ºC), the alarm event is judged to have occurred. The maximum temperature range of high temperature alarm is 30.0 ºC …50.0 ºC. KT-800M – USER MANUAL... -
Page 32: Settings Of Shielding Area
2. By dragging the left mouse button to depict the rectangle method, the high temperature inter- ference source from the infrared image shielding. 3. Click the save button on the left side of the window to save. KT-800M – USER MANUAL... -
Page 33: Black Body Area Setting
Save button. Black body in infrared image Blackbody area setting KT-800M – USER MANUAL... - Page 34 Black block shift prompt Ambient temperature setting (ambient temperature setting in the temperature measurement area) has a great influence on the accuracy of temperature measurement, so please input the ambient temperature accurately according to the actual situation. KT-800M – USER MANUAL...
-
Page 35: Image Registration
The registration process of the other two points is the same as that of the first point. 3. After registration is completed, click the Save button on the left of the window to save. KT-800M – USER MANUAL... -
Page 36: Image Debugging
- Flip Switch: Manually adjust the infrared image flip. 2. Visible image settings - Visible light far (near) focus: adjust the focal length to obtain a clear image. - Visible light zoom + (-): increase (decrease) multiples to enlarge (reduce) the image. KT-800M – USER MANUAL... -
Page 37: Other Settings
IP address, port and alarm push service switch, and push it regularly. 6. System language is used for customers to choose to switch familiar languages, so as to op- erate the equipment better. KT-800M – USER MANUAL... -
Page 38: Specifications
Camera head size 173 x 184 x 212 mm Total height (incl. stand) 2200 mm Camera head package 510 x 440 x 270 mm (subject to actual delivery) Total weight ≤45 kg (subject to actual delivery) KT-800M – USER MANUAL... -
Page 39: Cleaning And Maintenance
Before delivering the equipment to the collection center do not attempt to dismantle any of its parts. Follow local regulations related to disposing of packaging, used-up batteries and rechargeable batter- ies. NOTE! Follow local regulations related to disposing of packaging, used-up batteries and re- chargeable batteries. KT-800M – USER MANUAL... -
Page 40: Standard Accessories
The manufacturer and provider of warranty and post-warranty services for this instrument is: SONEL S.A. Wokulskiego 11 58-100 Świdnica Poland tel. +48 74 858 38 60 fax +48 74 858 38 09 E-mail: export@sonel.pl Web page: www.sonel.pl NOTE! Only the manufacturer is authorized to perform service repairs. KT-800M – USER MANUAL... - Page 41 NOTES KT-800M – USER MANUAL...
- Page 42 NOTES KT-800M – USER MANUAL...
- Page 44 SONEL S.A. Wokulskiego 11 58-100 Świdnica Poland tel. +48 74 858 38 60 fax +48 74 858 38 00 e-mail: sonel@sonel.pl www.sonel.pl...
