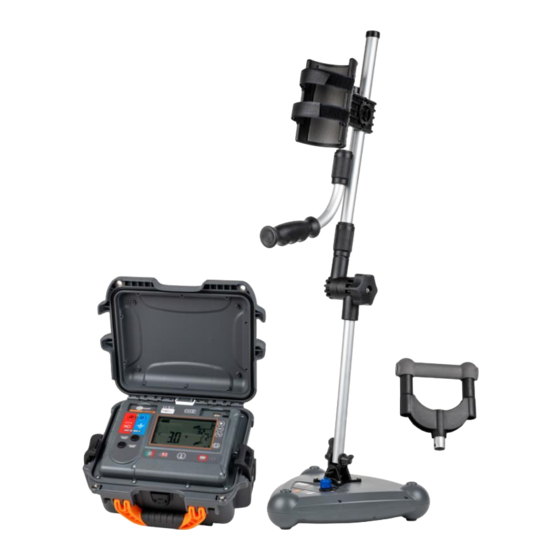

- Page 3 USER MANUAL CABLES AND UNDERGROUND INFRASTRUCTURE LOCATOR LKZ-2500 LKN-2500 ● LKD-2500 ● SONEL LKZ MOBILE SONEL S.A. Wokulskiego 11 58-100 Świdnica Poland Version 1.01 29.01.2024...
- Page 4 LKZ-2500 is a modern, high quality measuring system, easy and safe to use. Reading and using of this manual will help to avoid errors in measurements and prevent possible problems when operating the instrument. LKZ-2500 – USER MANUAL...
-
Page 5: Table Of Contents
3.5.6 Creating a memory structure ................... 16 4 Pairing devices ....................17 5 Routing ......................18 5.1 Routing screen of the Sonel LKZ Mobile application ..........18 5.2 Methods of signal reception ................... 20 5.3 Routing modes ....................... 20 5.3.1 Operation in passive mode - Power ................. - Page 6 8.3 Power supply from mains ..................36 8.4 General rules for using Li-Ion rechargeable batteries ........... 36 9 Status signalling .................... 37 9.1 LKN-2500 transmitter ..................... 37 9.2 LKD-2500 Detector ....................37 10 Cleaning and maintenance ................38 11 Storage ......................38 12 Dismantling and utilisation ................
-
Page 7: General Information
General information Safety symbols The following international symbols are used in the device and/or in this manual: Warning. Attention, risk of Double insulation See explanation in the electric shock (protection class) manual Declaration of Conformity Do not dispose of with other Fuse with EU directives household waste... -
Page 8: Safety
Safety In order to provide conditions for correct operation and the correctness of the obtained results, the following recommendations must be observed: Before you proceed to operate the system, acquaint yourself thoroughly with the present manual and observe the safety regulations and specifications provided by the producer. ... -
Page 9: Quick Start
Turn on the LKN-2500. Enter the settings for the transmitted signal. ▼ Pair the LKN-2500 with the tested object. Start transmitting the signal. ▼ Perform routing with the LKD-2500 detector. Observe the readings in the Sonel LKZ Mobile application. Turn off all devices. LKZ-2500 – USER MANUAL... -
Page 10: Description Of The System
The information about position of the traced object is displayed on the Sonel LKZ Mobile app which is connected with the detector. Determination of the object’s route is possible based on observation of compass readings and the level of the detect- ed signal. -
Page 11: Transmitter Lkn-2500
Transmitter LKN-2500 3.3.1 Buttons on the housing ▲ Method of displaying parameters of the trans- Turn on the device (press briefly) mitted signal: amperes / volts / watts / re- Turn off the device (press and hold) sistance Start/stop signal transmission Increase the signal strength Decrease the signal strength... -
Page 12: Display
3.3.2 Display Charging the battery NOISE! Interference detected in the connected object READY The device is ready to transmit a signal Warning: the meter temperature is higher than permissible USB memory connected to the instrument Error/warning/information Strength of the transmitted signal. Strength of the transmitted signal. -
Page 13: Time Settings For Automatic Shutdown (Auto-Off)
3.3.3 Time settings for automatic shutdown (auto-off) Press and hold down button to turn on the meter. Release only when the settings screen appears. Enter the time after which the device will automatically turn off. Confirm the settings with the START/STOP button. LKD-2500 Detector 3.4.1 Buttons on the housing... -
Page 14: Handles
3.4.2 Handles ▼ ▼ LKD-2500 with a short handle installed LKD-2500 with a long handle installed LKZ-2500 – USER MANUAL... -
Page 15: Sonel Lkz Mobile Application
Sonel LKZ Mobile application The application works with Sonel LKD-2500 detector. It enables tracing of objects, recording of routes in the memory of the mobile device along with GPS positions of waypoints and additional readings. The application additionally enables: ... - Page 16 Menu Left/expand Right/expand Status menu Battery charge level in LKD-2500 Checkpoint menu Delete checkpoint Save Save the list of checkpoints Memory Add an object Search Add a folder Go to the parent folder Add a routed object Function panel Save the waypoint to the mobile application memory Detector operating mode Power Radio...
-
Page 17: Measurements
3.5.3 Measurements The icon is displayed when the application is paired with the LKD-2500 detec- tor. It takes user to the routing screen. 3.5.4 Bluetooth Displays a list of available LKD-2500 detectors. 3.5.5 Settings Here you can configure the app to your needs. 3.5.5.1 Information Here you can check information about the app. -
Page 18: Creating A Memory Structure
3.5.6 Creating a memory structure Select icon Folders. Add a folder. Enter the object details. Save Changes. Enter the created folder and: add a lower-level folder (and enter its data), add the routed object (and enter its data). LKZ-2500 – USER MANUAL... -
Page 19: Pairing Devices
Connect to the LKD-2500 detector. Close the pairing window. When communication between the LKD-2500 and the Sonel LKZ Mobile application is lost and not restored within 5 minutes, the LKD-2500 will automatically turn off. Additional information displayed by the device... -
Page 20: Routing
Routing Routing screen of the Sonel LKZ Mobile application Routing screen of the Sonel LKZ Mobile application is shown below. In the central part there is a com- pass with a route preview. 1 – received signal strength. 2 – graph of the received signal strength. - Page 21 In the upper and lower parts there are controls and settings icons described in sec. 3.5.2. There is a set of indications on the sides. h – depth of the routed object relative to the detector, expressed in meters. α – angle of deviation of the routed object relative to the detector axis, expressed in degrees.
-
Page 22: Methods Of Signal Reception
Methods of signal reception The LKZ-2500 system can receive the signal in three different ways. Narrow. This characteristic is used to precisely determine the location of the signal and for accurate routing. When it is active, an algorithm determines whether the conditions for the correctness of the tracked signal are met ... -
Page 23: Operation In Passive Mode - Radio
Place the LKD-2500 detector over the object to be traced. When you start getting closer to the object, you will notice an increase in the strength of the received signal on the bargraph and numerical indicator. When you are directly above an object or in its immediate vicinity, you will see a line on the screen showing its course. -
Page 24: Working In Active Mode - Signal
5.3.3 Working in active mode – Signal Working in the Signalactive mode involves precise locating of objects capable of transmitting sig- nals. This means that such routing can take place over all active or inactive objects capable of carrying signals. In this mode using the LKN-2500 transmitterto force a signal in the object is necessary. 5.3.3.1 Methods of introducing a signal to the routed object ... - Page 25 Inductive method – involves introducing a signal to the object inductively using internal antenna of the transmitter. The device is placed over the object as directed by the arrow on the housing. The signal is induced in all objects located under the transmitter, so it will be possible to locate more objects located underground.
- Page 26 5.3.3.2 Introducing signal In the LKN-2500 set the method of introducing the signal (galvanic / clamp / inductive) to the routed object. Connect the signal forcing circuit. Select the shape and the frequency of the transmitted signal Set the signal strength. In the induction method, the signal strength is locked at the maxi- mum level.
- Page 27 5.3.3.3 Routing In Sonel LKZ Mobile app, select Signal operating mode. Select the frequency of the signal that the LKN-2500 introduces to the routed object. Select the method of signal reception. Place the LKD-2500 detector over the object to be traced.
-
Page 28: Route Registration
Route registration Pair the Sonel LKZ Mobile application with LKD-2500 detector. In the main menu, select Measurements. Select operation mode. Select the frequency of the signal that the LKN-2500 introduces to the rout- ed object. Follow the route of the object as indicated. - Page 29 If necessary, select a checkpoint. It will expand to the form below. 1 – checkpoint number in the series – detector operating mode: Power / Radio / Signal. h – depth of the routed object relative to the detector, expressed in meters. α...
-
Page 30: Restoring The Route
Restoring the route In the main menu, select Folders. Go to the routed object. A map will appear with a route marked by the saved checkpoints. 1 – checkpoint number in the series – detector operating mode: Power / Radio / Signal. f –... - Page 31 Swipe up from the bottom of the values area to view the signal parameters at the control point. h – depth of the routed object relative to the detector, expressed in meters. α – angle of deviation of the routed object relative to the detector axis, expressed in degrees.
-
Page 32: Software Update
Software update LKN-2500 transmitter Download the update file from the manufacturer's website. Save the update file to a USB stick. The memory must have the FAT32 file system. Turn on the LKN-2500. Insert the USB stick into the USB port of the LKN-2500. The installed and latest available software version will be displayed on the screen. -
Page 33: Lkd-2500 Detector
LKD-2500 Detector Download the update file from the manufacturer's website to the mobile device. Turn on Sonel LKZ Mobile application. Turn on the LKD-2500. Using the mobile application, pair it with the device. ▼ Go to Settings ► Update and select the update file. A message verifying the ▼... -
Page 34: Troubleshooting
Troubleshooting Before sending the instrument for repairs, contact our service department. It maybe possible that the meter is not damaged, and the problem has been caused by some other reasons. The meter can only be repaired at outlets authorized by the manufacturer. Troubleshooting of typical problems during the use of the instrument is described in the table below. -
Page 35: Fuse Replacement
Error code Cause Action Contact the customer service centre and Charging error. Charging cancelled. provide the error code to get help. Turn off the device, wait 10 minutes, turn the The temperature of the device is higher than permissi- device on and check if the error persists. If ble. -
Page 36: Power Supply
The previous shutdown of the device occurred from battery discharge. 8.1.2 LKD-2500 Detector The battery charge level of the device is indicated in the Sonel LKZ Mobile application. Battery charge in %. When communication between the LKD-2500 and the Sonel LKZ Mobile application is lost and not restored within 5 minutes, the LKD-2500 will automatically turn off. -
Page 37: Charging Rechargeable Battery
computer USB port, via the USB-A / USB-C adapter. When the device is turned off by button, the charging process is not stopped. Signalling of completed charging: (signalling in the Sonel LKZ Mobile application). LKZ-2500 – USER MANUAL... -
Page 38: Power Supply From Mains
Power supply from mains It is possible to charge the battery of LKD-2500 when carrying out the measurements. To do this, simply connect the power supply to the device. General rules for using Li-Ion rechargeable batteries Store the meter with batteries charged at least to 50%. The battery pack may be damaged if stored when fully discharged. -
Page 39: Status Signalling
(Synchronization with the Sonel LKZ Mobile applica- tion is in progress.) LKD-2500 turned on, battery is charging. (Synchro- ► nization with the Sonel LKZ Mobile application is in progress.) LKD turned on, the charger disconnected, connec- tion to the Sonel LKZ Mobile application established. -
Page 40: Cleaning And Maintenance
10 Cleaning and maintenance NOTE! Use only the maintenance methods specified by the manufacturer in this manual. The casing of the device may be cleaned with a soft, damp cloth using all-purpose detergents. Do not use any solvents or cleaning agents which might damage the casing (powders, pastes, etc.). Clean the probe with water and dry it. -
Page 41: Technical Data
13 Technical data 13.1 LKN-2500 transmitter The device does not have the character of a standard and therefore is not subject to calibration. The proper form of control for this type of instrument is checking. Features Voltage measurement Resistance measurement ... -
Page 42: Lkd-2500 Detector
▪ wireless communication standard ......................Bluetooth 5.0 BLE ▪ communication range ......................... up to 50 m in open space Auto-Off when communication between the LKD-2500 and the Sonel LKZ Mobile application is lost ....... 5 min altitude a.s.l................................≤2000 m quality standard .............. -
Page 43: Manufacturer
14 Manufacturer The manufacturer of the device and provider of guarantee and post-guarantee service: SONEL S.A. Wokulskiego 11 58-100 Świdnica Poland tel. +48 74 884 10 53 (Customer Service) e-mail: customerservice@sonel.com web page: www.sonel.com NOTE! Service repairs must be performed only by the manufacturer. - Page 44 NOTES LKZ-2500 – USER MANUAL...
