Mec MCC-40 Series Instruction Manual

Instruction Manual
Battery Chargers
MCC-40 Series:
Safety Rules and General Warnings
Persons, who are not able to use the charger in a safe way, because of their physical, sensory or mental incompetence, or because of their
•
lack of experience, should not use without the control or instruction from a skilled or qualified person.
The charger runs with 100-240 Volts alternating current, which is not suitable for children – Danger of Life. And beware of risk of electric shock
•
at all times.
Ensure sufficient air ventilation; do not cover the vent outlet while charging in progress.
•
Avoid flammable gases, solvents or vapours all the time. Prevent open flame or sparks while charging in progress. Explosion RISK!
•
The charger is exclusively designed for charging specific lead-based or LiFePO4 rechargeable batteries. It must not be used for other purposes.
•
NEVER recharge a frozen starter battery.
•
WARNING: Battery acid is corrosive and may cause property damage and personal injury. In the event of direct contact with skin or eyes,
•
immediately rinse with plenty of clean water and contact a doctor.
Please always wear appropriate work clothes, protective gloves and safety glasses when working with lead-based batteries.
•
You should take into consideration of the charging instructions issued by the battery manufacturer before charging. Check also if the charge
•
profile fits your battery and application.
DO NOT OPEN or DISMANTLE the charger. Repair work must only be processed by authorized technical staff.
•
If the mains connection or the pole terminal adapter of the charger is damaged, it must be replaced with an original wire which is available at
•
MEC or authorized dealers.
NEVER place the charger on top of the battery while charging in progress.
•
The charger should be protected against direct solar radiation or temperatures over 40°C.
•
In case of obvious damage or malfunctioning, disconnect the charger from the mains supply and protect against unintended reconnection.
•
The DC cable must not be cut, shortened or extended under any circumstances.
•
Keep the charger in dry room (rel. humidity <80%). Clean with dry cloth only. Avoid fluid of any kind to get into the charger.
•
Special Features
IP20 Convectin-cooled; high-impact plastics housing
•
Microprocessor-based 4-Step charging technology with soft start and automatic re-start of the charge cycle
•
5 Charging profiles: WET, GEL, AGM, Lithium (LiFePO4) and the Universal Mode (which fits all conventional lead-based or LiFePO4 starter
•
batteries)
Optimal and gentle charging for the greatest possiblity of charge cycles guaranteed with high frequent combinatorial circuit technology
•
Smart LCD display with indicators showing corresponding charge status and errors
•
Protection against short circuit, reverse polarity, over temperature or overload; spark proof – with no power nor voltage at output if no battery
•
is connected

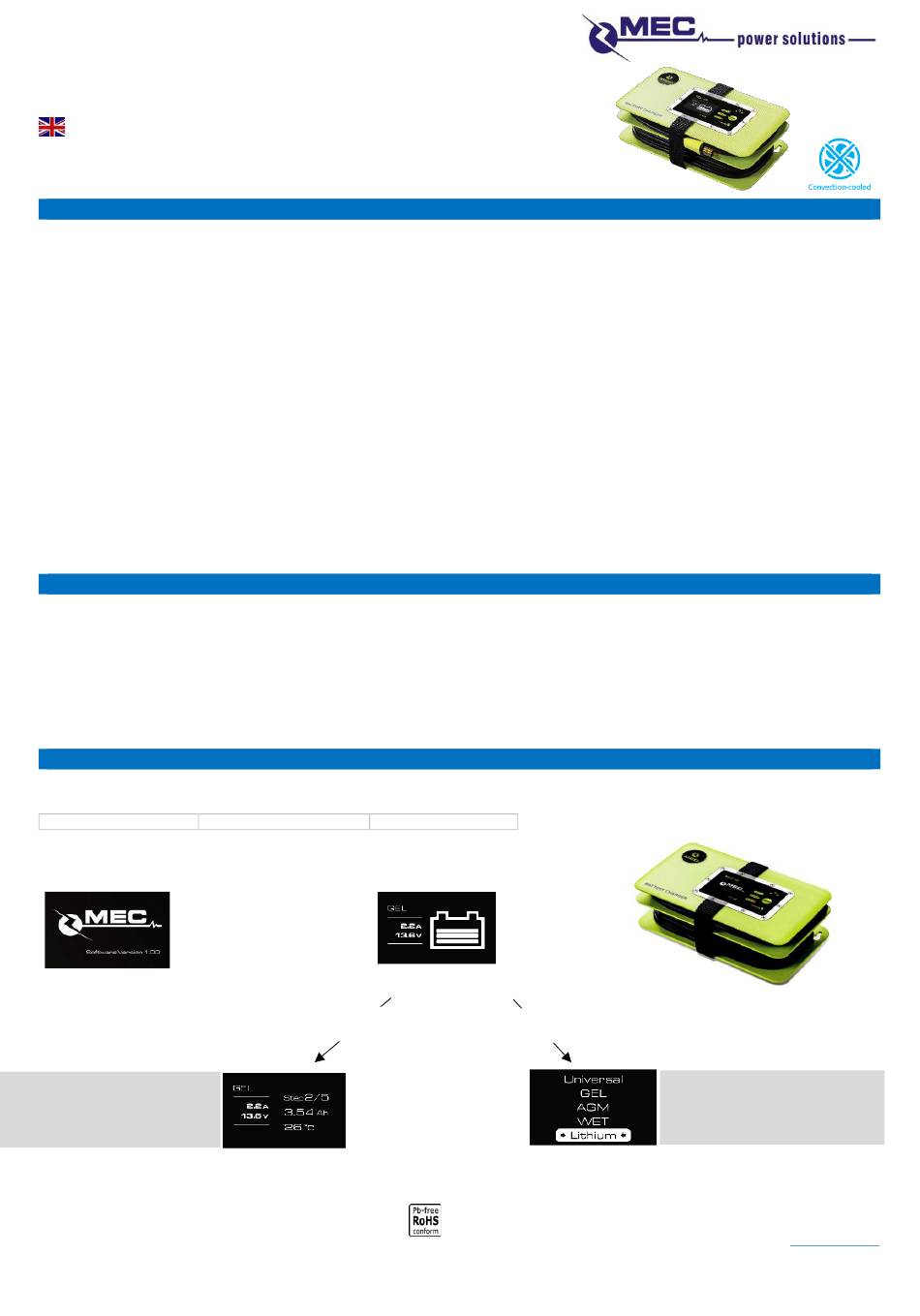

Smart LCD Display and Battery Type Selection
Smart LCD Display
1. Green Full LED
Battery Type Selection
Home Display
Charging current, voltage,
-
phase, temp. etc. are shown
Press to go back to Standard
-
Charging Display
IP20 Convection-cooled with built-in temperature sensor.
WET, GEL, AGM, Lithium (LiFePO4) and Universal Charging
Profiles. Fully automatic quick charger for motorized
equipment with integrated winter storage function.
2. Yellow Charge LED
=> Press for 4 Seconds
Standard Charging Display
Press for less than 3 Seconds
Detailed Display
3. Red Error LED
Press for more than 3 Seconds
Selection Display
Press to select Battery Type
-
Press for >3 seconds to save
-
and go back to Standard
Charging Display
