Mec Atlas-1800W Series Instruction Manual

Instruction Manual
Waterproof Battery Chargers (IP65)
Atlas-1800W Series:
Safety Rules and General Warnings
Persons, who are not able to use the charger in a safe way, because of their physical, sensory or mental incompetence, or because of their
•
lack of experience, should not use without the control or instruction from a skilled or qualified person.
The charger runs with 230 Volts alternating current, which is not suitable for children – Danger of Life. And beware of risk of electric shock at
•
all times.
Ensure sufficient air ventilation; do not cover the vent outlet while charging in progress.
•
Avoid flammable gases, solvents or vapours all the time. Prevent open flame or sparks while charging in progress. Explosion RISK!
•
The charger is exclusively designed for charging rechargeable batteries and must not be used for other purposes. Corresponding model
•
should be selected for particular lithium-based or lead-based batteries.
You should take into consideration of the charging instructions issued by the battery manufacturer before charging. Check also if the charge
•
profile fits your battery and application.
DO NOT OPEN or DISMANTLE the charger. Repair work must only be processed by authorized technical staff.
•
If the mains connection of the charger is damaged, it must be replaced with an original wire which is available at MEC or authorized dealers.
•
NEVER place the charger on top of the battery while charging in progress.
•
The charger should be protected against direct solar radiation or temperatures over 40°C.
•
The AC Input Use 12 AWG wire, If the mains connection of the charger is damaged, it must be replaced with an original wire which is available
•
at MEC or authorized dealers. Output Use 8mm sq wire.
The DC cable must not be cut, shortened or extended under any circumstances.
•
Keep the charger in dry room (rel. humidity <80%). Clean with dry cloth only. Avoid fluid of any kind to get into the charger.
•
Special Features
water resistant.
IP65 ;Extruded aluminum alloy housing
•
Battery type (Li-ion-, LiFePO4, AGM, WET Battery) selectable
•
Microprocessor-based 4-Step charging technology with soft start and automatic re-start of the charge cycle
•
Battery "wake-up" function by sending out programmed "wake-up" pulses
•
LED indicators showing corresponding charge status and errors; Distinctive warning of battery being in a state of deep discharge
•
Replacing charging configuration files through IR infrared function
•
Protection against short circuit, reverse polarity, over temperature or overload
•
Lead-acid battery type No current/voltage on DC cable when no battery is connected
•
Under-Voltage protection, need to restart the charger
•

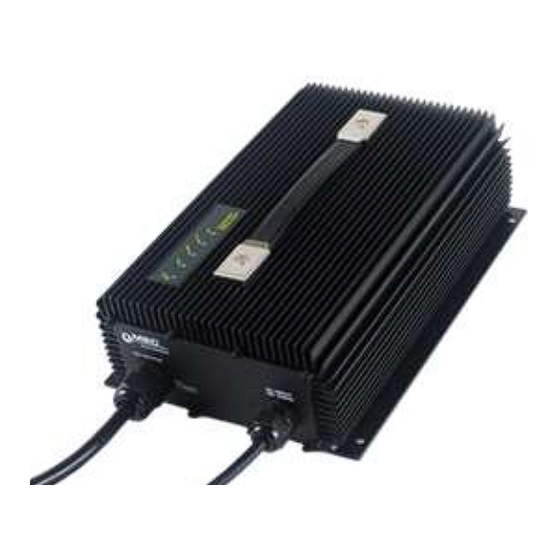

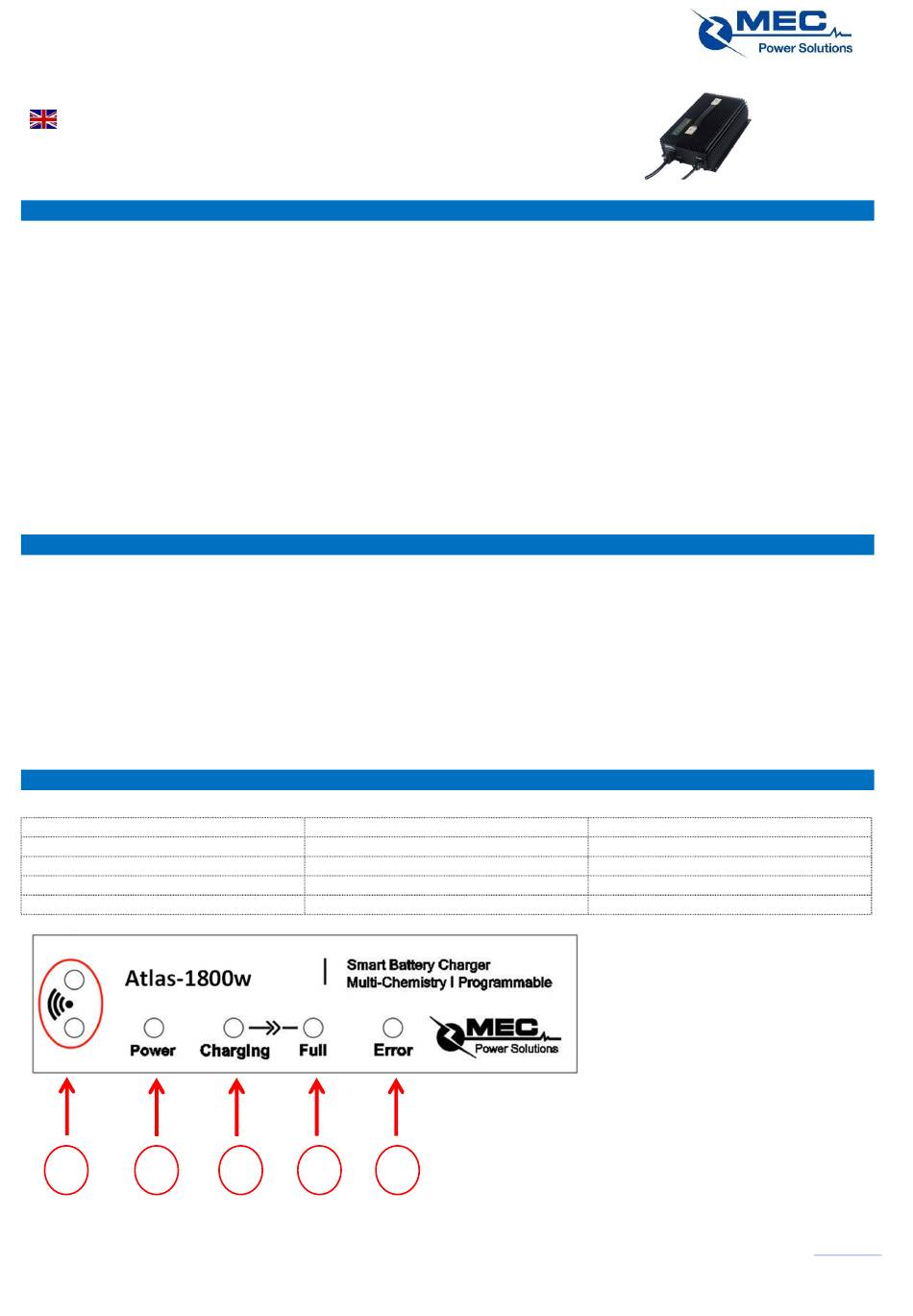

Product Configuration
1. IR connection LEDs
4. Full LED (Green)
7. DC Cable/ Connect Terminal
1 2
IP65 water resistant. With one or multiple, selectable
charge profiles and customized parameters.
2. Power LED （Green）
5. Error LED (Red)
8. LED Board
3 4 5
3. Charging LED (Yellow)
6. AC Cable
9. Handle
Mainland Energy Conversion Ltd.
Tel: +86-769-87711894
E-mail: andy@uwecn.comt
www.mec-powersolutions.com
