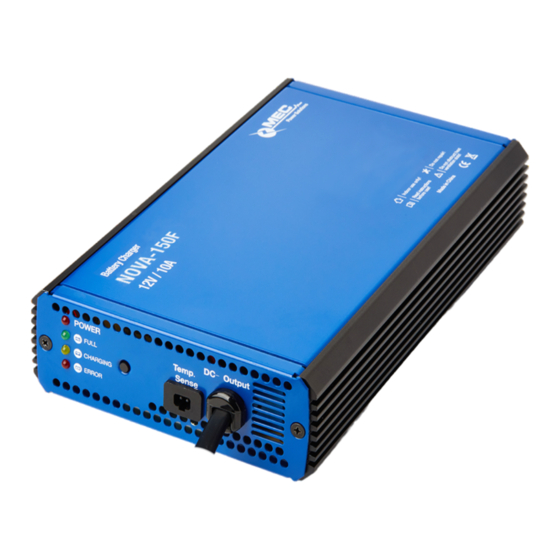

Mec NOVA-150F Series Instruction Manual

Instruction Manual
Battery Chargers
NOVA-150F Series:

Safety Rules and General Warnings

• Persons, who are not able to use the charger in a safe way, because of their physical, sensory or mental incompetence, or because of their
lack of experience, should not use without the control or instruction from a skilled or qualified person.
• The charger runs with 100-240 Volts alternating current, which is not suitable for children – Danger of Life. And beware of risk of electric shock
at all times.
• Ensure sufficient air ventilation; do not cover the vent outlet while charging in progress.
• Avoid flammable gases, solvents or vapours all the time. Prevent open flame or sparks while charging in progress. Explosion RISK!
• The charger is exclusively designed for charging rechargeable batteries and must not be used for other purposes. Corresponding model should
be selected for particular lithium-based or lead-based batteries.
• You should take into consideration of the charging instructions issued by the battery manufacturer before charging. Check also if the charge
profile fits your battery and application.
• DO NOT OPEN or DISMANTLE the charger. Repair work must only be processed by authorized technical staff.
• If the mains connection of the charger is damaged, it must be replaced with an original wire which is available at MEC or authorized dealers.
• NEVER place the charger on top of the battery while charging in progress.
• The charger should be protected against direct solar radiation or temperatures over 40°C.
•
In case of obvious damage or malfunctioning, disconnect the charger from the mains supply and protect against unintended reconnection.
• The DC cable must not be cut, shortened or extended under any circumstances.
• Keep the charger in dry room (rel. humidity <80%). Clean with dry cloth only. Avoid fluid of any kind to get into the charger.

Special Features

• IP20 Load-dependent fan cooling; spray-painted metal housing
•
Microprocessor-based 4-Step charging technology with soft start and automatic re-start of the charge cycle
• Battery "wake-up" function by sending out programmed "wake-up" pulses
• Optimal and gentle charging for the greatest possiblity of charge cycles guaranteed with high frequent combinatorial circuit technology
• 5 Selectable battery types (GEL, AGM, WET, Calcium, +PS-Mode) and built-in battery temperature sensor for models targeting lead-based
batteries
• LED indicators showing corresponding charge status and errors
• Protection against short circuit, reverse polarity, over temperature or overload
Product Configuration
Models Targeting Lithium-based Batteries
1. Mains Socket
4. Green Full LED
7. Wake-up Button
IP20 Load-dependent fan-cooled. With one (1) or multiple,
selectable charge profiles, customized parameters.
Ignition-Lock (optional).
2. Cooling Fan
5. Yellow Charge LED
8. DC Cable
3. Red Mains LED
6. Red Error LED
