ATLAS-300 Series:
Safety Rules and General Warnings
Persons, who are not able to use the charger in a safe way, because of their physical, sensory or mental incompetence, or because of their
•
lack of experience, should not use without the control or instruction from a skilled or qualified person.
The charger runs with 100-240 Volts alternating current, which is not suitable for children – Danger of Life. And beware of risk of electric shock
•
at all times.
Avoid flammable gases, solvents or vapours all the time. Prevent open flame or sparks while charging in progress. Explosion RISK!
•
Ensure sufficient air ventilation and prevent open flame or sparks while charging in progress.
•
The charger is exclusively designed for charging rechargeable batteries and must not be used for other purposes. Corresponding model should
•
be selected for particular lithium-based or lead-based batteries.
You should take into consideration of the charging instructions issued by the battery manufacturer before charging. Check also if the charge
•
profile fits your battery and application.
DO NOT OPEN or DISMANTLE the charger. Repair work must only be processed by authorized technical staff.
•
If the mains connection of the charger is damaged, it must be replaced with an original wire which is available at MEC or authorized dealers.
•
NEVER place the charger on top of the battery while charging in progress.
•
The charger should be protected against direct solar radiation or temperatures over 40°C.
•
In case of obvious damage or malfunctioning, disconnect the charger from the mains supply and protect against unintended reconnection.
•
The DC cable must not be cut, shortened or extended under any circumstances.
•
Special Features
IP65 Passive cooling; extruded aluminium-alloy housing
•
Microprocessor-based 4-Step charging technology with soft start and automatic re-start of the charge cycle
•
5 Selectable battery types (GEL, AGM, WET, Calcium, +PS-Mode) and built-in battery temperature sensor for models targeting lead-based
•
batteries
LED indicators showing corresponding charge status and errors
•
Protection against short circuit, reverse polarity, over temperature or overload
•
Battery recovery function for attempting to revive a deeply discharged or "dead" battery with recurring series of voltage/current pulses
•

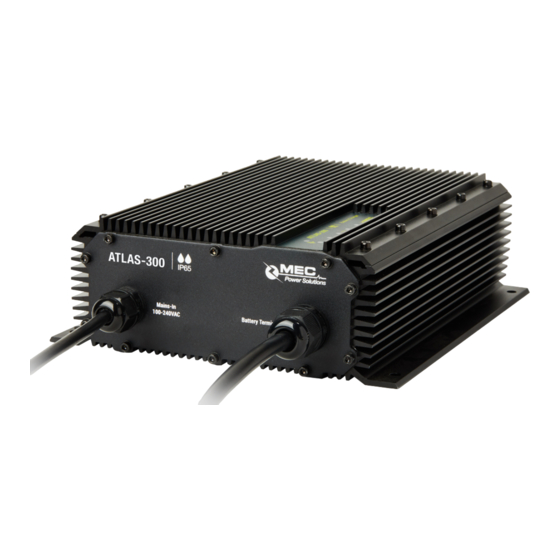

Product Configuration
Models Targeting Lithium-based Batteries

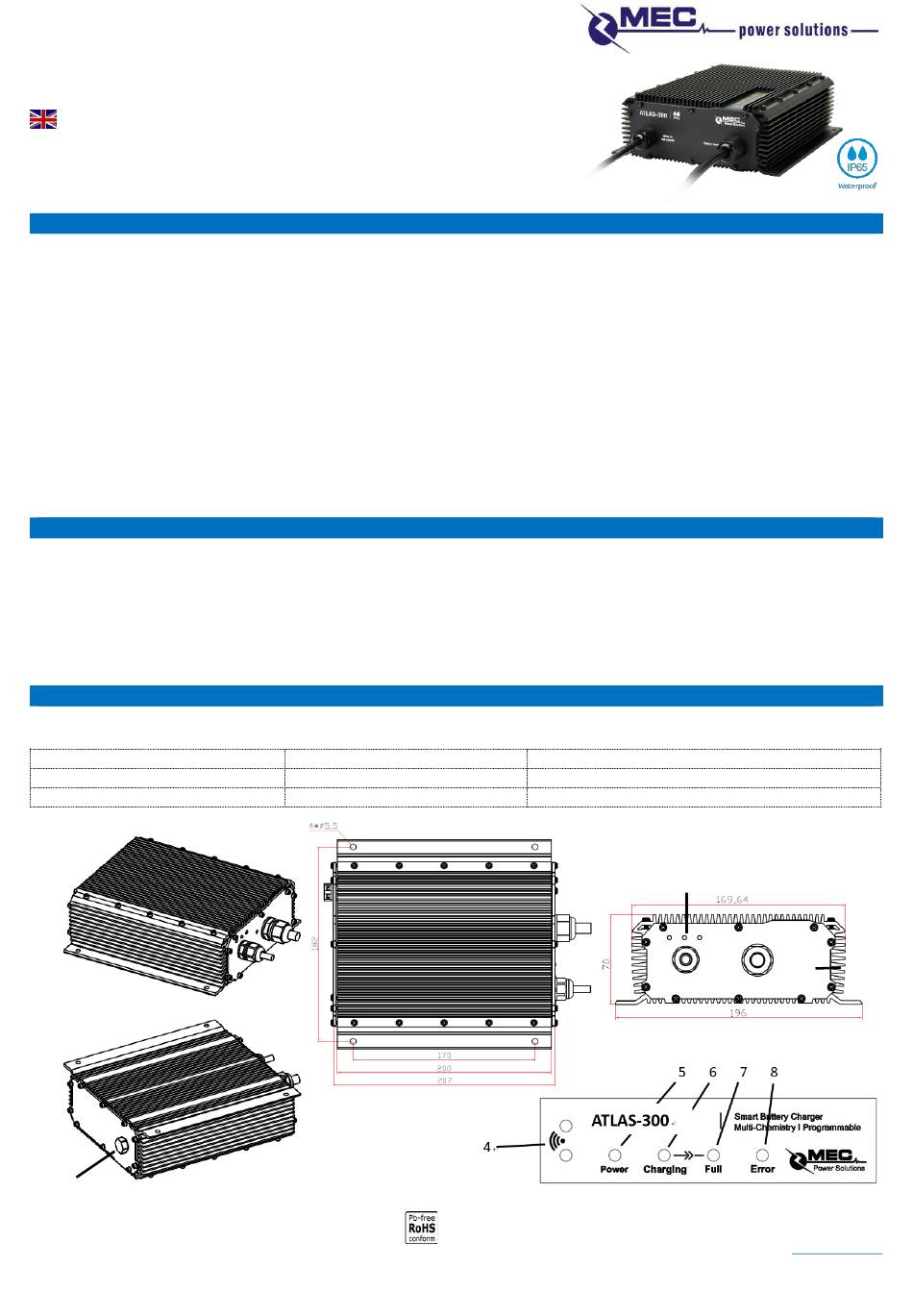

1. Protective Vent
4. IR-Interface LEDs
7. Green Full LED
1
IP65 water resistant, microprocessor-based. With one (1) or or
multiple, selectable charge profiles, customized parameters.
CAN-bus / Ignition-Lock (optional).
2. AC Cable
5. Green Mains LED
8. Red Error LED
3. DC Cable
6. Yellow Charge LED
2
