- Page 1 BEDIENUNGSANLEITUNG OPERATING INSTRUCTIONS MEC multifunktionales Motorrad Multi-functional motorcycle Batterie Ladegerät battery charger MCC-40 MCC-40...
- Page 2 Notes _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _______________________________________________________________________________________________ _________________________________________________________________________...
- Page 3 Five charging programmes for different types of batteries are stored in the charger and can be selected at the click of a button. When plugged in, the MCC-40 checks the charge status every 7 days and recharges the battery if necessary. This makes the MCC-40 ideal for the safe storage of your motorcycle starter battery over the winter.
-
Page 4: Scope Of Delivery

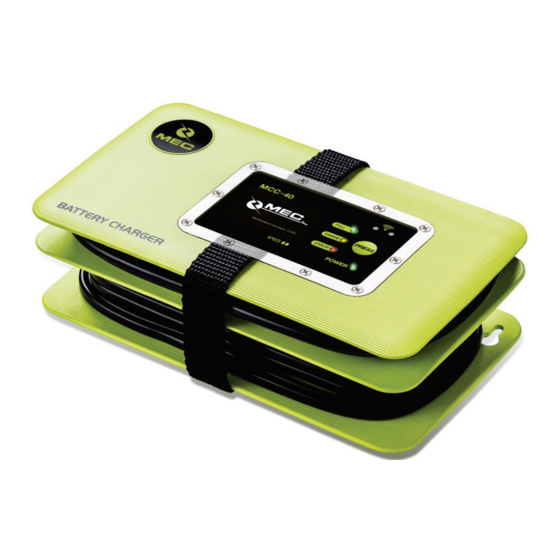

Scope of delivery Transport case MCC-40 battery charger with cable storage and fastening strap Charging plug 12mm DIN ISO 4165 with integrated temperature sensor Pole terminal adapter with socket for connection with the charging plug and pole terminals for direct connection to the battery... -
Page 5: Safety Information
Keep the charger out of direct sunlight. • During charging the battery must be placed in a well ventilated area. • MEC is not liable for any personal injury and/or property damage as a result of improper or incorrect use. •... -
Page 6: Connection / Start-Up
Connection / start-up The MEC MCC-40 battery charger is designed for 12V lead-based or 12V lithium (LiFePO4) starter batteries. The battery charger is delivered with "Universal" charging profile. This profile allows all conventional lead-based and lithium-iron-phosphate starter batteries to be safely recharged. To ensure the optimal recharging of the starter battery, a special charging profile can be selected for WET, GEL, AGM and lithium (LiFePO4), which is saved when the power is disconnected. - Page 7 Selecting the battery types and display functions on the screen Description of the operating display Home charging display • MEC symbol • Software version Standard charging display • Selected charging profile • Current charging current [A] • Current battery voltage [V] •...
-
Page 8: Charging Profiles
Charging profiles GEL/AGM/WET charging profile Universal/Lithium charging profile Overview of charging profile Charge Phase 1 Phase 2 Phase 3 Phase 4 Phase 1 Mode recovery soft-start bulk charge absorption charge trickle charge Imax. Umax. Umax. Imin. (U1) (I1) (U2) (I2) (U3) (I3) (U3) - Page 9 Description of the error symbols (ERROR) LED- Display Error description Signal Trigger: Defective battery Possible causes: A defective battery or a battery with excessively low rated voltage was connect- ed to the charger. Actions: - Immediately remove the battery from the charger. - Check the rated voltage on the starter battery.
-
Page 10: Protective Insulation
5: Protection against spray water from any angle Pay attention to the operating instructions Please carefully read through the operating instructions and pay at- tention to instructions before first using your MCC-40 battery charger. Protective insulation The charger may be operated without any additional protective earth... -
Page 11: Technical Data
Technical data Model: MCC-40 Input voltage: 100-240VAC / 50-60Hz Input current:: max. 1000mA Output voltage: max. 14.8 VDC Output current: max. 2.2 A Ambient operating temperature: -10°C to +45°C Storage temperature: -25°C to +65°C Battery types: 12V lead/acid (WET, GEL, AGM) and lithium (LiFePO4) batteries...
