P6EX-A+ User's Manual
4: Reference Information – 4.4

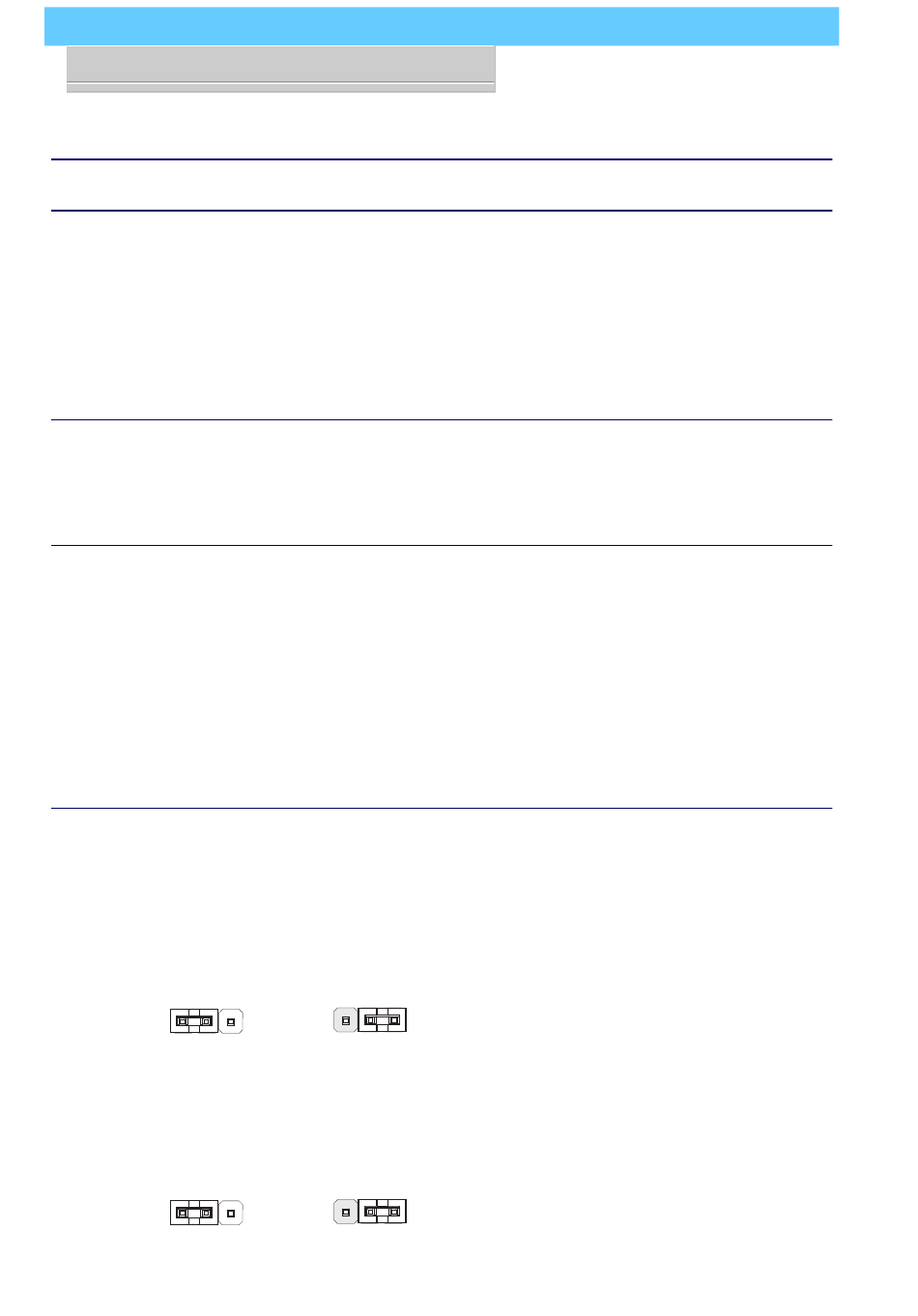

Jumper Settings
Function
Keyboard
Power-On
Note: The Keyboard Power-On feature may not work properly if the
system keyboard or power supply are not within the required specifica-
tions for this feature. This is a problem caused by such components, not
the mainboard. If Keyboard Power-On doesn't work, set this jumper to the
Disable setting. The Keyboard Power-On command is Ctrl + F12
Clear CMOS
* With system turned off, put cap in the clear position for a moment to
clear current settings and then return it to the Normal position
Note:
[D] = Default setting
1. Clock Settings:
CPU External Clock speed and Internal Clock factor are set in the CMOS
Setup Utility BIOS Features Setup section, not by jumpers.
2. CPU Status Detection:
The system automatically detects the CPU status at start-up and will
display a message on-screen if the CPU has been removed or changed
since the last shut-down.
JP1: Keyboard & Mouse Voltage Selector
Enable
JP3: Clear CMOS
Clear
Jumper Settings
JP1 Enable
Disable
JP3 Clear
Normal
Disable
Normal
1-2 [D]
2-3
1-2*
2-3 [D]
