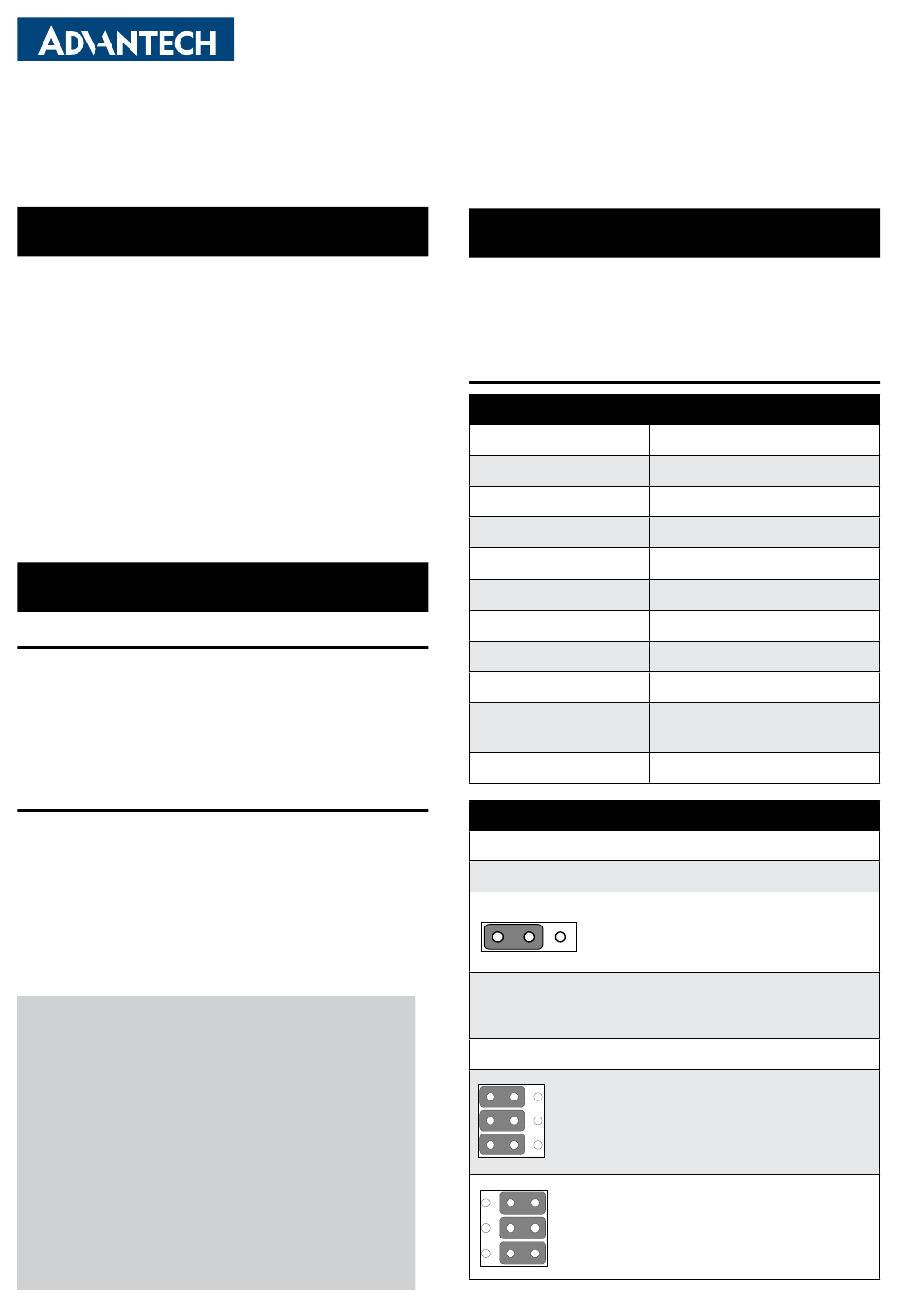

Advantech PCA-6108P6 Startup Manual

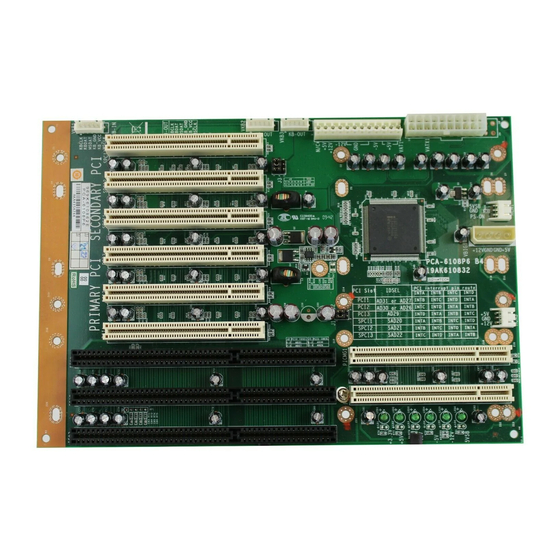

PCA-6108P6 Backplane: 8-slot BP for 8-slot Chassis, 1 ISA, 5 PCI,
1 PICMG, 1 PICMG/PCI
Startup Manual

Packing List

Before you begin installing your card, please make sure that
the following items have been shipped:
1. PCA-6108P6 startup manual
2. 3-pin ATX connector cable
3. Screw M4*6L (15 pcs)
4. 2-year quality warranty card
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note: Acrobat Reader is required to view any PDF
file.Acrobat Reader can be downloaded at:
www.adobe.com/Products/acrobat/readstep2.
html (Acrobat is a trademark of Adobe)

Specifications

Standard Functions

• PICMG 1.0 slots: PCA-6108P6 supports PICMG 1.0 CPU
boards
• ISA slots: One ISA slot
• 32-bit PCI: Five 32 bit/33 MHz PCI slots
• PICMG/PCI slot: One PICMG/PCI slot

Mechanical and Environment

• Dimension: 260mm x 200mm
• Power supply voltage: +12 V, +5 V, -12 V, -5 V, +3.3 V,
+5 VSB
• Power requirements: Refer to the CPU board, add-on
card, and peripherals
• Operating temperature: 0 ~ 60° C
• Weight: 0.398 kg
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://support.advantech.com
This manual is for the PCA-6108P6 Series.
Part No. 2002610824
Printed in China
2002610824
1700030500
1939000410
2190000902
5th Edition
July 2014
Jumpers And Connectors
The board has a number of jumpers that allow you to con-
figure your system to suit your application.
The table below lists the function of each of the jumpers and

connectors.

Jumpers and Connectors

Connectors
Label
PICMG1~PICMG2
ISA3
PCI1~PCI3
SPCI1~SPCI3
VAT1
VATX1
VBIG1
VKB1~VKB3
HCN1
HCN3

Jumpers

Label
HCN1
1 2 3
Remove default jumper
and connect 3-pin ATX
connector cable
J3
3 6 9
1 4 7
3 6 9
1 4 7
PCA-6108P6 Startup Manual 1
Function
PICMG1.0 CPU board slot
ISA slot
32 bit / 33MHz PCI slot
32 bit / 33MHz PCI slot
AT power connector
ATX power connector
BIG 4-pin connector
KB-In or KB-Out connector
PS-On, to CPU card for ATX
power signal
+5 V and +12 V fan connector
Function
ATX/AT Mode Selection
AT Mode
ATX Mode
PCI Bridge Voltage Selection
Setting 5V voltage to PCI slot
(default)
Setting 3.3V voltage to PCI
slot
