When using electrical equipment, basic safety precautions should always be followed including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1.
DANGER- Risk of shock- Disconnect power before installation.
DANGER – Risque de choc – Couper l'alimentation avant l'installation.
2.
This luminaire must be installed in accordance with the NEC or your local electrical code. If you are not familiar with these codes
and requirements, consult a qualified electrician.
Ce produit doit être installé conformément à NEC ou votre code électrique local. Si vous n'êtes pas familier avec ces codes et ces
exigences, veuillez contacter un électricien qualifié.
3.
Suitable for wet locations.
Convient aux emplacements mouilles
4.
Suitable for operation in ambient not exceeding 40°C.
Peut etre utilise a une temperature ambiante n'excedant pas 40°C.
5.
Suitable for mounting within 1.2M (4ft) of the ground.
Peut etre installe a moins de 1,2 m (4 pi) du sol.\
6.
Min. 75°C supply conductors.
Les fils d'alimentation 75°c min.
7.
Class 1 wiring only.
Cablage de classe 1 uniquement.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

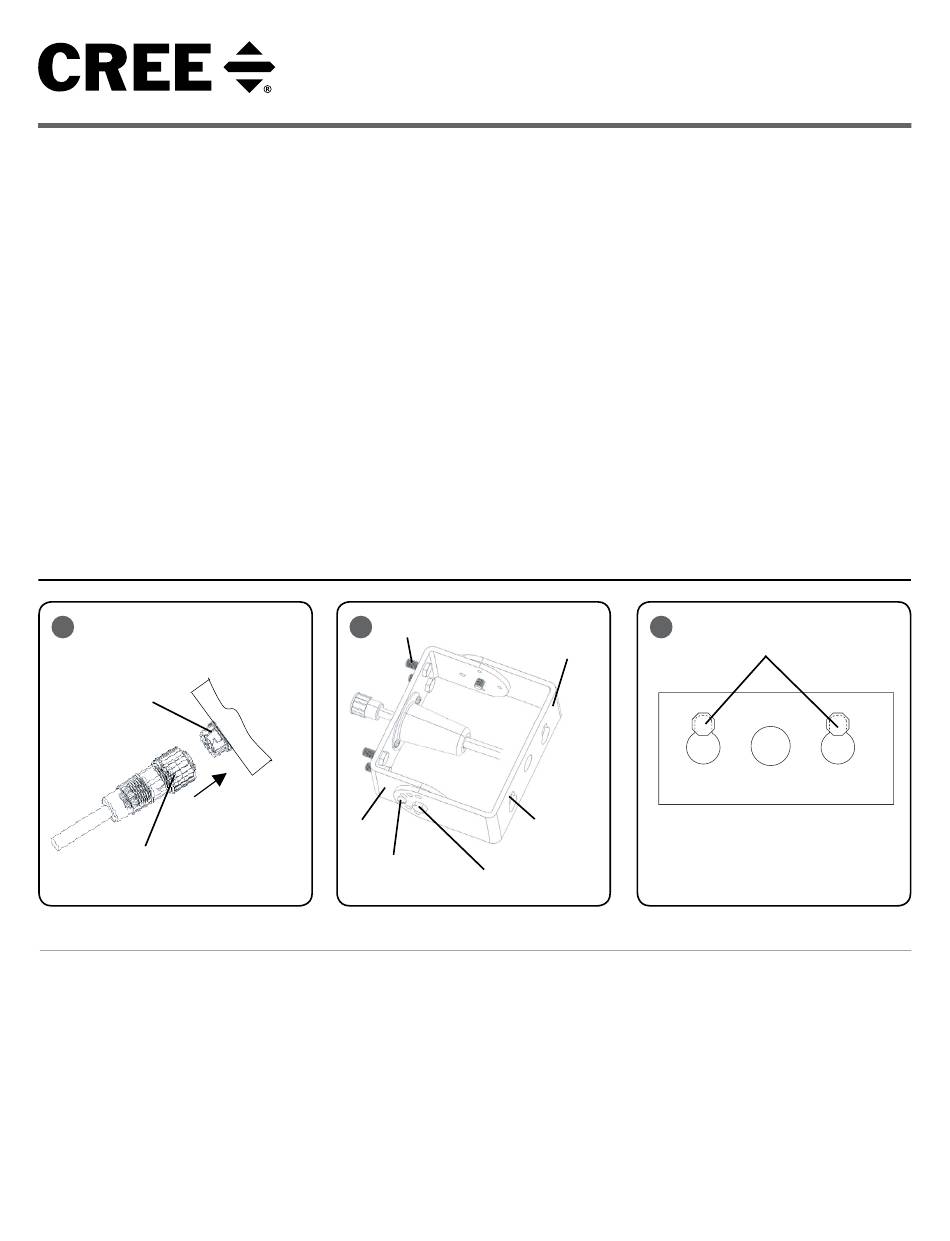

TO INSTALL:
1
Male End of
Connector
Female End of
Connector
TRUNNION MOUNT- REQUIRES USE OF NTX-TR ACCESSORY
NOTE: Area lights are only designed for
mounting orientation from 0° (horizontal) to
45° tilt.
NOTE: Area lights are not to be used as
uplights.
STEP 1:
Plug the female end of the quick connect,
supplied with the trunnion, into the male
connector on the luminaire. Make sure the two
halves lock together. See Figure 1.
STEP 2:
Align the four holes in the inner trunnion with
the four tapped holes in the luminaire housing.
Attach the trunnion to the luminaire using
1 of 8
IMPORTANT SAFEGUARDS
2
(4) 5/16" (8 mm)
Bolts
Inner
Trunnion
#10-24 Screws
to Adjust the
(2) 5/16"
Orientation
(8 mm)
Bolts
the (4) 5/16" (8 mm) bolts and lockwashers
supplied with the trunnion kit. Tighten bolts to
132 in-lbs (15 N·m). See Figure 2.
STEP 3:
Mount the luminaire in the desired location
using (2) 3/8" (10 mm) bolts (customer
supplied) appropriate for the mounting surface.
See Figure 3.
STEP 4:
Make wiring connections to the cord leads per
the Electrical Connections section.
STEP 5:
Remove #10-24 positioning screws on both
sides of the trunnion.
Trunnion, Adjustable Arm and Direct Arm Mount
INSTRUCTIONS D'INSTALLATION
3
Outer Trunnion.
Fix this on the
Mounting Surface
For Wall
Mounting,
Keep the
Keyholes Facing
Upwards During
Installation
STEP 6:
Loosen 5/16" (8 mm) hex head bolts located on
both sides of the trunnion.
STEP 7:
Rotate trunnion to desired tilt angle. Line up
inner and outer trunnion positioning holes.
STEP 8:
Insert one #10-24 screw, removed in Step
5, into matching holes of inner and outer
trunnions. Tighten screw to 30 in-lbs (35 N·m).
Repeat with screw on opposite side of trunnion.
STEP 9:
Tighten both 5/16" hex head bolts on opposite
sides of the trunnion to 132 in-lbs (15 N·m).
NTA Series
LED Area Light
INSTALLATION INSTRUCTIONS
Bolts into Keyholes Slots First
LPN00631X0001A0_B
