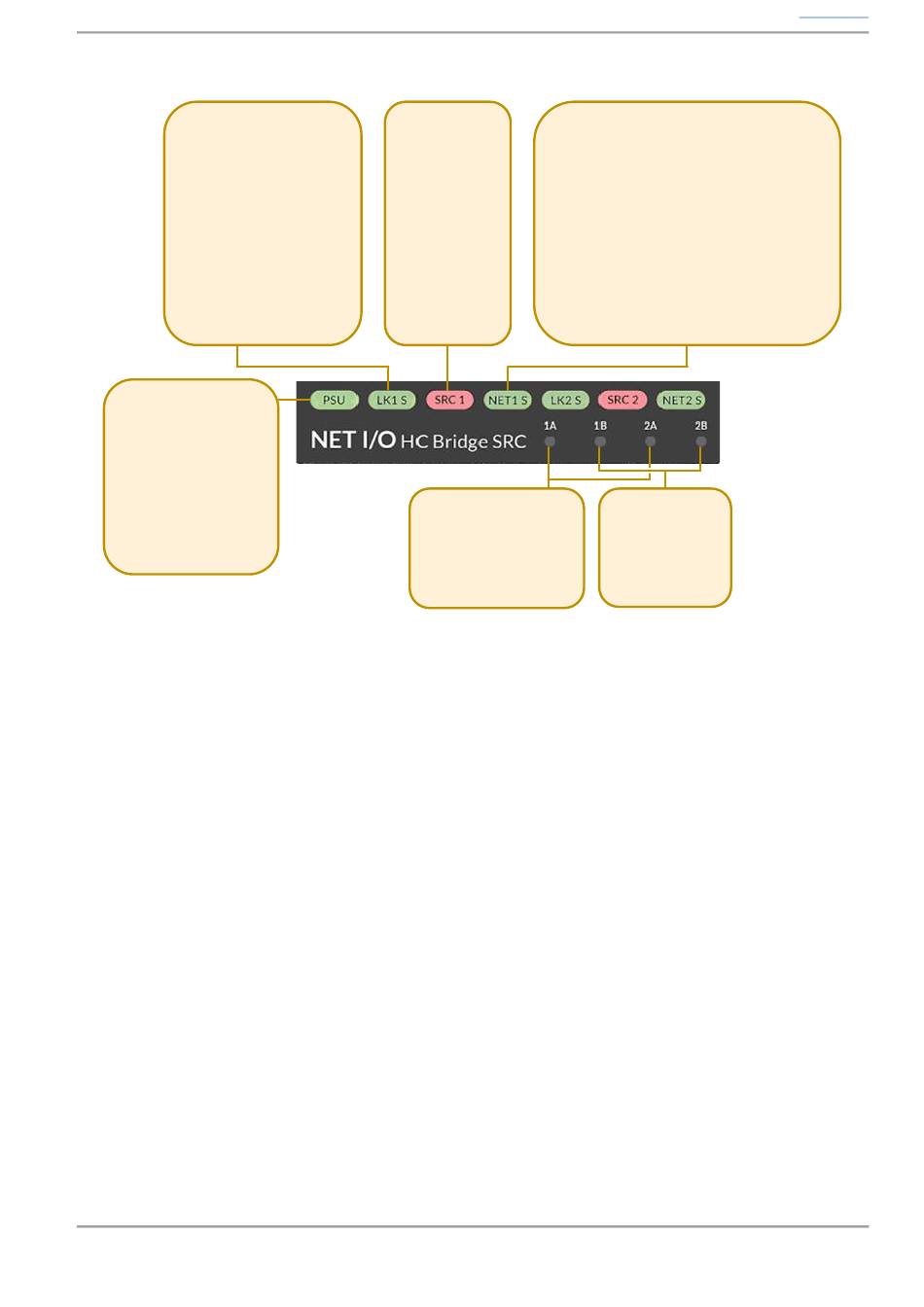

Status LEDs and User Buttons
LK1 S and LK2 S indicate the
current sync status of the
respective HC card:
Green (solid) - Synced to incoming
HC Link audio data
Green (flashing) - Resyncing
Red (solid) - No sync
Off - HC card not set to sync to
incoming HC Link audio data
Green - normal operation,
both power supplies
active
Red - primary or
secondary power supply
inactive
NET1 S and NET2 S indicate the current sync status
SRC 1 and SRC 2
of the respective HC card:
indicate the SRC
status of the
Green (solid) - Synced to incoming Dante network
respective HC
card:
Green (flashing) - Resyncing
Green (solid) -
Red (solid) - No sync, primary AND secondary
SRC on
Dante connections inactive
Red (solid) -
Red-green (flashing) - Primary OR secondary
Audio muted
connection to Dante network inactive
Off - SRC off
Off - HC card not set to sync to incoming Dante
network clock
Pressing 1A or 2A toggles
whether the respective HC
card syncs to the incoming
HC Link audio data or
Dante network
Pressing 1B or 2B
toggles the SRC
on/off for the
respective HC card
