HC Bridge SRC User Guide

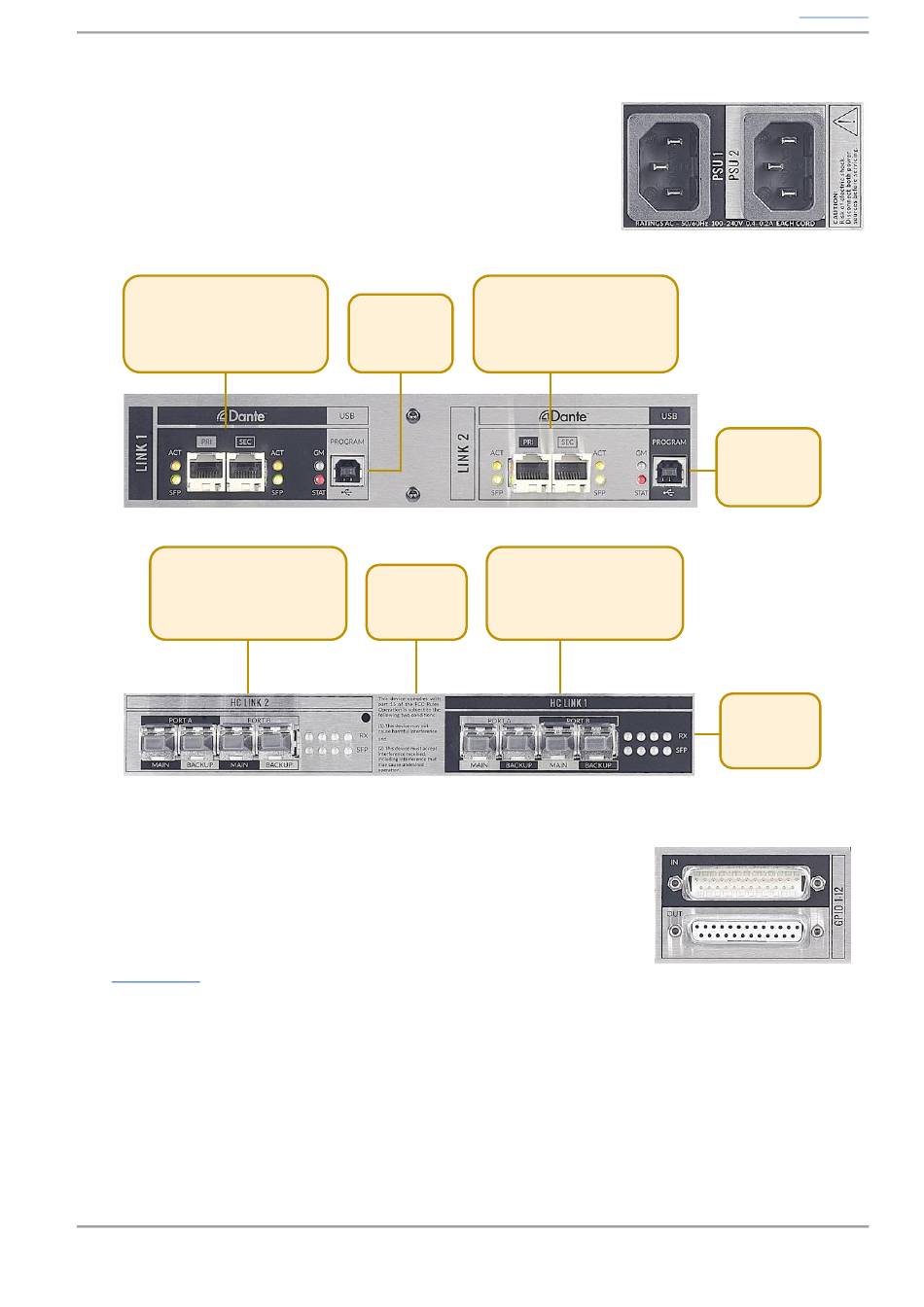

Hardware Connections

Mains Power Connections
The HC Bridge SRC includes redundant PSUs with IEC connectors,
either supply can individually power the unit. Ideally these should
be connected to separate power circuits to provide redundancy of
incoming AC power.
Dante Connections
HC Card 1 Dante port primary and
secondary SFP cages can be fitted
with either RJ45, single-mode or
multi-mode LC fibre connectors
HC Link Audio Transport Connections
HC Card 1 Dante port primary and
secondary SFP cages can be fitted
with either RJ45, single-mode or
multi-mode LC fibre connectors
GPIO
12 General Purpose opto-coupled inputs and 12 General Purpose relay
outputs are available for use with a connected System T console.
N.B. These GPIO are only available to a System T console connected to
link 1.
See Appendix B for pinout information.
HC Card 2 Dante port primary and
secondary SFP cages can be fitted
HC Card 1 USB
with either RJ45, single-mode or
Program port
multi-mode LC fibre connectors
(service use only)
HC Card 2 Dante port primary and
secondary SFP cages can be fitted
HC Card 1 USB
with either RJ45, single-mode or
Program port
multi-mode LC fibre connectors
(service use only)
Contents
HC Card 2 USB
Program port
(service use only)
HC Card 2 USB
Program port
(service use only)
