Altronix WPTV244UL Series Installation Manual page 5

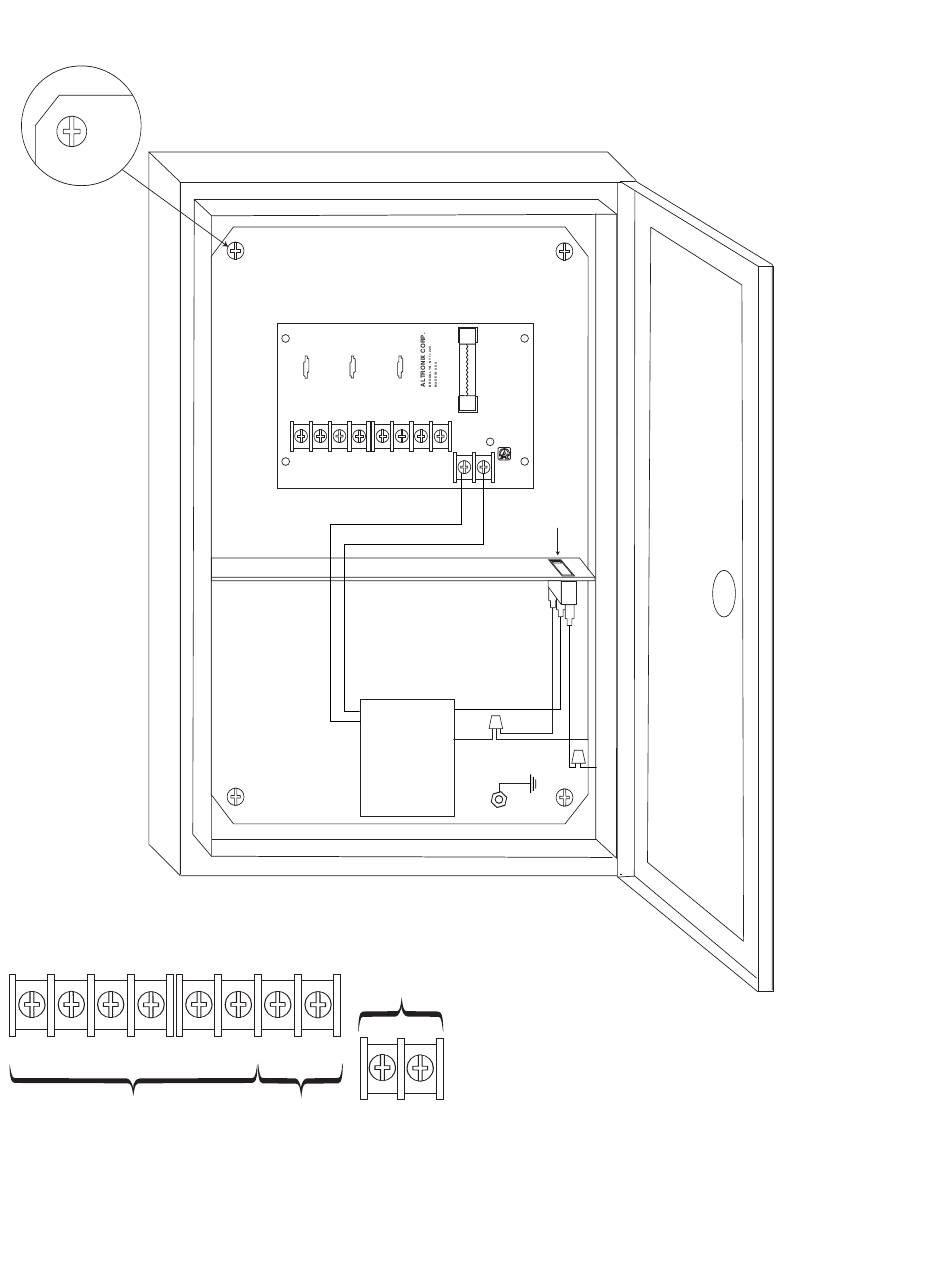

Fig. 2
WPTV244175UL
Fig. 2A
Terminal Blocks for Fig. 2
1P, 2P, 3P, 4P = FUSED OUTPUTS
1N, 2N, 3N, 4N = COMMON OUTPUTS
1P 1N 2P 2N
PTC protected outputs
1 through 3.
Power limited,
Class 2 Rated,
2.5 amp max
per output.
F1 F2
1P, 2P, 3P, 4P = FUSED OUTPUTS
1N, 2N, 3N, 4N = COMMON OUTPUTS
1P 1N 2P 2N
Input from
transformer.
3P 3N 4P 4N
Non-power
limited, fuse
protected output
(see Reference
Chart).
F3 F4
PD4
POWER DISTRIBUTING UNIT
LED
3P 3N 4P 4N
INPUT
non-power
limited
Power
Switch
115VAC Input
XFMR
50/60 Hz.
Green
Lead
(Ground)
