Summary of Contents for TechniSat TechniMedia UHD

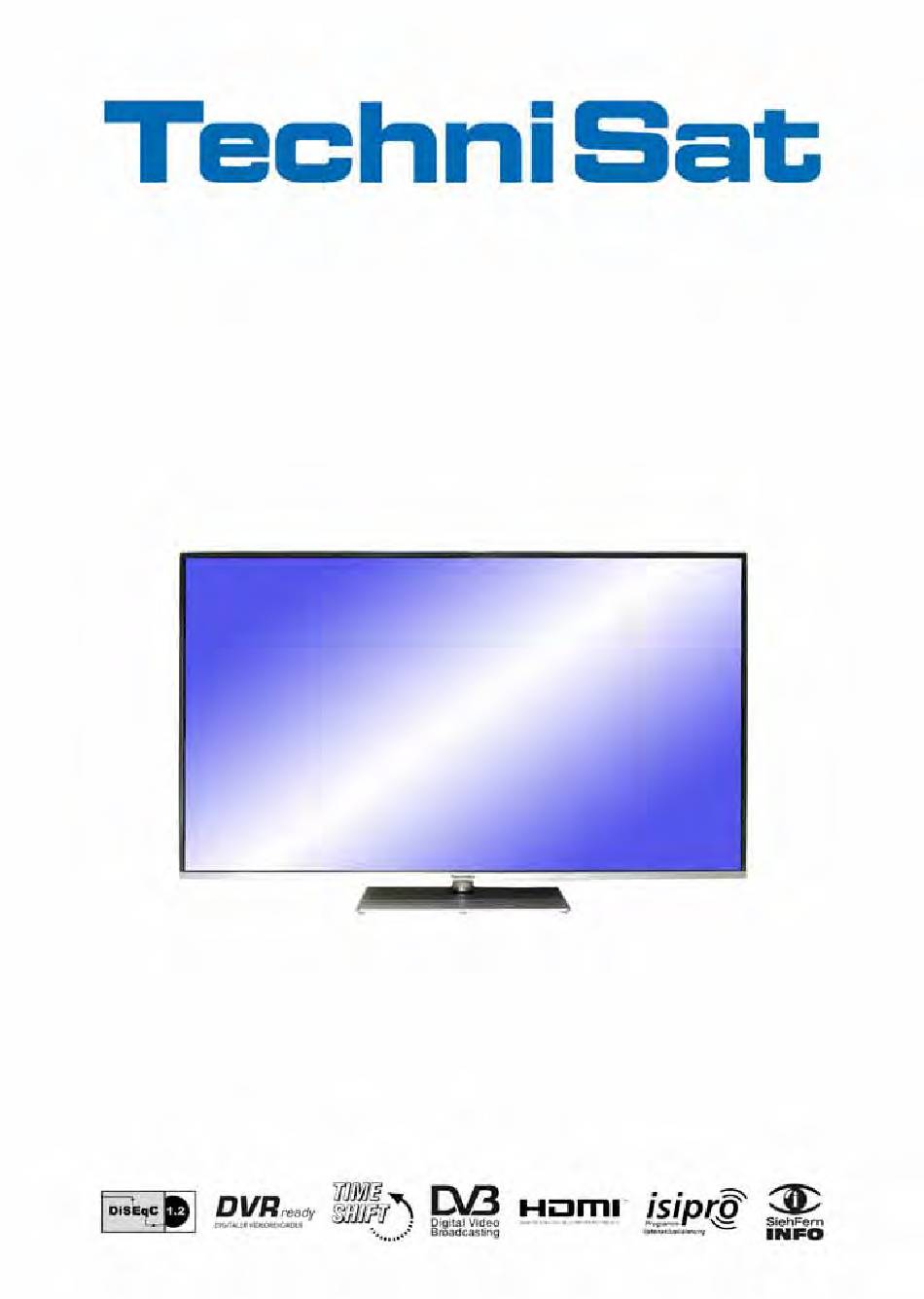

  • Page 1 Quick start manual TechniMedia UHD...

  • Page 2: Display Operation

    1 Illustrations TV connections / Local control Connections Display / Operation 15 USB-port Common Interface On/Standby 16 HDMI interface 3 (ARC) 10 TV/AV Card reader 17 LAN network port 11 Programme + Audio output analogue 18 Scart connection (AV)* 12 Programme - (3,5 mm jack plug) 19 LNB Input 2 (DVB-S) 13 Volume +...
  • Page 3 1 Illustrations On/Standby Sleep Timer Remote control code Sound on/off Numeric keypad keys TV/Radio mode Recording 0/AV (source selection) Stop / DVR Fast forward Rewind Pause / playback Arrow keys Page down Page up Info Back Options selection Volume +/- Channel +/- Function selection Function keys/off...

  • Page 4: Please Read This First

    This quick start guide only describes the most important connection options and the basic operating steps to enable you to start operating the TechniMedia UHD quickly, and does not replace the operating manual. Many additional functions are described in the operating manual that are not mentioned in this quick start guide.
  • Page 5 3 Connecting Connection/s connecting the satellite antenna to LNB-Input 1/LNB-Input 2 When operating with an antenna signal, the LNB must be connected to LNB Input 1. Connecting the cable connector (digital and/or analogue) and/or the DVB-T antenna to the antenna input on the TV. Connecting the television to a BluRay/DVD player using an HDMI cable.

  • Page 6: Satellite Antenna

    To receive DVB-T signals and DVB-C and analogue cable channels simultaneously, use the TechniSat DVB C/T switch (part no. 0000/3263). 3.3 BluRay/DVD player Use an HDMI connection cable to connect your BluRay/DVD player, for example, to an HDMI connection.

  • Page 7: Basic Operation

    4 Basic operation Dear Customer, The following section starts by covering basic operation as well as recurrent operating steps for the TV. This should make it easier to read the instruction manual, since it avoids repeated description of identical steps at each individual stage. If it is necessary for a function or setting for the TV to be different from the basic operation, the difference in operation is described in detail in the relevant section in the instruction manual.
  • Page 8 4.2 Calling up the main menu and navigating through the menus / functions The following example will illustrate how you reach the main menu and call up a submenu. The objective of the example is to call up the Picture settings menu. Press the Menu button.
  • Page 9 Use the up/down arrow keys to highlight the Picture settings item. > The Picture settings menu is opened by then pressing the OK button. > You can also highlight the individual menu items in the same way as you highlight an item on a submenu to open it and alter the respective settings.

  • Page 10: Changing A Setting

    4.3 Accepting settings / Exiting menus and functions In some menus and functions the changes made must be accepted manually in order to save them permanently. If this does not happen, the function or the values that existed before the change was made will be reset automatically on exiting the menu.
  • Page 11 4.4.1 Arrow selection method > If is shown on the left and on the right, next to the set value, you can alter this using the left/right arrow keys. 4.4.2 Selection list is shown on the right, next to the set value, the value is changed using the selection list. Press the OK button to open the selection list.

  • Page 12: Arrow Keys

    4.4.3 Entering numbers Enter the new setting you want using the numeric keypad key if a question mark > or a number value is shown inside the highlight. Note the number of digits used in the entry since there must always be the same number used.
  • Page 13 If you are using a USB or wireless keyboard, e.g. the TechniSat ISIOControl Keyboard (Product no.0001/3850) or ISIOControl Keyboard II Product no.0002/3850), you can also use this keyboard to carry out all of the input entered via the virtual keyboard.

  • Page 14: Options Selection

    4.5 Options selection In some menus and operating modes (e.g. TV mode, music/images playback etc.), you have the option of calling up additional functions and options via the options selection function. Press the Options button to open the options selection function in the lower right-hand >...

  • Page 15: Initial Installation

    5 Initial installation During initial installation of the TV, the AutoInstall installation wizard starts automatically. Using the installation wizard is the simplest way for you to create the most important settings for your TV. The initial installation shown here simply serves as an example. The exact process for the initial installation will depend on the settings you select.
  • Page 16 Display mode Use the up/down arrow keys to select your preferred display mode and confirm by > pressing the OK button. You can change the selected display mode again to whatever you want after AutoInstall, as described in section 10.1 of the instruction manual. When using the intense or natural image modes, observe the information displayed and points 3.3.3, 7.10 and 10.1 of the operating manual and confirm by pressing the OK button.
  • Page 17 Number of antenna signals (DVB-S) Select the number of attached DVB-S antenna feed lines. If the DVB-S source has been disabled, this page of the installation wizard does not appear; you are taken directly to the “Antenna settings (DVB-T)” page instead. Use the right/left arrow keys to select the attached antenna signals and confirm by >...

  • Page 18: Network Configuration

    Antenna configuration (DVB-T) In this step, a channel range is displayed with the signal levels of the channels so you can align the DVB-T antenna to ensure optimal reception. The “channel search / ISIPRO” appears immediately if DVB-T has been disabled. Use the up/down arrow keys to highlight the Antenna supply field and confirm >...
  • Page 19 Channel search / ISIPRO - DVB-S only To download the available current channel list, use the up/down arrow keys to > highlight the ISIPRO - service list update line and start the process by pressing the OK button. After the service list update, an automatic channel search on all other configured reception sources is then carried out via “All Channels”.

  • Page 20: Software Updates

    Software updates > If you do not want to wait for a search for new software or a software download, you can, if necessary, skip this step by pressing the Info button. If there is no new TV software available, you can press the OK button to go to the next >...
  • Page 21 watchmi Select the desired option using the arrow keys and then confirm by pressing the OK > button. The watchmi service is switched off. The watchmi service is switched on. Please also note the further instructions and explanations regarding watchmi under point 7.26 of the operating manual.

  • Page 22: Product Registration

    Product registration By registering your product you secure further benefits and help us to tailor our products and services to suit you even better. Please note that an Internet connection is required to do so. Exiting the installation wizard Confirm the final message from the installation assistant by pressing the OK button. >...
  • Page 23 process takes several seconds to complete. 6.1.2 Switching on from standby mode Switch the TV on by pressing the On/Standby button on the remote control or on the > TV, or the Channel +/- keys on the remote control or on the TV, or a numeric key between 0 and 9 on the remote control.
  • Page 24 6.2 Selecting a channel 6.2.1 Using the channel up/down buttons You can switch between channels one at a time using the Channel +/- buttons on the > remote control or on the TV. 6.2.2 Using the numeric pad keys Use the numeric keypad keys to enter the number of the channel you >...
  • Page 25 6.2.3.2 Selecting a list To make it easier for you to find channels, your device provides various channel lists. You can select your favourite’s lists or display the channels sorted alphabetically from the list of all channels, the TV provider lists or according to genre. Press the OK button to open the active channel list.

  • Page 26: Additional Programme Information

    6.3 AV source Press the AV button to open the AV sources selection window and select a > device connected to the TV’s HDMI inputs (HDMI 1 / 2 / 3) or to the Scart socket (EuroAV). Select the source you want using the up/down arrow keys and confirm by pressing >...

  • Page 27: Volume Control

    6.5 Receiving encrypted channels > Insert a CI-/CI+ module into the slot with the top facing to the back and insert the Smartcard into the card slot in the CI-/CI+ module, with the golden chip to the rear and pointing in the direction of insertion >...

  • Page 28: Display Mode

    The sound modes can be configured as desired as described in point 10.2 of the operating manual. 6.9 Display mode Using the image mode selection function you can switch between the Economic (home use), Natural (standard), Intense (presentation), Film (Cinema) and PC (Graphics) image modes directly during operation.
  • Page 29 6.13 Format switchover / Zoom Pressing the Zoom/Format button allows you to select the various pre-defined > formats (original, optimum, optimum 16:9, full zoom and stretch) as well as the user-defined setting, where you can adjust the picture as you wish. The following options are available to adjust the picture according to your personal preference: red function key...
  • Page 30 6.17 SFI programme information guide Your TV has SFI electronic programme information. You can use this to display programme information for a single or a number of digital channels on the screen and to obtain a very quick overview of the current programmes, or programmes being broadcast that day, or on subsequent days.

  • Page 31: Selecting A Function

    6.18 Selecting a function You can open the Navigation menu (NAV menu) to select the function you want by > pressing the function selection button. To do this also observe sections 7.21 and 10.9 of the instruction manual. 6.19 HbbTV The symbol in the infobox indicates that the broadcaster provides an HbbTV application.
  • Page 32 TV must be connected to your home network/DSL router via either LAN or WLAN. Internet access provides you with various Internet functions such as unrestricted browsing, use of interactive services, video on demand and the new ISIO Live TechniSat service portal.
  • Page 33 6.20.1.1 Selecting a list Your TV provides various Internet lists to make it easier for you to find web links. You can select and display all your configured Favourite lists as per section 13. Use the Internet lists item in the Options selection to select the Internet list >...
  • Page 34 6.20.3 Navigating in the open website > Once the desired website has loaded and is displayed, depending on the setting under point 10.5.2.6 of the operating manual, either a highlighted area/frame or term/text appears, or the mouse cursor appears at a position on the screen. You can use the arrow keys to move the highlight/frame, or the cursor, to the areas >...

  • Page 35: Operating The Dvr

    6.20.9 Ending Internet use To switch from a web page you have called up back to normal mode, press the WWW > >To switch to TV/Radio mode from an accessed web site, press the TV/Radio button or press the WWW button three times. 7 Operating the DVR The DVR function (DVR=Digital Video Recorder) means you no longer have to use an external recorder (e.g.

  • Page 36: Ending Recording Automatically

    7.1.3 Ending manual recording > First select the recording to be ended by selecting the channel on which the recording is running as described under section 6.2 of the quick start manual. Pressing the Stop button generates a query as to whether the recording should be >...
  • Page 37 You can start to playback a recording by highlighting it and then confirming with OK. > In doing so also be absolutely sure to observe section 10.9 in the instruction manual. The broadcast information can be displayed and hidden by pressing the Info button repeatedly.

  • Page 38: Jogshuttle Function

    During playback press the Fast forward or Rewind button. The message uu or > tt appears in the aforementioned small infobox. The film is now played back at 4x speed, in the chosen direction. If you press the Fast forward or Fast rewind button again, the speed will increase >...
  • Page 42 2235543951001...
