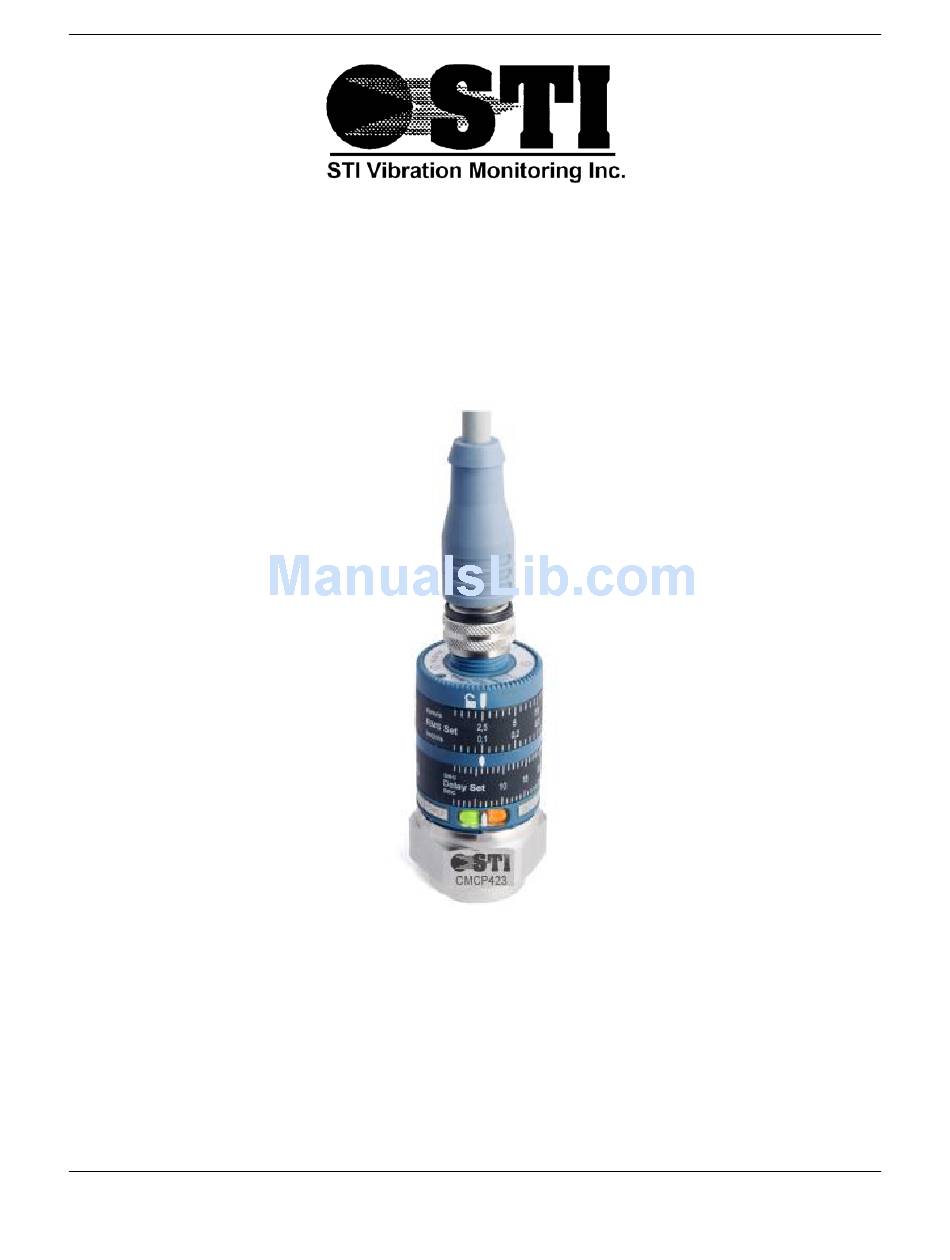

- Page 1 CMCP423VTA USER GUIDE CMCP423VTA Compact Vibration Switch Manual Rev. 1.0...
-
Page 2: Table Of Contents
CMCP423VTA USER GUIDE Contents SAFEY INSTRUCTIONS........................ 3 FUNCTIONS AND FEATURES ..................... 3 INSTALLATION ..........................3 ELECTRICAL CONNECTION ..................... 4 SETTINGS ............................4 MEASUREMENT RANGE ......................4 SWITCHING OUTPUT BEHAVIOUR ..................5 OPERATING AND DISPLAY ELEMENTS ................. 6 MAINTENANCE, REPAIR AND DISPOSAL ................7 TECHNICAL PERFORMANCE .................... -
Page 3: Safey Instructions
CMCP423VTA USER GUIDE An instruction is indicated by "►": Example: ► Check whether the unit operates correctly. Important note Non-compliance can result in malfunctions or interference Information Supplementary note SAFEY INSTRUCTIONS • Please read the product description prior to set-up of the unit Ensure that the product is suitable for your application without any restrictions •... -
Page 4: Electrical Connection
CMCP423VTA USER GUIDE ELECTRICAL CONNECTION The unit must be connected by a qualified electrician. The national and international regulations for the installation of electrical equipment must be adhered to. SETTINGS RMS Set Effective value of the switching threshold, defining the limit value of the vibration velocity... -
Page 5: Switching Output Behaviour
CMCP423VTA USER GUIDE SWITCHING OUTPUT BEHAVIOUR 1: Time delay after the switching threshold has been exceeded 2: Time delay after the switching threshold has been exceeded 3: Switch-off 4: Switching threshold 5: Delay = vibration velocity t = time Implementation of the time delays... -
Page 6: Operating And Display Elements
CMCP423VTA USER GUIDE OPERATING AND DISPLAY ELEMENTS 1) locking ring 2) setting rings (manually adjustable after unlocking) 3) LED green: voltage supply 4) M8 process connection 5) LED yellow: lights when switching threshold and time delay areexceeded 6) setting marks... -
Page 7: Maintenance, Repair And Disposal
CMCP423VTA USER GUIDE MAINTENANCE, REPAIR AND DISPOSAL The operation of the unit is maintenance-free. It is not possible to repair the unit. After use dispose of the unit in an environmentally friendly way in accordance with the applicable national regulations. - Page 8 Connection Oetais of Cable Assembly Brown core Vo!hlte ()()(0 Outs:ide 1/1,ew Saeen PinM12 Conneictor Blue Core ckCore Freeend F"RMtCW:.d QO!IHSIII.-IS oore,,\llilln ro, 'MIiie t,"\11 HS,100, HS,102, HS•l20,HS-4l0 iNl'IU- 81W-n, wtr1, &lllw:kU$c,,:Ul')r HS,100T,H!l-411 & H!l-i2S WI\Q-i, 810r,t1, • t1n..a11• &1:1111et0011t11foolld to,- Connecter P66 onl y when...
