- Page 1 WIC-5000 User Guide WIC-5000 INSPECTION CAMERA MULTI-PURPOSE...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ............3 Feature Descriptions ..........4 Installation .............. 5 Operation ............6 - 7 FCC Information ............ 8 Troubleshooting ............ 9 Warranty Information ........10 - 13 Specifications ............14... -
Page 3: Introduction
If you have any question concerning the operation of this Whistler product please call: Customer Service 1-800-531-0004 Monday - Friday • 8:00 am - 5:00 pm CT or visit our website www.whistlergroup.com... -
Page 4: Feature Descriptions

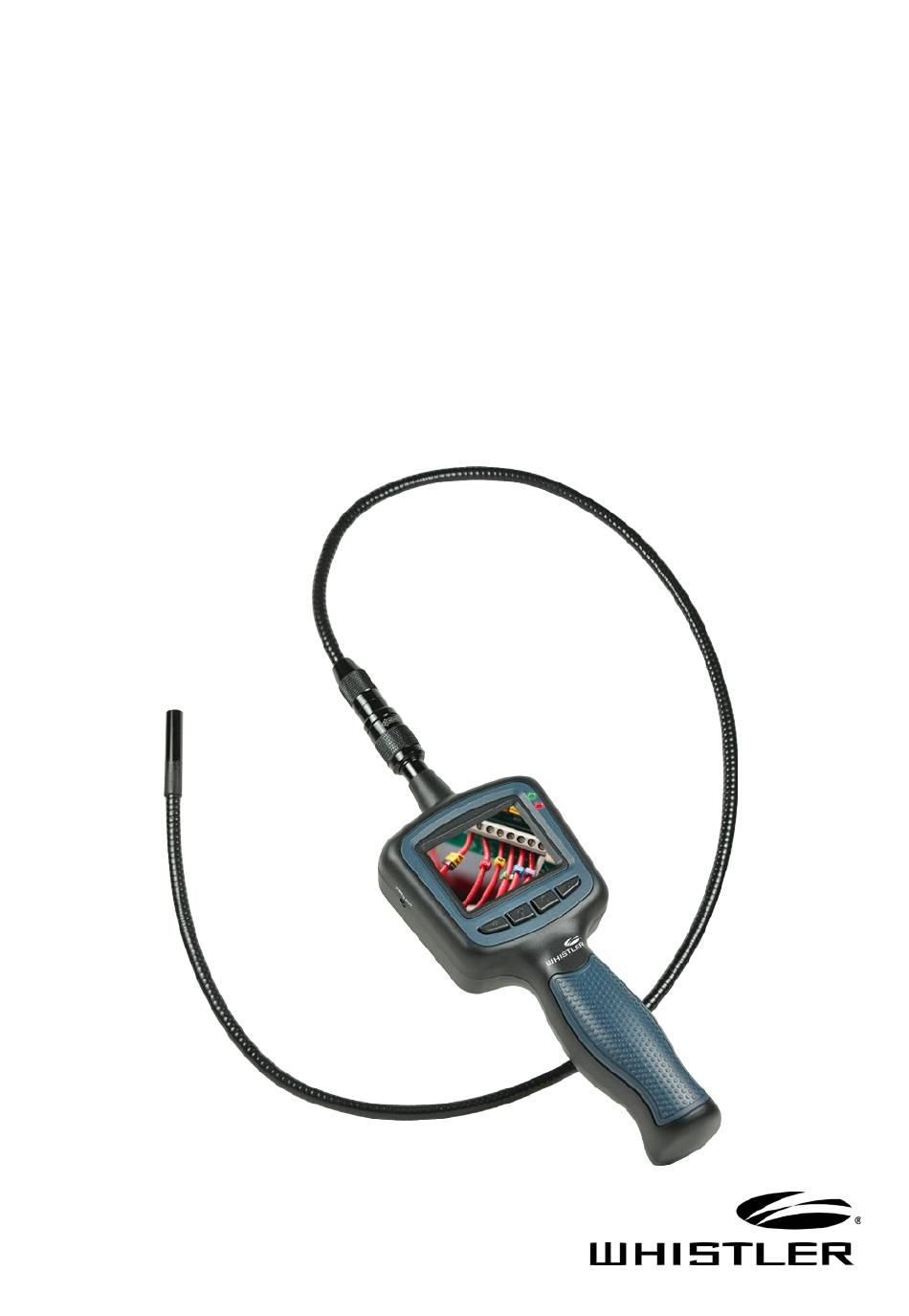

FEATURES DESCRIPTIONS Flexible Tube 9mm Camera Power ON Indicator Low Battery Indicator Power ON/OFF Control Color LCD Monitor Image Rotate Video Out Control Port LED Brightness Control Contrast Control Battery Compartment Handle Magnet Hook Mirror Accessory Accessory Accessory Clip 2.4” LCD Clip Clip 9mm Waterproof... -
Page 5: Installation
INSTALLATION Installation Install Batteries 1. Remove the cover. 2. Insert four (4) new AA batteries into the appropriate slots. Proper battery orientation is indicated on the battery compartment. 3. Replace battery cover. Install the Camera with Flexible Tube When connecting the camera tube to the handheld unit, make sure that the keyed ends are properly aligned. -
Page 6: Operation
OPERATION Operation 1. Press the power switch to turn the camera on (refer to Fig-1). The power indicator will illuminate and the LCD will become viewable. 2. If the image on the LCD is unclear, try adjusting either the brightness, contrast or mirror controls on the monitor. 3. - Page 7 OPERATION Fig 4 Fig 3 TIP: The flexible tube can be bent to accommodate exploration in a variety of locations. IMPORTANT: Do not immerse the monitor in water. Store in a dry place. Such measures reduce the risk of electric shock and damage.
-
Page 8: Fcc Information
(1) this device may not cause harmful interference, (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT: FCC requirements state that changes or modifications not expressly approved by Whistler could void the user’s authority to operate the equipment. -
Page 9: Troubleshooting
TROUBLESHOOTING Why won’t the monitor turn on? • Make sure that the monitor has been charged at least overnight before first use. Press the reset button on the unit. Message on monitor says to “See User Guide for Troubleshooting“. • Make sure that the handheld unit is turned on and that the camera tube is properly attached to the handheld unit. -
Page 10: Warranty Information
All express or implied warranties for this product are limited to the above time. Whistler is not liable for damages arising from the use, misuse, or operation of this product. NOTE: Units that cannot be repaired will be replaced with the same or similar model. - Page 11 WARRANTY INFORMATION Due to the specialized equipment necessary for testing, there are no authorized service stations for Whistler products other than Whistler. When returning a unit for service, please follow these instructions: Ship the unit in the original carton or in a suitable sturdy equivalent, fully insured, with return receipt requested to: Whistler Repair Dept.
- Page 12 The minimum out-of-warranty service fee for your Whistler WIC-5000 is $35.00 (U.S.) If you require out-of-warranty service, please return your unit as outlined in the section “Service Under Warranty” along with a certified check or money order in the amount stated above.
- Page 13 WARRANTY INFORMATION In the event repairs cannot be covered by the minimum service fee, you will be contacted by a Whistler technical service specialist who will outline options available to you. If you elect not to have your unit repaired, it will be returned to you along with your certified check or money order.
-
Page 14: Specifications
SPECIFICATIONS Imaging Sensor CMOS Total Pixels 640 x 480 (NTSC) Horizontal Viewing Angle 36 Degrees Minimum Illumination 0 Lux Night Vision Range 0.5m/1.64ft Power Supply 4 x AA batteries Tube Diameter Waterproof Capacity IP67 (for lens/tube only) LCD Screen Type 2.36”TFT-LCD Effective Pixels 480 x 234... - Page 16 CORPORATE HEADQUARTERS 1716 SW Commerce Dr. Ste. 8 Bentonville, AR 72712 Toll Free (800) 531-0004 TEL (479) 273-6012 www.whistlergroup.com CUSTOMER RETURN CENTER 1412 South 1st St. Rogers, AR 72756 Email: info@whistlergroup.com 03D17 © 2017 The Whistler Group, Inc.
