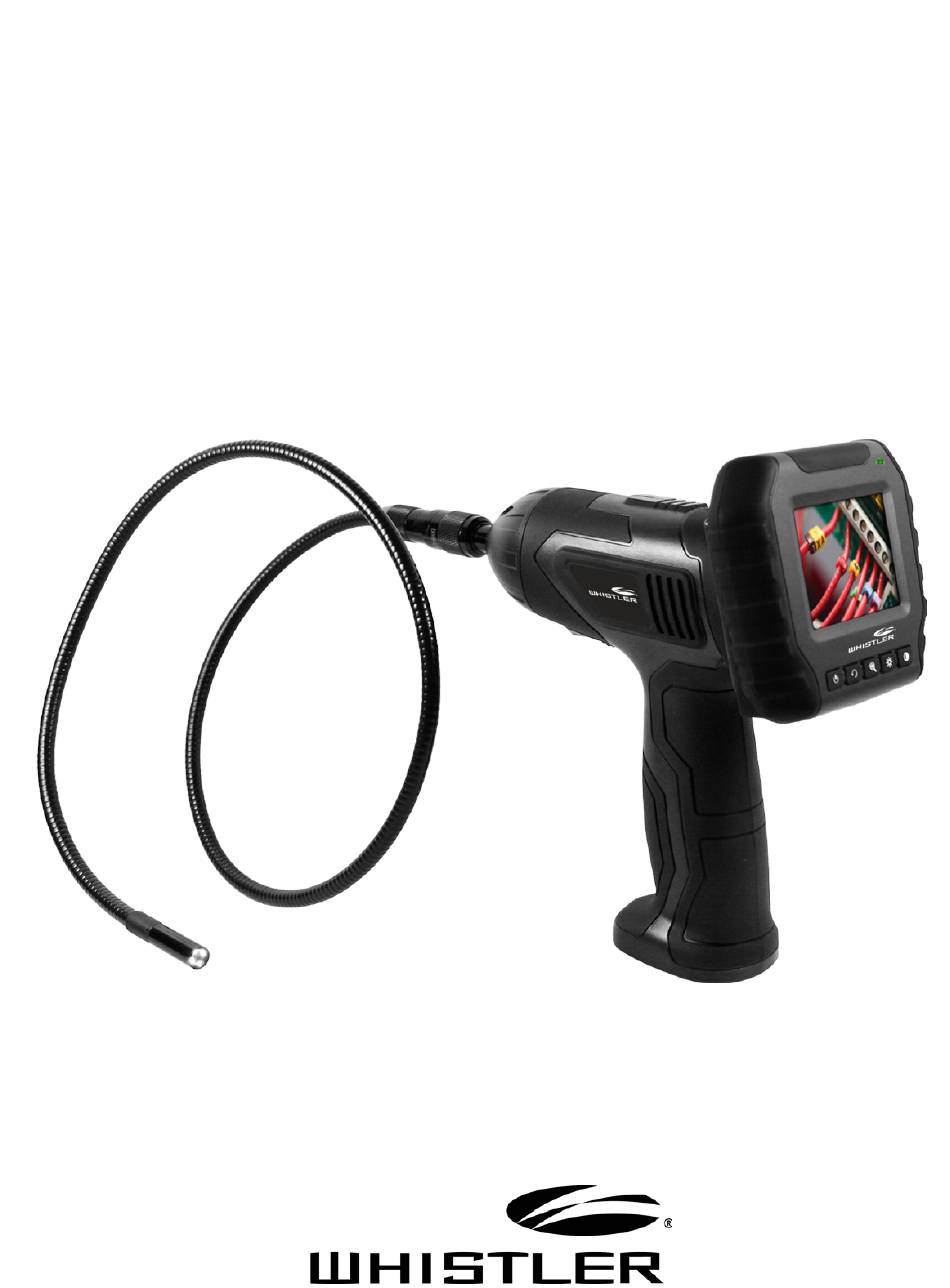

- Page 1 OWNER’S MANUAL WIC2750 Wireless Inspection Camera With Color LCD Monitor...
-
Page 2: Table Of Contents
If you have any question concerning the operation of this Whistler product please call: Customer Service... -
Page 3: Packing List
Please record the serial numbers (located on the back on the monitor and bottom of the handheld unit) in the space provided in the warranty section of this manual. Enjoy your Whistler Inspection Camera. Sincerely, The Whistler Group, Inc. Packing List... -
Page 4: Component / Controls
FEATURE DESCRIPTION Camera Unit Power Indicator 3.3 ft. Camera Tube Signal Output Power ON / OFF LED Brightness Control 9mm Camera Lens with LEDS Monitor Power Indicator 2.7in. LCD Display Contrast Brightness Image Power ON / OFF Zoom Rotation... -
Page 5: Installation
INSTALLATION Installing the Camera Flexible Tube When connecting the camera tube to the handheld unit, make sure that the keyed ends are properly aligned. Once they are lined up, finger tighten the knob to hold the connector in place. Keyed end plugs Finger tighten the into socket knurled knob... - Page 6 INSTALLATION Install Monitor for Wired Use This product also supports wired use by connecting the monitor to the camera. Connect AC Adapter Connect the adapter to the monitor and then plug the adapter into a wall outlet. The power indicators on the handheld unit and the monitor will light red, which indicates the monitor and the handheld unit are charging at the same time and they will turn off after fully charged.
-
Page 7: Operation
OPERATION Operation Rotate the ON/OFF switch to turn on the camera. The power indicator on top of the handheld unit will illuminate. The switch then acts as a dimmer of the LED’s, that surrounds the camera and provide high quality lighting. Press and hold on the Power ON/OFF button on monitor for 2 seconds, the power indicator will be green and the picture will display on LCD display. - Page 8 OPERATION To orientate the images displayed on LCD display, press the button. Image orientation as below: Press the button to digital zoom the image. Zoom capacity of 1.5x, 2x and 3x. Gently guide the tube into the desired location. Slight adjustments can be made while maneuvering the head in a forward direction.
-
Page 9: Caution
(2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT: FCC requirements state that changes or modifications not expressly approved by Whistler could void the user’s authority to operate the equipment. FCC ID: TW5GB8863... -
Page 10: Troubleshooting
TROUBLESHOOTING Troubleshooting Why won’t the monitor turn on? • Make sure that the monitor has been charged at least overnight before first use. Press the reset button on the unit. Message on monitor says to “See Manual for Troubleshooting“. • Make sure that the handheld unit is turned on and that the camera tube is properly attached to the handheld unit. -
Page 11: Specifications
SPECIFICATIONS WIC2750... -
Page 12: Warranty
All express or implied warranties for this product are limited to one (1) year. Whistler is not liable for damages arising from the use, misuse, or operation of this product including but not limited... - Page 13 551 N. 13th St. Rogers, AR. 72756 Please allow 3 weeks turnaround time. IMPORTANT: Whistler will not assume responsibility for loss or damage incurred in shipping. Therefore, please ship your unit insured with return receipt requested. CODs will not be accepted! 2.
- Page 14 WARRANTY The minimum out of warranty service fee for your Whistler WIC2750 is $75.00 (U.S.). If you require out of warranty service, please return your unit as outlined in the section “Service Under Warranty” along with a cashier’s check or money order in the amount of $75.00. Payment may also be made by MasterCard, VISA or American Express.
