Whistler WIC-2409C User Manual

Wireless inspection camera with color lcd monitor
Hide thumbs Also See for WIC-2409C:

Advertisement

Quick Links

Download this manual

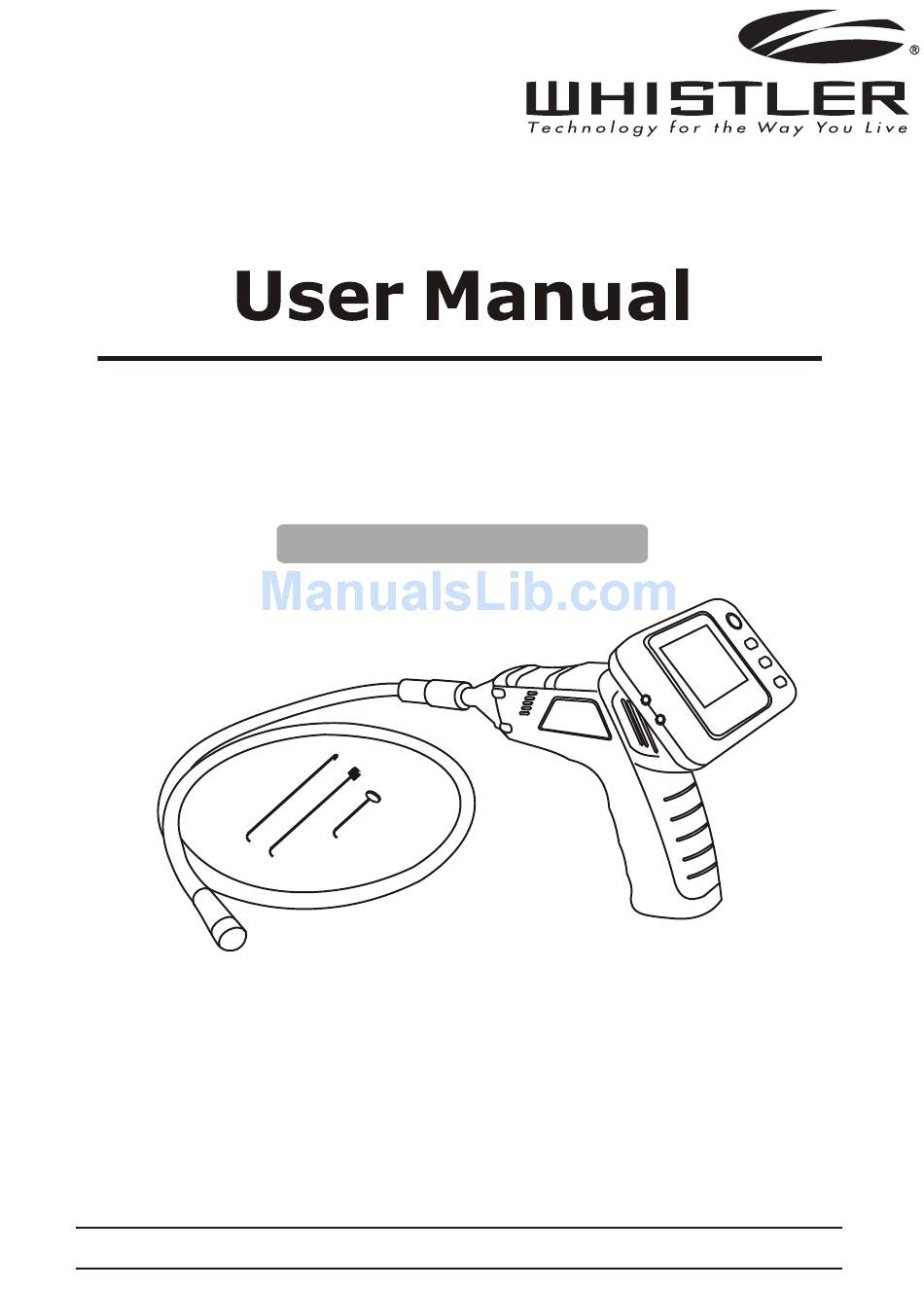

Wireless Inspection Camera
with Color LCD Monitor
The Whistler Group Corporate Headquarters
3604 NW Frontage Rd. • Bentonville, AR 72712
Tel 479.273.6012 • Fax 479.273.2927
Please read this User Manual carefully before using the product!
Model No.: WIC-2409C
www.whistlergroup.com
Version No.: 1.0
Customer Return Center
551 N. 13th St. • Rogers, AR 72756
Customer Service Tel 800.531.0004

Advertisement

loading
Need help?

Need help?

Do you have a question about the WIC-2409C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Whistler WIC-2409C

Summary of Contents for Whistler WIC-2409C

  • Page 1 Wireless Inspection Camera with Color LCD Monitor Model No.: WIC-2409C The Whistler Group Corporate Headquarters 3604 NW Frontage Rd. • Bentonville, AR 72712 Tel 479.273.6012 • Fax 479.273.2927 Please read this User Manual carefully before using the product! Customer Return Center 551 N.
  • Page 2 WELCOME PACKING LIST COMPONENT / CONTROLS INSTALLATION MONITOR POWER CONNECTION GENERAL SAFETY INFORMATION OPERATION SPECIFICATIONS CAUTION WARRANTY ACCESSORIES FCC INFORMATION Back Cover...
  • Page 3 It can be used to look into tight spots and wirelessly transmit real-time video to the monitor. Typical applications include HVAC, automotive inspection, cable routing, etc. If you have questions concerning the operation of this Whistler product, please call: Customer Service 1-800-531-0004 Monday - Friday •...

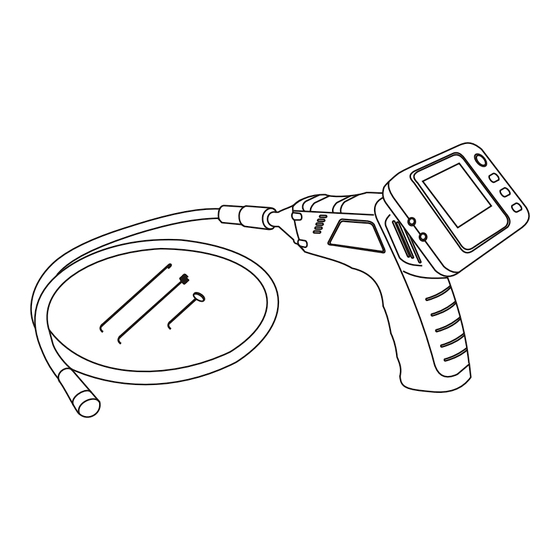

  • Page 4 9mm Camera with Handheld Grip 2.4 in. LCD Monitor 3 ft. tube Mirror Accessory Magnet Accessory Hook Accessory Clip Clip Clip Accessory Collar Adapter Cable Power Adapter - 2 -...

  • Page 5: Components / Controls

    COMPONENTS / CONTROLS - 3 -...
  • Page 6 3. Reinstall battery compartment, cover, and screw. Finger tighten the knurled knob - 4 -...
  • Page 7 The three included accessories (mirror, hook, and magnet) all attach to the camera (image head) in the same manner. Slide the accessory through the plastic holder, aligning it with the notch in holder. Engage the “hook” on the accessory end with hole in the camera head. Slide the plastic holder onto the camera head until it clicks to lock.
  • Page 8 Plug the adapter cable into the power socket on the monitor, plug the other end of the adapter cable into the end of the power adapter. Plug the power adapter into a 110v AC outlet. The built-in Li-battery will charge after the adapter is plugged in. The red indicator light will illuminate during charging and will turn off after charging is complete.
  • Page 9 Do not immerse the grip and monitor in water. Store in a dry place. Such measures reduce the risk of electric shock and damage. The imager head and cable are water resistant when the unit is fully assembled, but the grip and monitor are not. Rotate the ON/OFF switch to turn on the camera.
  • Page 10 Slide the ON/OFF switch to the ON position. The power indicator will illuminate green and a picture will appear on the monitor when the handheld unit is turned on. Adjust the brightness, contrast, and orientation. Adjust the camera LED intensity for a better image. Gently guide the tube into the desired location.
  • Page 11 640 x 480 (NTSC) 8V-36VDC 490mA - 9-...
  • Page 12 • Do not expose the monitor or grip to dripping or splashing liquids. • Turn off the camera and monitor when not is use. • Use only the AC adaptor and cable supplied with the unit. • Remove the batteries when cleaning the unit. •...

  • Page 13: Warranty Information

    There are no express warranties covering this product other than those set forth in this warranty. All express or implied warranties for this product are limited to the above time. Whistler is not liable for damages arising from the use, misuse, or operation of this product. During the warranty period, defective units will be repaired without charge to the purchaser when returned with a dated store receipt to the address below.
  • Page 14 ACCESSORIES Call 1-800-531-0004 or visit www.whistlergroup.com for available accessories. ORDER# WIC-100P DESCRIPTION Accessory Pack includes hard case, 3 ft. extension shaft, and magnetic swivel mount - 1 2 - PRICE $99.95...
  • Page 15 FCC ID: TW5GB8802-GB8803 Note: Changes or modifications not expressly approved by Whistler could void the user’s authority to operate the equipment.
