Summary of Contents for Whistler WIC-5000

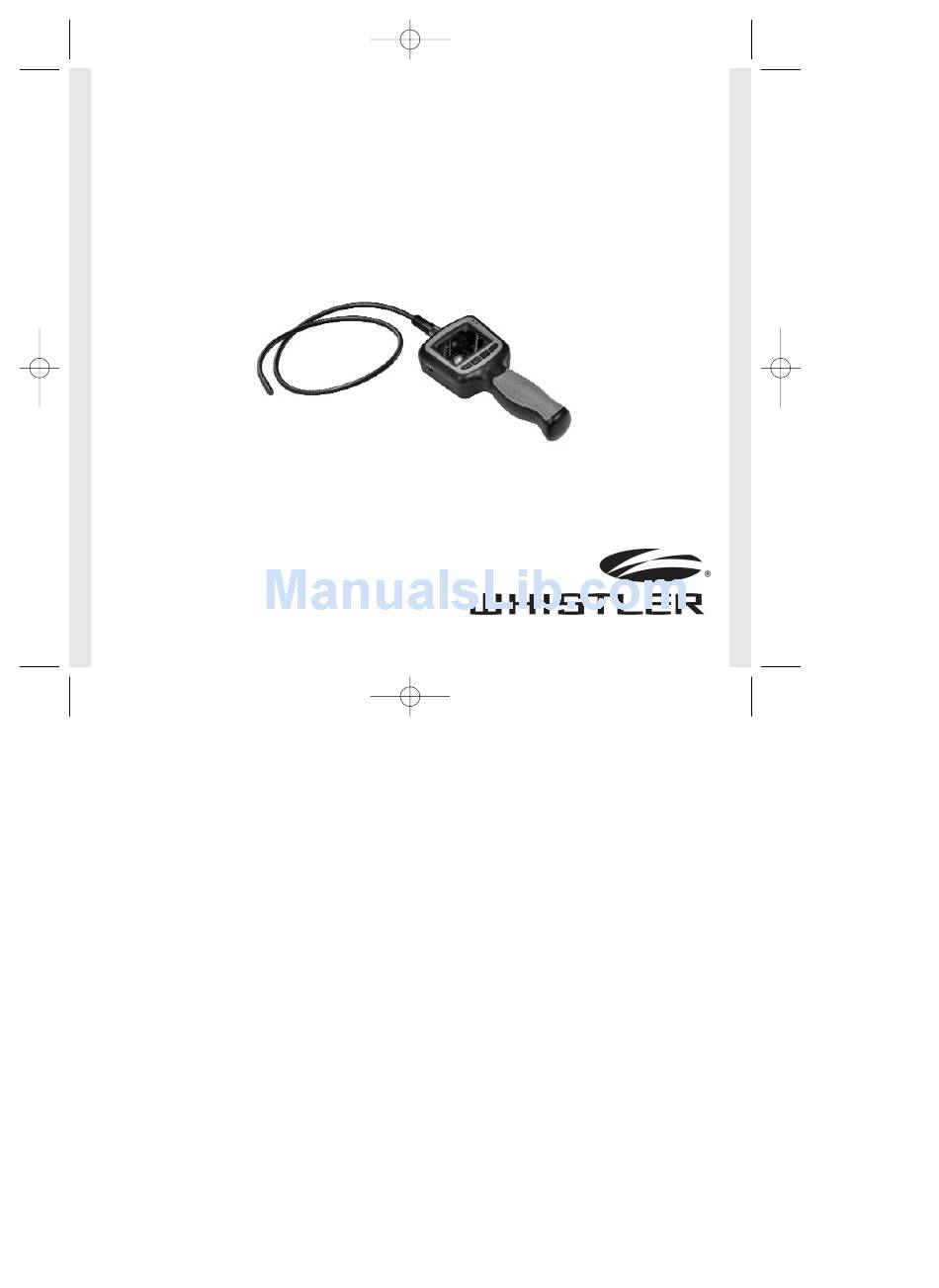

- Page 1 WIC-5000man.qxp 11/27/2012 2:48 PM Page 1 WIC-5000 Inspection Camera Owner’s Manual The Whistler Group Headquarters 3604 NW Frontage Rd. Bentonville, AR 72712 www.whistlergroup.com...
-
Page 2: Packing List

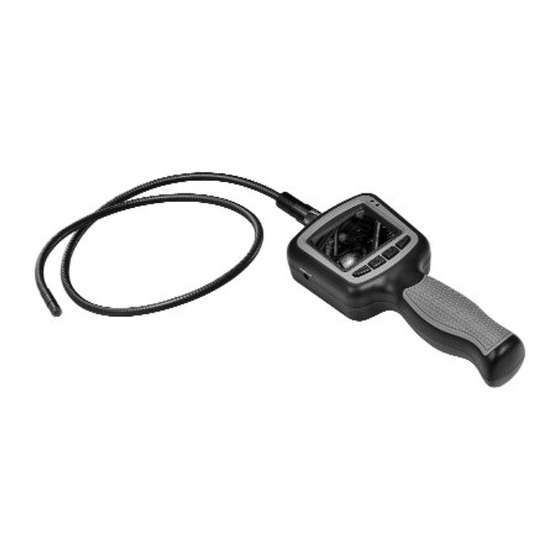

WIC-5000man.qxp 11/27/2012 2:48 PM Page 2 Welcome Congratulations on your purchase of our inspection video camera with color LCD monitor with video out capabilities. Please read the user manual carefully before using this product. This product is designed as a remote inspection device, appropriate for use in surveying pipes or other hard-to-reach places, equipment or furnishing installation, car repair, etc. -
Page 3: Installation
WIC-5000man.qxp 11/27/2012 2:48 PM Page 3 Installation Install Batteries 1. Remove the cover. 2. Insert four (4) new AA batteries into the appropriate slots. Proper battery orientation is indicated on the battery compartment. 3. Replace battery cover. Install the Camera with Flexible Tube When connecting the camera tube to the Keyed end plugs Finger tighten... -
Page 4: Operation
WIC-5000man.qxp 11/27/2012 2:48 PM Page 4 Operation 1. Press the power switch to turn the camera on (refer to Fig-1). The power indicator will illuminate and the LCD will become viewable. 2. If the image on the LCD is unclear, try adjusting either the brightness, contrast or mirror controls on the monitor. -
Page 5: Video Out
WIC-5000man.qxp 11/27/2012 2:48 PM Page 5 Video Out Insert the video cable into the Video Out jack on the side of the unit. Insert the other end of the video cable to a video in on a TV or other video monitor system. The unit will provide high quality video to an external monitor. -
Page 6: Fcc Information
WIC-5000man.qxp 11/27/2012 2:48 PM Page 6 FCC Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference; (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 7: Troubleshooting
WIC-5000man.qxp 11/27/2012 2:48 PM Page 7 Troubleshooting The power light comes on but nothing shows on the screen? • This could be due to weak batteries in the handheld. Replace batteries. • Is the camera tube fully inserted to the handheld unit? When connecting the camera tube to the handheld unit, make sure the keyed ends are properly aligned. -
Page 8: Consumer Warranty
Consumer Warranty This Whistler Inspection Camera is warranted to the original purchaser for a period of one year from the date of original purchase against all defects in materials and workmanship. This limited warranty is void if the unit is abused, modified, installed improperly, or if the housing and/or serial number have been removed. - Page 9 • The unit has been abused, modified, installed improperly, or had its housing removed. The minimum out of warranty service fee for your Whistler Inspection Camera is $35.00 (U.S.). If you require out of warranty service, please return your unit as outlined in Step 1 along with a certified check or money order for $35.00.
