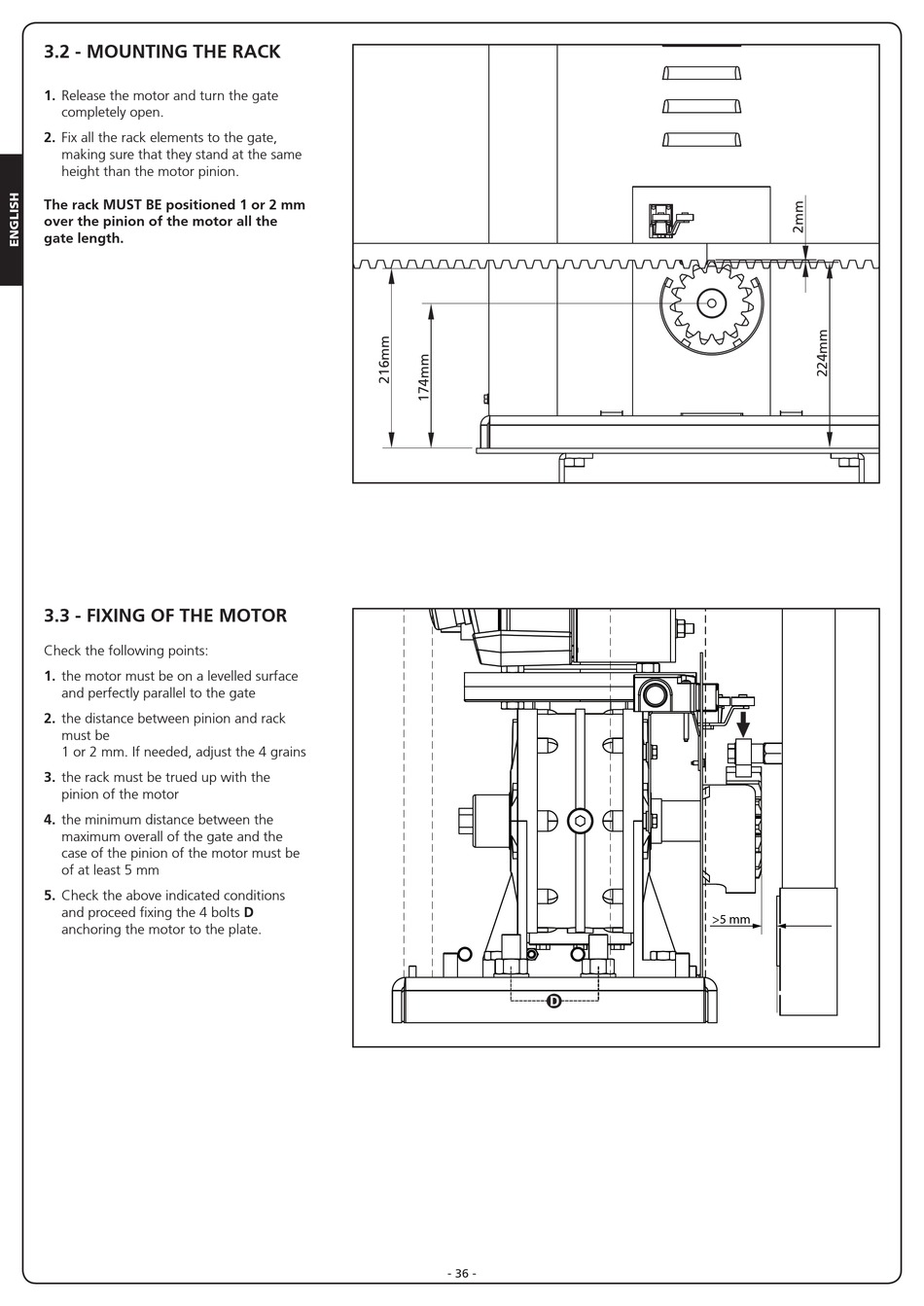

3.2 - MOUNTING THE RACK

1. Release the motor and turn the gate
completely open.
2. Fix all the rack elements to the gate,
making sure that they stand at the same
height than the motor pinion.
The rack MUST BE positioned 1 or 2 mm
over the pinion of the motor all the
gate length.

3.3 - FIXING OF THE MOTOR

Check the following points:
1. the motor must be on a levelled surface
and perfectly parallel to the gate
2. the distance between pinion and rack
must be
1 or 2 mm. If needed, adjust the 4 grains
3. the rack must be trued up with the
pinion of the motor
4. the minimum distance between the
maximum overall of the gate and the
case of the pinion of the motor must be
of at least 5 mm
5. Check the above indicated conditions
and proceed fixing the 4 bolts D
anchoring the motor to the plate.
D
- 36 -
>5 mm
