V2 ALFARISS Manual

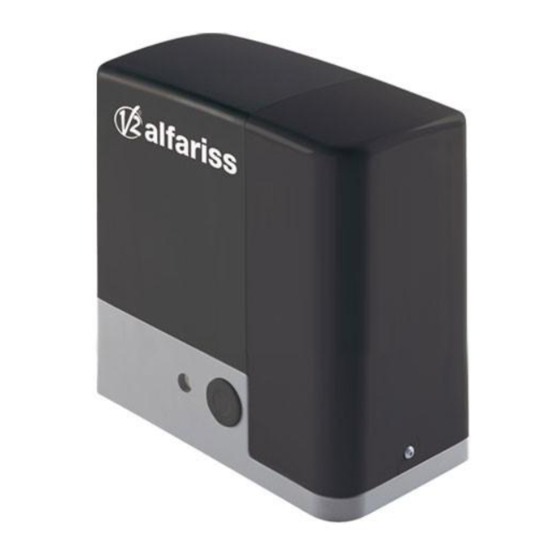

24v electro-mechanical irreversible rack actuator for sliding gates up to 300 kg
Hide thumbs
Table of Contents

Advertisement

Quick Links

ATTUATORE ELETTROMECCANICO 24V IRREVERSIBILE A
I
CREMAGLIERA PER CANCELLI SCORREVOLI FINO A 300 KG
DI PESO
24V ELECTRO-MECHANICAL IRREVERSIBLE RACK ACTUATOR
GB
FOR SLIDING GATES UP TO 300 KG
OPERATEUR ELECTROMECANIQUE 24V IRREVERSIBLE A
F
CREMAILLERE POUR PORTAILS COULISSANTS JUSQU'A
300 KG DE POIDS
MOTOR ELECTROMECANICO 24V IRREVERSIBLES A
E
CREMALLERA PARA PUERTAS CORREDERAS HASTA
300 KG DE PESO
V2 S.p.A.
Corso Principi di Piemonte, 65/67
12035 RACCONIGI (CN) ITALY
tel. +44 (0)1482 860950 -
info@remotecontrolgates.co.uk -
www.remotecontrolgates.co.uk
ALFARISS
IL n. 350-1
EDIZ. 30/04/2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALFARISS and is the answer not in the manual?

Questions and answers

D.Stamopoulos
June 11, 2025

In my alfariss V2 I obtain an error 7. How can I perform the self-learning procedure for the encoder? Thanks

0

Related Manuals for V2 ALFARISS

Summary of Contents for V2 ALFARISS

  • Page 1 V2 S.p.A. Corso Principi di Piemonte, 65/67 12035 RACCONIGI (CN) ITALY tel. +44 (0)1482 860950 - IL n. 350-1 EDIZ. 30/04/2013 info@remotecontrolgates.co.uk - www.remotecontrolgates.co.uk ALFARISS ATTUATORE ELETTROMECCANICO 24V IRREVERSIBILE A CREMAGLIERA PER CANCELLI SCORREVOLI FINO A 300 KG DI PESO...

  • Page 3: Table Of Contents

    INDEX 1 - GENERAL SAFETY INFORMATION ............................28 1.1 - PRELIMINARY CHECKS and IDENTIFICATION OF THE TYPE TO BE USED ..............28 1.2 - TECHNICAL ASSISTANCE SERVICE ..........................29 1.3 - EC DECLARATION OF INCORPORATION FOR PARTLY COMPLETED MACHINERY ............29 2 - TECHNICAL DATA................................30 3 - INSTALLATION OF THE MOTOR ............................31 3.1 - POSITIONING OF THE MOTOR ..........................31 3.2 - MOUNTING THE RACK............................32...

  • Page 4: General Safety Information

    • In the event of interventions on automatic or differential breakers or fuses, it is essential that faults be identified and resolved prior to resetting. In the case of faults that cannot be resolved using the information to be found in this manual, consult the V2 customer assistance service.

  • Page 5: Technical Assistance Service

    1.3 - EC DECLARATION OF INCORPORATION FOR PARTLY COMPLETED MACHINERY (DIRECTIVE 2006/42/EC, ANNEX II-B) The manufacturer V2 S.p.A., headquarters in Corso Principi di Piemonte 65, 12035, Racconigi (CN), Italy Under its sole responsibility hereby declares that: the partly completed machinery model(s):...

  • Page 6: Technical Data

    2 - TECHNICAL DATA Gate maximum weight Power supply V / Hz 230 / 50 Maximum power Idling current Full load current Gate maximum speed 0,18 Maximum thrust Duty cycle Pinion M4-Z16 Working temperature °C -20 ÷ +55 Motor weight Protection degree Maximum load on 24 Vac accessories Protection fuses...

  • Page 7: Installation Of The Motor

    3 - INSTALLATION OF THE MOTOR 3.1 - POSITIONING OF THE MOTOR To fix ALFARISS, follow the instructions below: 1. use the measurements indicated in the drawing for the 5. Wait for the complete setting of the concrete foundations 6. Unscrew the bolts fixing the base to the clamps and put the 2.

  • Page 8: Mounting The Rack

    3.2 - MOUNTING THE RACK 3.3 - FIXING OF THE MOTOR Release the motor and turn the gate completely open. Check the following points: Fix all the rack elements to the gate, making sure that they stand 1. the motor must be on a levelled surface and perfectly parallel at the same height than the motor pinion.

  • Page 9: Motor Overriding System

    2. Turn the key K anticlockwise closing the hatch of the lock, then draw it out 3. Close the lock with the hatch J 3.6 - INSTALLATION LAYOUT ALFARISS actuator Power supply cable 3 x 1,5 mm (T100°C) Rack Flashing light with built-in antenna...

  • Page 10: Control Unit

    4 - CONTROL UNIT 4.2 - ACTIVATION INPUTS PD13 control unit is equipped with two activation inputs (START and START P.), whose operation depends on the PD13 is provided with a display that, not only makes Strt programmed operation modes (see item of programming programming simple, but also allows a continuous monitoring of menu):...

  • Page 11: Stop

    4.3 - STOP SAFETY RIBBONS - INSTRUCTIONS For a better safety, you can fit a stop switch that will cause the immediate gate stop when activated. This switch must have a • If several edges, with normally closed contacts, are used, the normally close contact (NC) that will get open in case of outputs should be connected in series.

  • Page 12: External Aerial

    CAUTION: Pay attention to the polarity of the connected unit PD13 allows the connection to V2 optional modules. device if necessary. Refer to V2 catalogue or to the technical sheets to see which optional modules with ADI interface are available for this control 4.8 - COURTESY LIGHTS unit.

  • Page 13: Electrical Connection Summary

    4.13 - ELECTRICAL CONNECTION SUMMARY Photocell 1 (xterior). N.C. contact B1 - B2 230Vac courtesy or flashing lights Photocell 2 (interior). N.C. contact +24Vdc supply for photocells and other accessories Type 1 edges (fixed). N.C. contact Accessory power common (-) Type 2 edges (mobile).

  • Page 14: Control Panel

    5 - CONTROL PANEL 5.2 - USE OF THE KEYS FOR PROGRAMMING The control unit functions and times are programmed by means 5.1 - DISPLAY of a special configuration menu, which can be accessed and When power is on, the control unit checks that display correctly explored by using the 3 keys, , i and OK, located on the side of 8.8.8.8 operates by switching on all segments for 1.5 sec.

  • Page 15: Accessing The Control Unit Settings

    6 - ACCESSING THE CONTROL 7 - LOADING THE DEFAULT UNIT SETTINGS PARAMETERS ( 1. Press and hold the OK key until the display shows the menu If necessary, it is possible to restore all parameters to their desired standard or default values (see the final summary table). 2.

  • Page 16: Installation Menù (Set)

    8 - INSTALLATION MENÙ ( This menu allows you to perform the movements of the gate needed during installation. The automatic learning procedure enables to save run limits based on data collected by the encoder. The manual handling procedure allows to control the gate in hold to run mode in special cases such as during installation/maintenance or a malfunction of the photocells or edges.

  • Page 17: Emergency Man Present Operation

    Example 9 - EMERGENCY MAN PRESENT OPERATION This operational mode can be used to move the gate in Man Present mode in particular cases, such as installation/maintenance or in the case of malfunctioning of photocell, edge, limit switches or encoder. To start the “emergency”...

  • Page 18: Reading Of Cycle Counter

    11 - READING OF CYCLE Area 3 is the setup of this latter counter; if you press once i key, the current counter value will be rounded up or down to COUNTER ( thousands, any following pressure will have the setup be increased or decreased of 1000 units.

  • Page 19: Programming The Control Unit

    12 - PROGRAMMING THE CONTROL UNIT -PrG The configuration menu consists in a list of configurable items; the display shows the selected item. By pressing i, you will pass to the next item; by pressing , you will return to the previous item. By pressing OK, you can view the current value of selected item and possibly change it.
  • Page 20 DISPLAY DATA FUNCTION DEFAULT MEMO Motor power 30 - 1 00 The displayed value is the percentage of max. motor power P.rAL Power motor during slow-down phase 0 - 70 The value displayed represents the percentage of the maximum motor power P.bAt Maximum motor power during battery operation This menu allows you to activate the motors at their maximum power...
  • Page 21 DISPLAY DATA FUNCTION DEFAULT MEMO Pedestrian Start during the partial opening phase This menu allows fixing the control unit conduct in case it receives a Pedestrian Start command during the partial opening phase. PAUS SP.AP WARNING: a Start command in any phase of partial opening will cause the total opening;...
  • Page 22 DISPLAY DATA FUNCTION DEFAULT MEMO Setting low voltage exit lights SPiA FLSh This menu makes to possible to set the flashing exit function FLSh Flasher operation (fixed frequency) Indicator light operation: Indicates the status of the gate in real-time. The type of blinking indicates the four possible conditions: - GATE STOPPED: Light off W.L.
  • Page 23 DISPLAY DATA FUNCTION DEFAULT MEMO Safety ribbon 1 input CoS1 This menu allows enabling the input for type 1 safety ribbon, that is to say, fixed ribbons Input disabled (ignored by the control unit) Input enabled during the opening and disabled during the closure APCh Input enabled in opening and closure Safety ribbon 2 input...

  • Page 24: Operation Defects

    StAn enabled in standard mode ( menu set to ) and Before sending the control unit to V2 S.p.A. for repair, be sure i.Adi the ADI interface must be disabled ( menu set to that motors have been properly connected.

  • Page 25: Testing And Start-Up

    V2 recommends the application of the following technical The recommended interval between each maintenance operation standards: is six months, the checks involved should at least relate to: •...
  • Page 27 Are you satisfied? Should you wish to add another automation device to your home, contact the same installer and ask for a V2 SpA product: we guarantee you the most advanced products on the market and maximum compatibility with existing automation devices.
