V2 city4 Instructions Manual

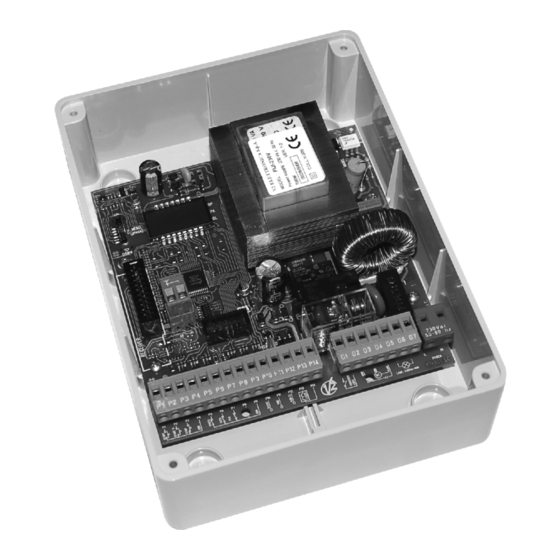

Universal digital control unit for the control of a 230v/120v engine
Hide thumbs
Table of Contents

Advertisement

Quick Links

CENTRALE DIGITALE UNIVERSALE PER IL COMANDO DI
I
UN MOTORE 230V/120V
UNIVERSAL DIGITAL CONTROL UNIT FOR THE CONTROL
GB
OF A 230V/120V ENGINE
CENTRALE DIGITALE UNIVERSELLE POUR LE CONTROLE
F
D'UN MOTEUR A 230V/120V
UNIVERSELLE ZENTRALE EINHEIT ZUM STEUERN
D
EINES 230V/120V - MOTORS
CUADRO DE MANIOBRAS DIGITAL UNIVERSAL PARA UN
E
MOTOR 230V/120V
V2 S.p.A.
Corso Principi di Piemonte, 65/67 - 12035 RACCONIGI (CN) ITALY
tel. +39 01 72 81 24 11
fax +39 01 72 84 050
info@v2home.com
www.v2home.com
City4
IL n.192-A
EDIZ. 16/07/2007
(Pr. 2.0)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the city4 and is the answer not in the manual?

Questions and answers

Related Manuals for V2 city4

Summary of Contents for V2 city4

  • Page 1 V2 S.p.A. Corso Principi di Piemonte, 65/67 - 12035 RACCONIGI (CN) ITALY tel. +39 01 72 81 24 11 fax +39 01 72 84 050 IL n.192-A info@v2home.com www.v2home.com EDIZ. 16/07/2007 City4 (Pr. 2.0) CENTRALE DIGITALE UNIVERSALE PER IL COMANDO DI...
  • Page 2 ISTRUZIONI ..........1 INSTRUCTIONS .

  • Page 3: Table Of Contents

    City4 FUNCTION TABLE ........

  • Page 4: Important Remarks

    The City4 has been designed to realize a product that meets accidental detachment of a conducting wire, dangerous all kind of requirements, with a highly versatile control unit that...

  • Page 5: Installation

    P11 and P12 of the control unit. • Connect power supply cables of photocells receiver between City4 control unit provides for a 230V 40W (120V – 40W for terminals P10 and P11 of the control unit. model City4-120V) blinker equipped with intermittence inside.

  • Page 6: Safety Ribbons

    • Timer mode: it is similar to the standard mode but the gate END OF STROKE stays open (completely or partially) while the contact is City4 control unit supports the two following kinds of end of closed on input; as soon as the contact is open the pause stroke: time count down will start, after which the gate will be •...

  • Page 7: Plug In Receiver

    WARNING: Please read the instructions of each single module to install the optional modules. PLUG IN RECEIVER City4 control unit is suitable for plugging in a Personal Pass MR1 receiver having a high-sensitivity super-heterodyne architecture. WARNING: it is necessary to turn off the control unit power before doing the operations mentioned here below.

  • Page 8: Use Of Down Menu And Up Keys For Programming

    Points being among display digits show the status of Function menu setup programming push-buttons: as soon as a push-button is Function menus allow selecting a function from among a group pressed, its relevant point turns on. of available options. When you enter into a function menu, the current active option will be viewed;...

  • Page 9: Quick Configuration

    This last operation will close the configuration menu and store This paragraph concerns the step-by-step procedure to set all set up parameters. operation parameters of City4 control unit. You can either follow all procedure steps and perform a complete control unit Self-learning procedure: configuration or select and adjust interesting items only.
  • Page 10 Partial opening time (pedestrian access) When the control unit receives a Start Pedestrian command, it will open the gate only, for a shorter time. Max allowed time to be setup is t.AP. Closing time The motor will be operated for the setup time in the closing phase; In case there is an obstacle or the end of stroke operates, the control unit can stop the opening phase before the relevant time expires.
  • Page 11 Backlash time It could be useful to give a closing command to motor, to help the electric lock release. The control unit controls the motor in reduced power in closing direction for the setup time. The backlash precedes the electric lock release. It is possible to reverse the order by setting a lock advance time higher then the backlash one.
  • Page 12 Slowing down time In case this function is enabled, during the last seconds of motion, the control unit will give motor a reduced power command, to avoid a strong impact with the stop end. t.AP is the max. allowed time. WARNING: •...
  • Page 13 Start command during the pause This menu allows fixing the control unit conduct in case it receives a Start command when the gate is open during its pause phase. ChiU the gate starts closing command is ignored Select option ChiU, to set up the “step-by-step” operation logic. Select option ‘no’, to set up the ‘always open’...
  • Page 14 Courtesy lights Thanks to the output COURTESY LIGHT the control unit City4 allows the connection of an electric appliance (e.g. courtesy light or garden lights), controlled automatically or by means of the special transmitter key. t.LUC the relay closes when a start or a pedestrian start control is given and opens after the set time.

  • Page 15: Stop Input

    Stop Input This menu permits to select the functions associated to the command of STOP . The input STOP is not available. ProS The input STOP stops the gate: pressing the command START the gate continues the motion. invE The command STOP stops the gate: at the next START the gate starts moving in the opposite direction.
  • Page 16 WARNING: This function is active in case the ends of stroke have been fitted and enabled and if the START IN OPENING has been disabled. WARNING: any improper use of this function may jeopardize the gate safe use. V2 recommends what follows: • Make use of this function only in case the door passage before the photocells is actually unavoidable.
  • Page 17 Such menu allows setting the max. gate quiescent time from 1 to 8 hours. By setting on 0, this function will be disabled. In case the gate stays quiescent (closed) for a time longer than the set time, City4 will close the gate for 10 seconds, so restoring an effective closing. Anti-skid...

  • Page 18: Reading Of Cycle Counter

    THE INSERTED DATA HAVE BEEN MEMORIZED: THE CONTROL UNIT IS READY TO BE USED. READING OF CYCLE COUNTER City4 control unit counts the completed opening cycles of the gate and, if requested, it shows that service is required after a fixed number of cycles.

  • Page 19: Obstacle Sensor Operation

    MAINS led does not switch on It means that there is no voltage on City4 control unit card. 1. Before acting on the control unit, disconnect through the disconnecting switch on the power line and remove the power supply terminal.

  • Page 20: City4 Function Table

    DEFAULT MEMO DISPLAY DATA DESCRIPTION DATA Ante SCor dEF. It does not load the V2 standard data SCor Predefined programming for a typical sliding gate AntE Predefined programming for a typical two-door gate t.AP 0.0" ÷ 2.0' Gate opening time 22.5"...
  • Page 21 City4 FUNCTION TABLE DEFAULT DEFAULT MEMO DISPLAY DATA DESCRIPTION AntE SCor DATA Strt Operation modes StAn StAn - Start inputs from terminal board are disabled StAn - Standard operation APCH - Separated opening and closing commands PrES - Manned operation...

  • Page 22: Electric Connections Table

    Opening controls for pedestrian access for the Flashing light connection of control devices with N.O. contact G6 - G7 230VAC 40W (City4) / 120VAC 40W (City4-120V) Stop command. N.C. contact Power phase 230VAC / 120VAC Common (-) Neutral 230VAC / 120VAC Safety ribbons.
