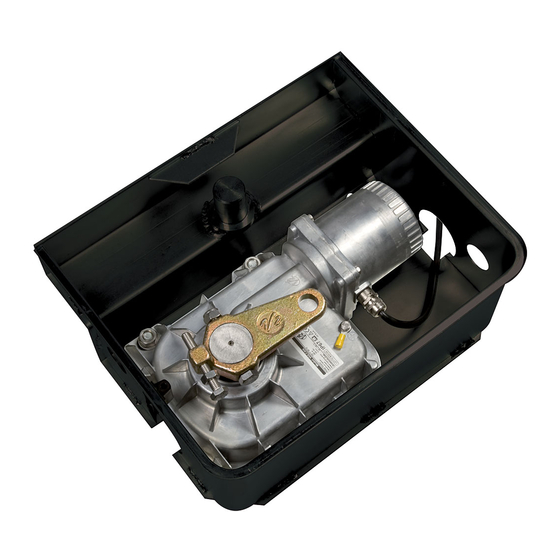

- Page 1 Value moves the world ZIS142 IL 245 EDIZ. 08/05/2017 VULCAN IRREVERSIBLE ELECTROMECHANICAL ACTUATOR (UNDERGROUND INSTALLATION) FOR LEAF GATES...
-
Page 3: Important Remarks
EU DECLARATION OF CONFORMITY AND IMPORTANT REMARKS DECLARATION OF INCORPORATION OF V2 S.p.A. has the right to modify the product without PARTLY COMPLETED MACHINE previous notice; it also declines any responsibility to Declaration in accordance with Directives: 2014/35/UE (LVD); damage or injury to people or things caused by improper 2014/30/UE (EMC);... -
Page 4: Technical Data
TECHNICAL DATA VULCAN-24V VULCAN-120V VULCAN-230V VULCAN-230V-S Max. leaf lenght* m x Kg 2 x 600 2 x 800 2 x 800 2 x 800 2,5 x 500 2,5 x 550 2,5 x 550 2,5 x 550 3 x 400 3 x 400... -
Page 5: Installation Layout
RG174 RG174 PREPARATORY STEPS The new series of actuadors VULCAN, has been devised to serve gates up to 800 Kg with leaf up to 3 meters wide (look at the table technical data). Before proceeding with the installation, please make sure that your gate opens and closes freely, and that: •... - Page 6 POSITIONING THE FOUNDATION BOX AND THE LEVER CONTROL AND BLOCKING SYSTEM > 67 mm 450 mm 450 mm 450 mm 1. Depending on the dimensions, dig a suitably sized foundation ditch (it is recommended to provide adequate drainage in order to avoid water pooling).
- Page 7 INSTALLING THE MOTOR REDUCER 1. Place the motor reducer gear unit inside the foundation box. 2. Fix the motor reducer in place inside the foundation box by tightening the 4 nuts. 3. Mount the motor connecting rod on the motor drive shaft and fix the screw in place using the corresponding self-locking nut.
-
Page 8: Electrical Connections
ELECTRICAL CONNECTIONS VULCAN-230V / VULCAN-120V CONTROL UNIT Motor cable DX motor SX motor YELLOW - GREEN GREY COMMON COMMON BLACK OPENING CLOSING BROWN CLOSING OPENING WARNING: Always connect the earth cable to the mains power earth system. Use the special fastom shown in the figure, and a cable with a minimum cross sectional area of 2.5 mm...
