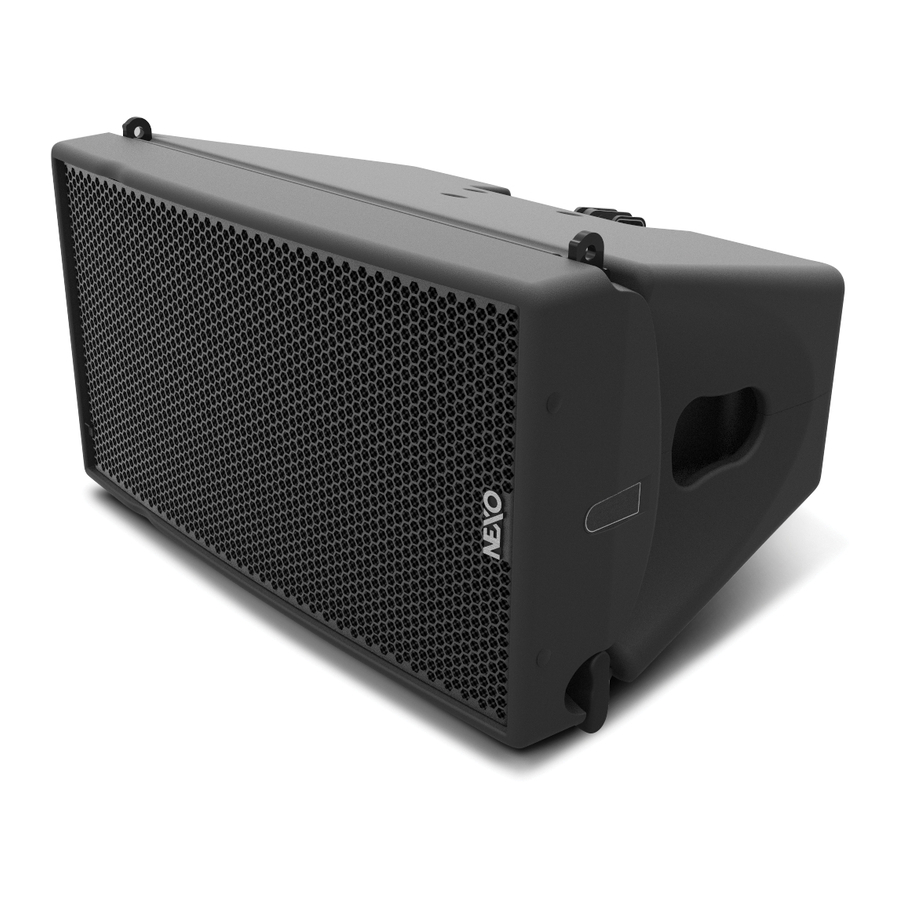

Nexo GEOM10 Series User Manual
  1. Manuals
  2. Brands
  3. Nexo Manuals
  4. Speakers
  5. GEO M10
  6. User manual

Nexo GEOM10 Series User Manual

Hide thumbs Also See for GEOM10 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
DP2752-03a-DI
GEOM1012-I – GEOM1025-I
User Manual
IP54

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GEOM10 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nexo GEOM10 Series

Summary of Contents for Nexo GEOM10 Series

  • Page 1 DP2752-03a-DI GEOM1012-I – GEOM1025-I User Manual IP54...

  • Page 2: Table Of Contents

    ARRAY EQ................................. 13 MAINTENANCE ............................... 14 TECHNICAL SPECIFICATIONS ..........................15 10 USER NOTES ................................16 EU Conformity declaration NEXO SA ZA DU PRE DE LA DAME JEANNE 60128 PLAILLY – France Declare under our sole responsibility that the product Loudspeaker...

  • Page 3: Warnings

    Do not open the speaker, do not try to disassemble it neither to modify it in any way. The system doesn’t include any user-repairable part. If the system seems to be malfunctioning or damaged, stop using it at once and have it repaired by a NEXO qualified technician.

  • Page 4: Geom10 Rigging

    Page 4/16 GEOM10 RIGGING GEOM10 RIGGING Front Positioning 2x GEOM10-I.. Connect both cabinets by inserting the axis through front holes and secure axis with brake nuts. Back Adjust the appropriate inter-angle value with the Linkbar and secure with the provided screws. Screws: 1shouder screw (D8x20), 2 washers (M8), 1 brake nut (M6).

  • Page 5: Geom10 - Accessories

    All GEOM10 accessories are specifically rated in agreement with structural computations. Never use other accessories – including push-pins – when assembling GEOM10 cabinets than the ones provided by NEXO: NEXO will decline responsibility over the entire GEOM10 accessory range if any component is purchased from different supplier.
  • Page 6 GEOM10 – ACCESSORIES Page 6/16 VNT-GSTKM10S – VNT-GSTKM10L VNT-GSTKM10M12S – VNT-GSTKM10M12L VNT-MNSTKM10 - Rated for a maximum of 3 GEOM10 on the top of MSUB15. VNI-LNKM61018 - Adapter MSUB18-I to GEOM10-I - Maximum of 6 GEOM10.
  • Page 7 GEOM10 – ACCESSORIES Page 7/16 GMT-LBUMPM10 - Rated for a maximum of 12 GEOM10. - Usable with GMT-EXBARM10L for a one rigging point. GMT-EXBARM10L GMT-FLGM10 - Pair of flanges for 120°horizontal directivity. - No tools, magnetic clamp.

  • Page 8: Description

    Seal the cabinet with the provided blind plug on the unused cable gland. Amplification: The GEOM10 cabinets MUST be used with a NEXO processor to handle EQ, phase alignment, crossover and excursion/thermal protection for the system loudspeakers. There are two NEXO processor series supporting the GEOM10 cabinet: NXAMP (4-channel) amplified processors and DTD processors (stereo + sub).

  • Page 9: Preset Geom10

    Page 9/16 PRESET GEOM10 Please consult nexo-sa.com for NEXO TD Controllers firmware information. For the GEOM1012, with or without directivity flanges, the following setups are available: o Setup for one stand-alone box, with high-pass at 63, 75, 85, 95 or 120 Hz.
  • Page 10 Page 10/16 PRESET GEOM10 o Possibilities to use 2-3Box setup in stack configuration using MSUB15 in OMNI or CARDIO mode with 1 Back and 2 front and 3 GEOM10 on top of them, application venue up to 15 meters, default cross over 85 Hz but small overlap could have impact if needed, for example (MSUB15 120 Hz and GEOM10 75 Hz).
  • Page 11 PRESET GEOM10 Page 11/16 o For long throw stacking application on floor or on MSUB15, up to 6 boxes used at 63 Hz without Sub and 85 Hz with MSUB15 at 85 Hz. ➢ 7 - 12 Boxes o For very long throw application used with Sub either ground stack or flying, recommended MSUB15 cardioid mode, cross over MSUB15 95 Hz and 12 GEOM10 cross over 75 Hz for maximum impact.
  • Page 12 Page 12/16 PRESET GEOM10 o Ground Stack Sub design is: ➢ GEOM10 MON and MSUB15 MON o Minimum phase setup not compatible with others. o Used for high power stage Monitor, DJ Monitor, Drum Fill, Stack side. o Always use same cross over between GEOM10 and MSUB15, no overlap possible without doing phase adjustment by yourself.

  • Page 13: Array Eq

    ARRAY EQ Page 13/16 ARRAY EQ The ArrayEQ allows to adjust the system frequency response in its lower range (see curves below, with different ArrayEq values): GEOM10 GEOM10 STACK MON...

  • Page 14: Maintenance

    Page 14/16 MAINTENANCE MAINTENANCE Front panel disassembly Remove the front panel (8 screws Tx25) Remove the 4 screws (Tx25) to remove the grille. Tightening torque: 3.5 Nm To remove the 10’’ driver, remove the 4 screws (Tx25). To remove the HF Driver, unscrew the 4 nuts, and remove it from the Angle it to get out the driver.

  • Page 15: Technical Specifications

    TECHNICAL SPECIFICATIONS Page 15/16 TECHNICAL SPECIFICATIONS GEOM10 WITH NEXO ELECTRONICS Model GEOM10 59Hz – 20kHz Frequency range (±6dB) Sensibility (1W / 1m) 100dB SPL Nominal Peak SPL Level (1m) 136dB Peak Operating voltage 30 Vrms (180 Vpeak) 12° for GEOM1012 Vertical Dispersion 25°...

  • Page 16: 10 User Notes

    Page 16/16 USER NOTES 10 USER NOTES NEXO S.A. Tel: +33 3 44 99 00 70 Fax: +33 3 44 99 00 30 E-mail: info@nexo.fr Parc d’activité de la Dame Jeanne F-60128 PLAILLY nexo-sa.com...

This manual is also suitable for:

Geom1012-iGeom1025-i
