DP2658-01-DI

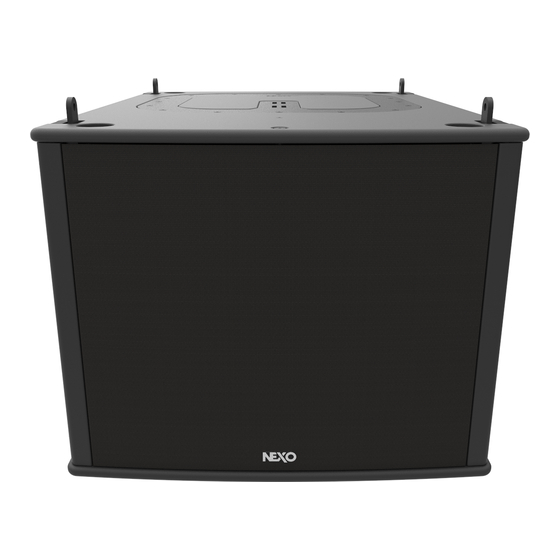

MSUB15
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSUB15 and is the answer not in the manual?

Questions and answers

Related Manuals for Nexo MSUB15

Summary of Contents for Nexo MSUB15

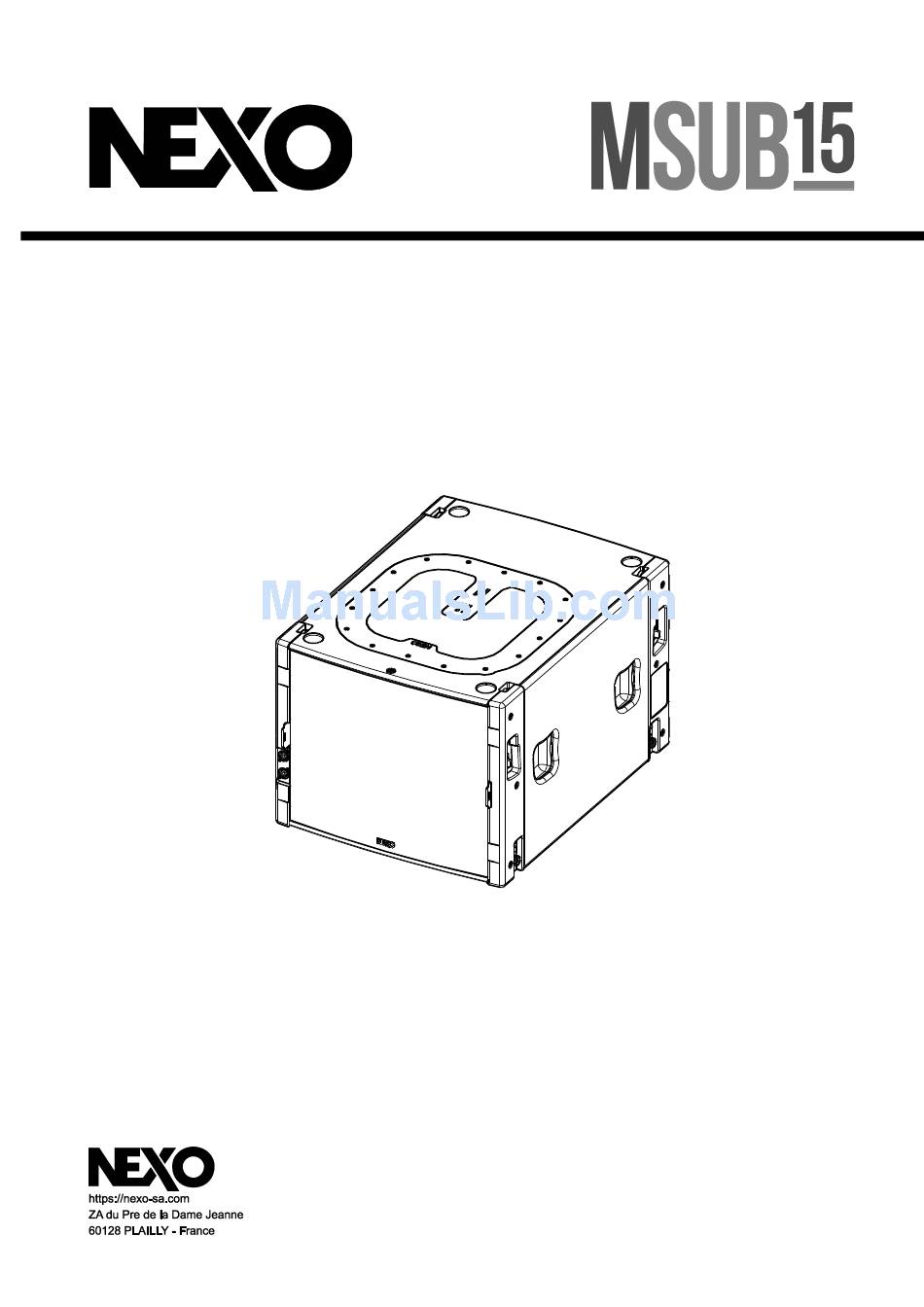

  • Page 1 DP2658-01-DI MSUB15 User Manual...

  • Page 2: Table Of Contents

    Page 2/16 CONTENTS CONTENTS CONTENTS ................................. 2 WARNINGS ................................. 3 MSUB15 RIGGING ..............................4 MSUB15 - ACCESSORIES ............................5 DESCRIPTION ................................7 SETTING RANGE ..............................7 ARRAY EQ................................. 12 MAINTENANCE ............................... 13 TECHNICAL SPECIFICATIONS ..........................15 10 USER NOTES ................................16...

  • Page 3: Warnings

    Do not open the speaker, do not try to disassemble it neither to modify it in any way. The system doesn’t include any user-repairable part. If the system seems to be malfunctioning or damaged, stop using it at once and have it repaired by a NEXO qualified technician.

  • Page 4: Msub15 Rigging

    Lower semi-auto lock system At each lower corner, you have a semi-auto lock system.  Pull the knob in OPEN position.  Pull the lever up to lock the 2 MSUB15 together once in place.  Proceed the same way for the disassembly.

  • Page 5: Msub15 - Accessories

    All MSUB15 accessories are specifically rated in agreement with structural computations. Never use other accessories – including push-pins – when assembling MSUB15 cabinets than the ones provided by NEXO: NEXO will decline responsibility over the entire MSUB15 accessory range if any component is purchased from different supplier.
  • Page 6 Page 6/16 MSUB15 - ACCESSORIES VNT-GSTKM10S – VNT-GSTKM10L VNT-MINISTACK - Rated for a maximum of 3 GEOM10 on the top of MSUB15. MST-WBMSUB15 MST-COVMSUB15: Cover for 1x MSUB15 MST-2CASEMSUB15: Flight case for 2x MSUB15...

  • Page 7: Description

    MSUB15-I and MSUB15-I-PW: for fixed installations (see user manual MSUB15-I) Connectors: MSUB15: 2 connectors panels (one in front and one at back) with 2 NL4 sockets, the 4 pins of the 2 sockets are connected in parallel within the enclosure.
  • Page 8 Page 8/16 SETTING RANGE « OMNI » Assembly « CARDIO » Assembly  With 1 to 3 GEOM10 o For these configurations, crossover frequency 85Hz is recommended (85 Hz also for pour GEOM10).
  • Page 9 Page 9/16 o For stack configuration using MSUB15 in OMNI or CARDIO mode with 1 Back and 2 Front and GEOM10 on top of them, cross over 85Hz is recommended (85 Hz also for GEOM10). A small overlap could have impact if needed, for example (MSUB15 120 Hz and GEOM10 75 Hz);...
  • Page 10 For long throw stacking application, up to 6 GEOM10, crossover 85 Hz is recommended (also for GEOM10).  With 7 to 12 GEOM10 o For very long throw application, with flowned or stacked MSUB15, recommended MSUB15 cardioid mode, cross over MSUB15 95 HZ and 12 GEOM10 cross over 75Hz for maximum impact.
  • Page 11 Minimum phase setup not compatible with others. o Used for high power stage Monitor, DJ Monitor, Drum Fill, Stack side. o Always use same cross over between GEOM10 and MSUB15, no overlap possible without doing phase adjustment by yourself.

  • Page 12: Array Eq

    Page 12/16 ARRAY EQ ARRAY EQ The ArrayEQ allows to adjust the system frequency response in its lower range (see curves below, with different ArrayEq values):...

  • Page 13: Maintenance

    MAINTENANCE Page 13/16 MAINTENANCE 8.1 Grille changing Remove 8 screws (TX25) on the side, top and below to remove the Remove 6 screws (Tx30) and the bumper. grille. 8.2 Haut-parleur 15’’ Remove 8 screws (TX25), use a TX25 wrench to unscrew the 2 Remove 16 screws (Tx25) to remove the trap.

  • Page 14: Spare Parts

    05MS15CATAVR-PW Bumper FR White (with screws) 05MS15CATARR Bumper RR Black (with screws) 05MS15CATARR-PW Bumper RR White (with screws) 05MSUB15LEX Lexan MSUB15 05FTCC38X10 Plastic pad 38x10 (with screw) 05MS15CATARL Bumper RL Black (with screws) 05MS15CATAR-PW Bumper RL White (with screws) 05MSUB15LEX-WAR...

  • Page 15: Technical Specifications

    TECHNICAL SPECIFICATIONS Page 15/16 TECHNICAL SPECIFICATIONS MSUB15 NEXO E WITH LECTRONICS 40Hz – 120Hz Frequency range (±6dB) Sensibility (1W / 1m) 101dB SPL Nominal Peak SPL Level (1m) 136dB Peak Operating voltage 40 Vrms (180 Vpeak) Crossover Frequency 40-65 ; 40-75 ;40-85 ;40-95 ;40-120 Hz 8Ω...

  • Page 16: User Notes

    Page 16/16 User notes 10 U SER NOTES France Nexo S.A. Parc d’activité de la Dame Jeanne F-60128 PLAILLY Tel: +33 3 44 99 00 70 Fax: +33 3 44 99 00 30 E-mail: info@nexo.fr https://nexo-sa.com...
